GAINWISE TECHNOLOGY
MANUAL
DOOR INTERCOM
SS1603-08
3G AUDIO INTERCOM
(ACCESS CONTROL SYSTEM)
For your protection, read these instructions completely
And keep them for future reference.
SS1603-08 3G Audio Intercom (E5)
07262019
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS1603-08 and is the answer not in the manual?

Questions and answers

Summary of Contents for GAINWISE TECHNOLOGY SS1603-08

  • Page 1 GAINWISE TECHNOLOGY MANUAL DOOR INTERCOM SS1603-08 3G AUDIO INTERCOM (ACCESS CONTROL SYSTEM) For your protection, read these instructions completely And keep them for future reference. SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTION ..............3 SS1603-08 3G AUDIO INTERCOM INTRODUCTION ..........4 SS1603-08 3G AUDIO INTERCOM WITH ACCESSORIES ........5 INSTALLATION....................... 5 SS1603-08 3G audio intercom Unit ................5 Wiring Diagram ......................7 LED Indicator ....................... 8 SS1603-08 3G AUDIO INTERCOM OPERATION ............
  • Page 3: Important Safety Instruction

    Thank you for purchasing SS1603-08 3G audio intercom. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problem or question should arise. IMPORTANT SAFTY INSTRUCTIONS When using this SS1603-08 3G audio intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury.
  • Page 4: Ss1603-08 3G Audio Intercom Introduction

    SS1603-08 3G AUDIO INTERCOM INTRODUCTION SS1603-08 3G audio intercom system is designed for multiple family complexes. It can dial up to 8 different families. When a visitor arrives at your property they will press call button on the intercom which will then connect to a phone number, landline or mobile (up to 3 numbers per resident or family,...
  • Page 5: Ss1603-08 3G Audio Intercom With Accessories

    SS1603-08 3G AUDIO INTERCOM WITH ACCESSORIES Item Description Q’ty SS1603-08 3G audio intercom Power adapter External 3 meter antenna Mounting Bracket for antenna Operational manual SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 6: Installation

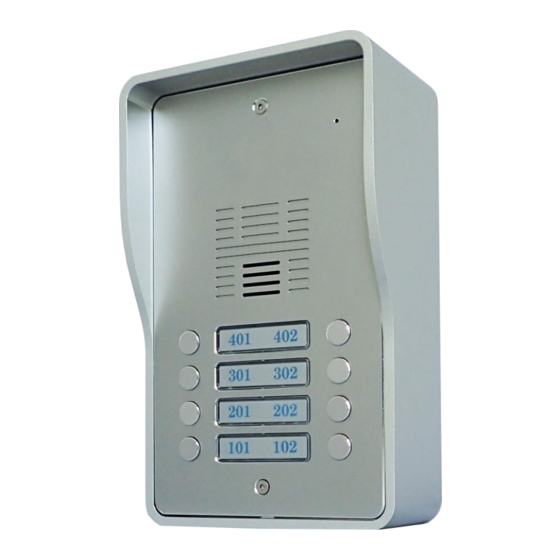

    INSTALLATION This 3G audio intercom is suitable for both flush and surface mounting. SS1603-08 3G AUDIO INTERCOM UNIT Microphone Speaker Call Button SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 7: Wiring Diagram

    Wiring Diagram SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 8: Led Indicator

    6. Allow 20~30 seconds for the unit to boot up and detect the network. Once successful connection has been made, the unit will sound a confirmation tone and the status LED will begin flashing. SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 9: Ss1603-08 3G Audio Intercom Operation

    SS1603-08 3G AUDIO INTERCOM OPERATION Enter System Menu There are three different modes under system menu. Listener monitoring mode Access control mode Programming mode To gain access to the system menu via dial in, follows these steps: Call the telephone number of the 3G audio intercom...
  • Page 10 SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 11: Enter Listener Monitoring Mode

    To make changes on settings please refer to the user commands. To end programming mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 12: Programming

    SMS format: (delete 2&3 phone numbers from a call button) *12*1234#1082*#1083*# User command code CORRECT SMS format: *12*1234#108105857235#10820865682554#10830862235644# SMS reply: *12*1234#108105857235#10820865682554#10830862235644# OK User command code ERROR (user command error) SMS format: *12*1234#108105857235#190865682554#10830862235644# SMS reply: 108105857235#190865682554# Error SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 13: Access Control Options

    * For Caller ID recognition to open the door or gate you need to program the mobile numbers and country code into the memory before using. SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 14 *36*5678# (trigger relay 2) *33*5678# (trigger relay 1) *37*5678# (hold relay 2) *34*5678# (hold relay 1) *38*5678# (release relay 2) *35*5678# (release relay 1) *This is for door open option for telephone numbers not stored. SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 15: Check 3G Signal Strength

    SMS programming. Example: Program a mobile number as an administrator number via SMS Mobile number: 0865682554 Command to use *12*1234#74 [Admin number]# SMS format *12*1234#740865682554# To delete the Admin number *12*1234#74*# SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 16: Check All Logged Door Access Events Via E-Mail Or Sms

    ( Doesn’t support Gmail) Type: 1= normal / 2= SSL/TLS Command code Example : *42*1234# recipient e-mail address, recipient name, carbon copy e-mail address, carbon copy name# Recipient & Carbon copy settings SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 17 Delete mobile number for receiving *12*1234#85*# logged events via SMS Clock Sync- auto time calibration after *12*1234#86[ SIM phone number held within the intercom power fail Delete the phone number for clock *12*1234#86*# Sync SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 18 *12*1234 # [command Code1] # [command Code 2] # [command Code3] #..Example: Mobile number for receiving logged events 0907967223 SIM phone number held within the unit 0948778458 *12*1234#841#850907967223#860948778458# Send *44*1234# to check logged events Log format: SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 19 Password mode access option 5678 Hold Relay 2 *37* [ password ] # To hold relay to keep door 5678 opened Release Relay 2 *38* [ password ] # To release relay for door close 5678 SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 20 2.Tel.No 2 ( dial out) 3.Tel No.3 123456: relay 1 and 2 trigger/ hold/ release codes ● (Only 0~9、* are available) SMS data error SMS Data Error ● Function code error Function Code Error SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 21: User Commands

    Set day time schedule to 57 [Day]# Day : 00~60 day time schedule make a call or SMS 00= no call or SMS Making a scheduled call or 58 [Type] # Type:1 or 2 1=SMS 2=Call SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 22 Y= phone number 1,2 or 3 None [ Y ] [ phone number ] # (SMS contact number) Max 3 phone numbers phone No.:3~15 digit codes Enable or disable IN1 907[X]# X=0 (disable) X=1 (enable) SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 23 SMS Reply content: Access Control mode(SMS) Send SMS notification 947[X]# Access Control mode(RING) when door is triggered Talking mode Listener Monitoring Mode PIN code Ring In [not authorized CID] Reset 999# reset default None SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 24: How To Reset The Hardware When You Forget Your Password

    HOW TO RESET THE HARDWARE WHEN YOU FORGET YOUR PASSWORD Keep both reset and engress buttons pressed Release all buttons after you hearing continuous “ Dou” tones Hardware reset is done SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 25: How To Change The Name Plate

    HOW TO CHANGE THE NAME PLATE SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 26: Quick Programming Via Sms And Operation

    *33*5678# (trigger relay 1) *37*5678# (hold relay 2) *34*5678# (hold relay 1) *38*5678# (release relay 2) *35*5678# (release relay 1) *20# (check reception level) *21# (check dial- in numbers) *22# (check gate / door status) SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 27: Troubleshooting (Q&A)

    Q. There is no audio from the gate, but the person at the gate can hear ok. A. This can be due to low reception. -Check reception level by *20#. -Change SIM card if necessary to another network which may have better coverage. -Purchase a high gain antenna. SS1603-08 3G Audio Intercom (E5) 07262019...
  • Page 28: Specifications

    180 (H) x 109 (W) mm Design and material Vandal resistant / die cast aluminum Length of antenna 3 meters cable Humidity Less than 80% RH -20℃ to 50℃ Operating Temperature Operating Current Maximum 250 mA, Typically 55mA SS1603-08 3G Audio Intercom (E5) 07262019...
