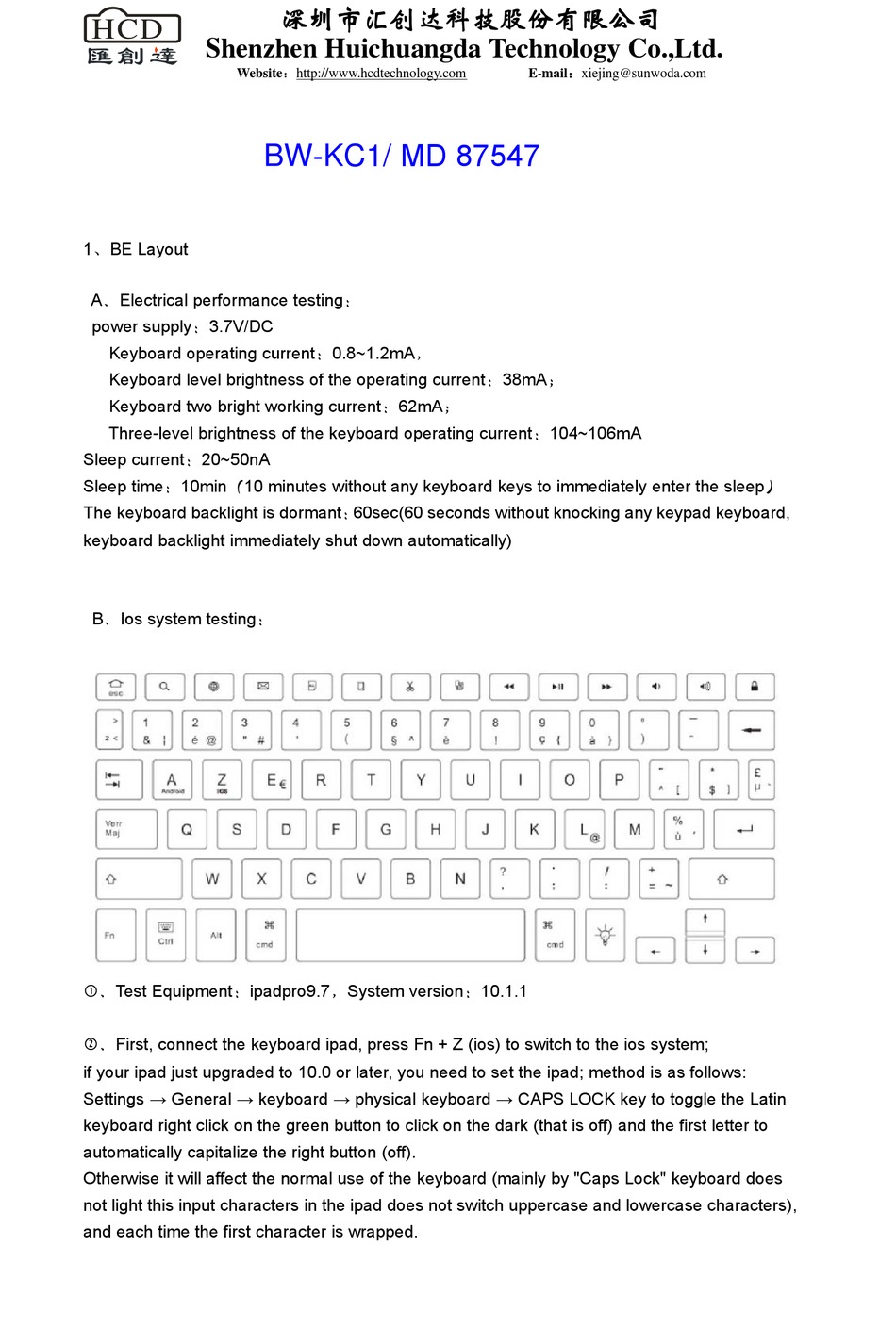

HCD BW-KC1 Quick Start Manual

HCD
Shenzhen Huichuangda Technology Co.,Ltd.
Website：http://www.hcdtechnology.com
1、BE Layout
A、Electrical performance testing：
power supply：3.7V/DC
Keyboard operating current：0.8~1.2mA，
Keyboard level brightness of the operating current：38mA；
Keyboard two bright working current：62mA；
Three-level brightness of the keyboard operating current：104~106mA
Sleep current：20~50nA
Sleep time：10min（10 minutes without any keyboard keys to immediately enter the sleep）
The keyboard backlight is dormant： 60sec(60 seconds without knocking any keypad keyboard,
keyboard backlight immediately shut down automatically)
B、Ios system testing：
、Test Equipment：ipadpro9.7，System version：10.1.1
、First, connect the keyboard ipad, press Fn + Z (ios) to switch to the ios system;
if your ipad just upgraded to 10.0 or later, you need to set the ipad; method is as follows:
Settings → General → keyboard → physical keyboard → CAPS LOCK key to toggle the Latin
keyboard right click on the green button to click on the dark (that is off) and the first letter to
automatically capitalize the right button (off).
Otherwise it will affect the normal use of the keyboard (mainly by "Caps Lock" keyboard does
not light this input characters in the ipad does not switch uppercase and lowercase characters),
and each time the first character is wrapped.
深圳市汇创达科技股份有限公司
BW-KC1/ MD 87547
E-mail：xiejing@sunwoda.com
