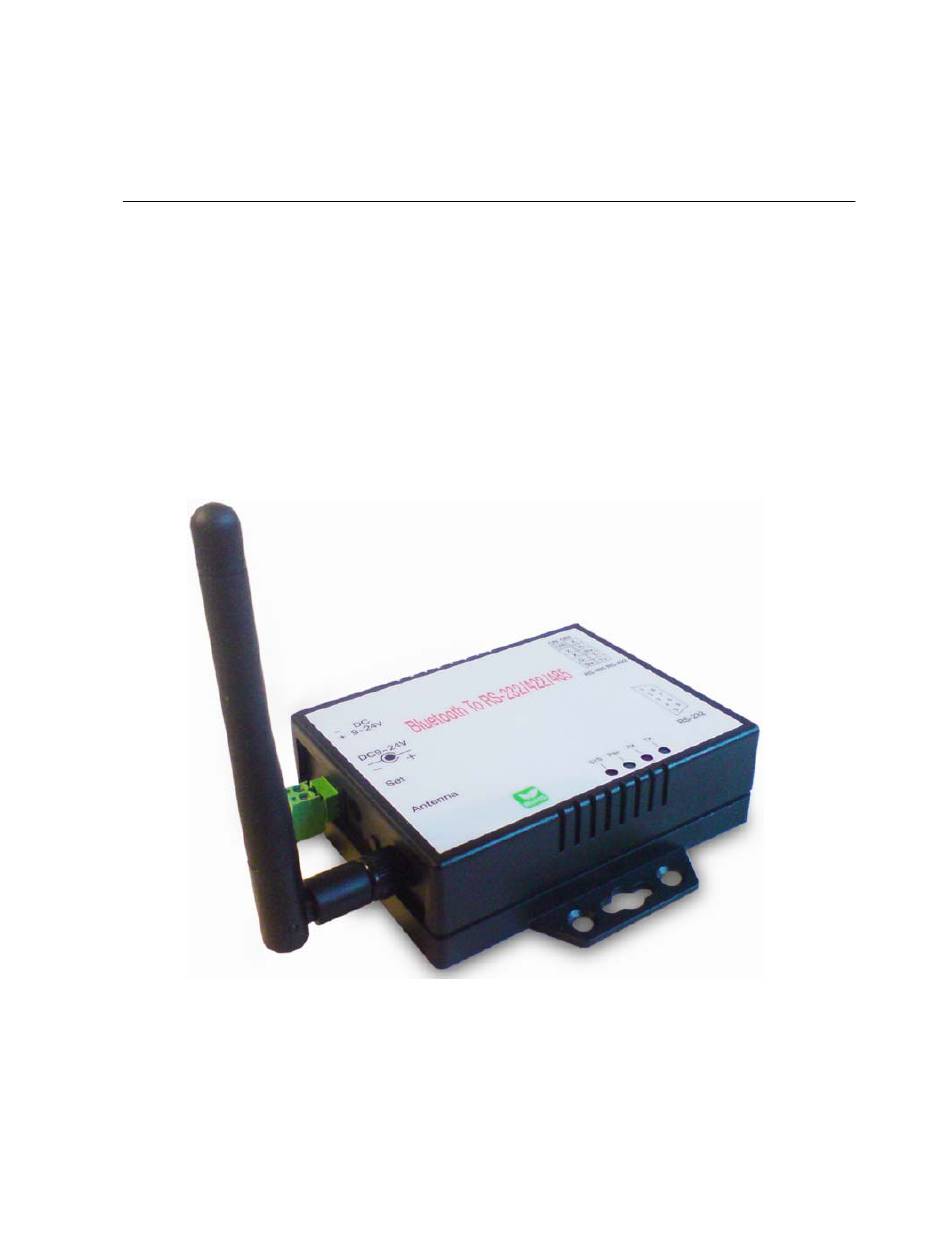

- Page 1 Bluetooth to RS-232&RS422/485 BS-101 Bluetooth Adapter Operation Manual First Edition, May 2008 HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar...
-
Page 2: Table Of Contents
Appendix A - Pin Outs and Cable Wiring …………… 16 DC Power Outlet ………………………………………… RS-232 Pin Assignment ………………………………… RS-232 Wiring Diagram ………………………………… RS-422/485 Pin Assignment ……………………………… 17 RS-422 Wiring Diagram ………………………………… RS-485 Wiring Diagram ………………………………… HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar... -
Page 3: Introduction
Introduction Thank you for your purchase of BS-101 as the Bluetooth To Serial Adapter. Featuring Bluetooth wireless technology, it is for replacement of standard RS232 or industrial RS422/485 cable perfectly, with standard RS232 and industrial RS422/485 interfaces, so can be easily adopted for industrial machines with RS232 or RS422/485 interfaces. -
Page 4: Package Checklist
Package checklist BS-101 product is shipped with the following items: 1 unit of BS-101 Bluetooth to RS232 / 422 / 485 converter 1 unit of Power Adaptor (9V DC, 200mA) User Operation Manual Software CD NOTE: Notify your sales representative if any of the above items is missing or damaged HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar... -
Page 5: Product Specification
Power : 9V DC / 200mA, Consumption 150mA Led Lamp : SYS (red), Pair (green), Rx (red), Tx (green) Environment : Operating Temperature: 0℃〜60℃ Storage Temperature : -25℃〜70℃ HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar... - Page 6 Dimensions : 90 * 65 * 27 mm ( W * D * H ) WEIGHT : 200 gm Regulatory Approvals : EMC : FCC Class A, CE Class A WARRANTY : 1 year RoHS HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar...
-
Page 7: Product Panel Views Description
LED Indicators DC-In Power Outlet The BS-101 Bluetooth to RS232 / 422 / 485 is powered by a single 9V DC (Inner positive/outer negative) power supply and 200mA of current. A suitable power supply adapter is part of the package. Connect the power line to the power outlet beside of antenna connector and put the adapter into the socket. -
Page 8: Antenna Connecter
Serial I/O Port of RS232&RS422/485 To connect the serial data cable between the converter and the serial device. Follow the parameter setup procedures to configure the converter (see the following chapters ). HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar... -
Page 9: Terminator
1 & 2 to opposite position. Set Button Set Button The purpose is for synchronizing between BS-101 device and “BT RS232 Config Tool” software. After finishing the parameter setup of “BT RS232 Config Tool” software, when you click the icon of “Connect” in “BT RS232 Config Tool”... -
Page 10: Led Indicators
Data received indicator (When data are received from the network, the LED will be on.) TX (Green)： Data sent indicator (When data are sent out to the network, the LED will be on.) HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar... -
Page 11: Hardware Installation
“Connect” in tool software and press the set button of BS-101 Bluetooth adapter immediately. 3. The green LED will be turn into on. The BS-101 Bluetooth adapter is active. There are two types of RS232 devices in field. One is DTE - Data Terminal Equipment (such as a PC) and the other one is DCE - Data Communication Equipment (such as a Modem). -
Page 12: Bt Rs232 Config Tool Installation & Setup
When setting up BS-101 adapter for the first time, you have to install and run “BT1.exe” as “BT RS232 config tool” first in your computer device. The utility CD is enclosed in the device box. Before you use BS-101 adapter, you have to pair it with another BS-101 device. -
Page 13: Bs-101 Config Tool Parameters Configuration
Local address will be automatically changed after finishing the parameter configuration to apply. D. Peer Address Peer address is for pairing device to communicate in a same network address. HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar... - Page 14 “Slave” and the device will be play like a DCE - Data Communication Equipment (such as a Modem) You can setup your BS-101 device as what type of the RS232 device you are going to connect in DTE or DCE mode to work with it.
-
Page 15: Apply "Connect
The icon of “Connect” is changed to “Disconnect” and two icons will be turned into active mode on the bottom of the BT RS232 Config Tool screen. HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar... -
Page 16: Apply "Write
To click the item of “Read”, the meaning is to load all parameters as last time saving from the “BT RS232 Config Tool”. The local address will be updated the real device address at first time. HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar... -
Page 17: Appendix A - Pin Outs And Cable Wiring
□ Serial Device BS-101 2 RX 3 TX 3 TX 2 RX 5 GND 5 GND (Flow Control) 4 DTR 6 DSR (Flow Control) 6 DSR 4 DTR HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar... -
Page 18: Rs-422/485 Pin Assignment
□ RS-422 Wiring Diagram □ Serial Device BS-101 3 R+ 4 R- 1 T+ 2 T- □ □ RS-485 Wiring Diagram □ Serial Device BS-101 1 D+ 2 D- HIMAQ S.R.L - Tel.: (011) 4709-3505 - Mail: himaq@himaq.com.ar - WEB: http://www.himaq.com.ar...
