Delmar Reynolds CardioDirect 12-S with CardioCollect Interface
To setup Tango M2 with the CardioDirect stress system, simply follow the directions below.

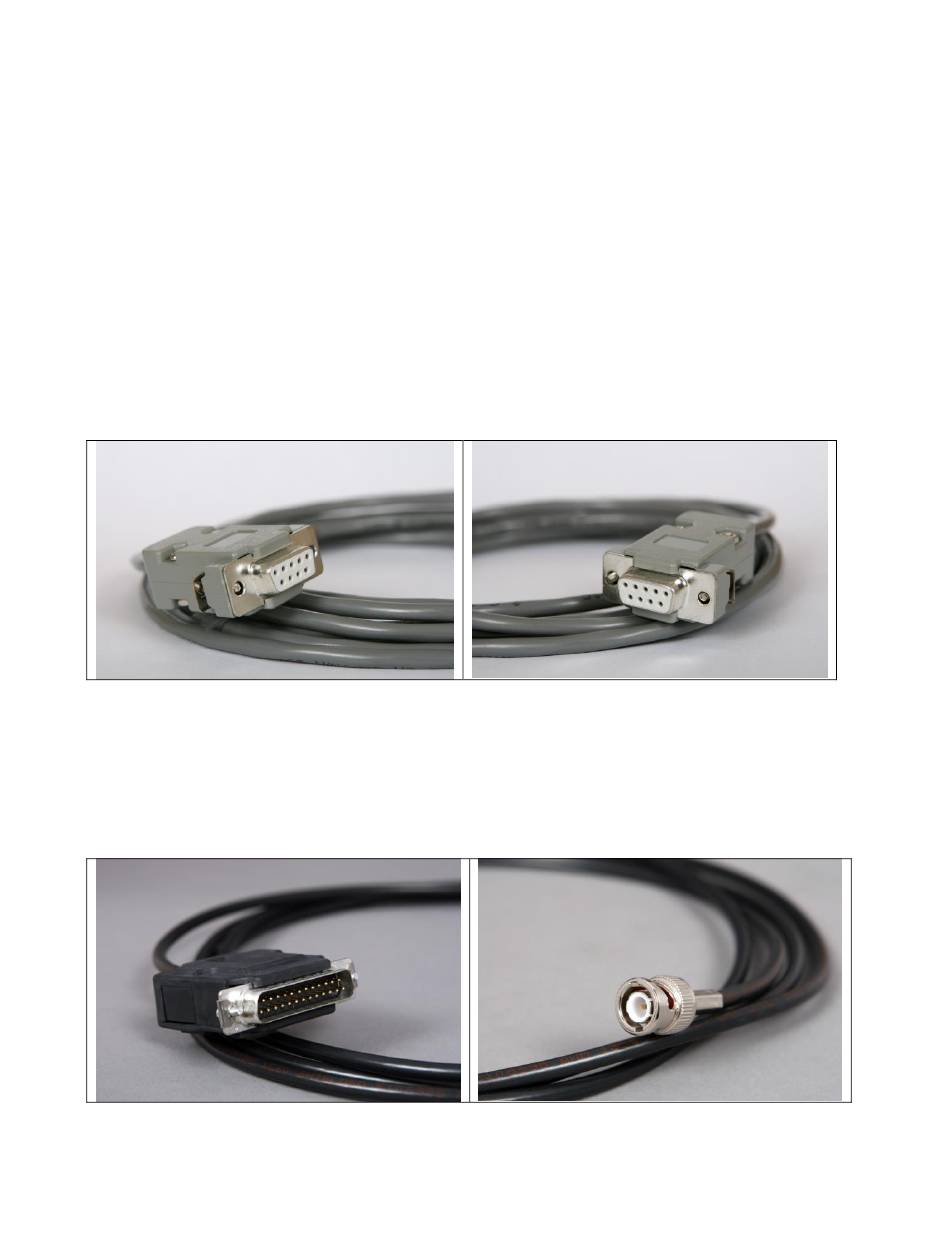

1. Verify Correct RS-232 and ECG Trigger Cables

• RS-232 Cable – used to communicate with the CardioDirect. This cable enables the CardioDirect to
prompt Tango M2 when it needs a BP measurement, and allows the Tango M2 BP reading to be
transferred to the CardioDirect display and reports.
o SunTech Part Number = 91-0013-00
o Connection Ends:
CardioDirect Connection
9 pin female
• ECG Trigger Cable – provides the ECG signal from the CardioDirect to the Tango M2.
o SunTech Part Number = 91-0066-00
o Connection Ends:
CardioDirect Connection
25 pin male
Delmar Reynolds CardioDirect with CaridoCollect Tango M2 Interface Notes
Tango M2 Interface Notes
Tango M2 Connection
9 pin female
Tango M2 Connection
BNC male
Page 1 of 4
