Summary of Contents for Fitfaith F380 Series
- Page 1 F380 series HANDHELD PULSE OXIMETER USER’S MANUAL VER 1.0 Shenzhen Fitfaith Technology Co.,Ltd 2014/12...
-
Page 2: Table Of Contents
Chapter 7. Data Transfer Procedure........................20 Chapter 8. Maintenance............................21 8.1 System Check.............................. 21 8.2 General Cleaning............................21 8.3 Disinfection..............................22 8.4 Warranty...............................23 8.5 Disposal............................... 23 Chapter 9. Accessories............................24 sensor................................. 24 Order.................................. 24 Chapter 10. Appendix a Specifications........................25 Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 3: Chapter 1. Instructions
The customer is responsible for freight charges when this product is shipped to the manufacturer for service (including any relevant customs fees or other freight related charges). Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 4: Chapter 2. Safety Information
The oximeter is capable of interfering with the proper performance of MRI, and MRI is capable of interfering with the measurement accuracy of the oximeter. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 5: Cautions
The oximeter should only be maintained by personnel approved by our company. Before using the oximeter on patients, the user should be familiar with its operation. 2.3 Notes Important! Before use, carefully read this manual, all safety information and specifications. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 6: Chapter 3. General
Chapter 3. General 3.1 Introduction The F380 series oximeter is a non-invasive, handheld patient Oximeter. It operates on alkaline or rechargeable battery power supply. It is compact, small, light, and easy for learning and handling. It is suitable for spot-checking and short-time monitoring adult and child patients. It is widely used in the hospital’s operation room, ICU, clinic section office, out-patient department,... -
Page 7: Appearance

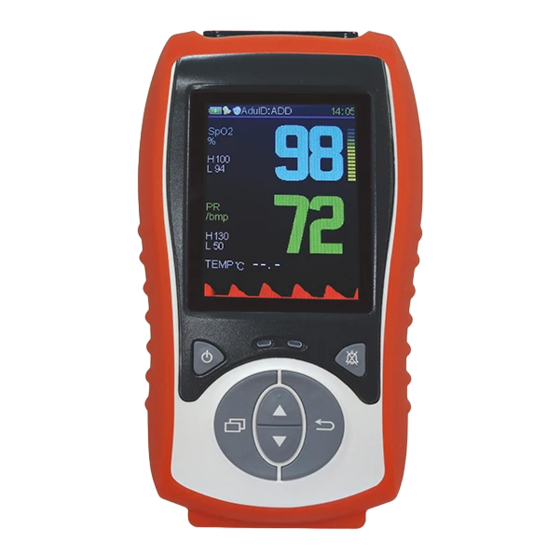

Standard 4X AAA 1.5V Alkaline bаttеrу or rechargeable Li battery is available for power supply 3.4 Appearance Figure 3-1 Front Panel Figure 3-2 Back Panel Figure 3-3 Top Side Panel Figure 3-4 Right Side Panel Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... - Page 8 It can install a steel bracket Battery compartment It use 4 AAA Alkaline battery or 3.6V Li battery SpO2 probe socket It connects SpO2 sensor. Temperature sensor socket USB port It connects the computer for data transfer. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd...
-
Page 9: Chapter 4. Installation
Press the power button and hold for more than 1 second to turn on the Oximeter, the LCD display lights up on the front panel and the screen displays SpO2 and PR parameter monitoring interface. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 10: Chapter 5. Display And Operation
The screen will displays the monitoring parameters when the oximeter is turned on. If the SpO2 sensor is connected to monitor a patient’s SpO2, the LCD screen displays the measurements of SpO2, PR, bargraph, plethysmogram, and system information, as shown in figure 5-1. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... - Page 11 Alarm limit value of SPO2, It will sound prompt if the test result beyond these values. PR Alarm limits Alarm limit value of PR, It will sound prompt if the test result beyond these values. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd...
-
Page 12: Prompt Function
Then press button to confirm the parameter setting and return to the submenu. And return the main menu with pressing the exit button. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... - Page 13 Then press button to confirm the parameter setting and change to another parameter. Pressing the button to return the submenu. Finally return the main menu with Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd...
- Page 14 Then press button to confirm the choice of letter. The signal stand for delete and confirm function. Finally return the main menu with pressing the button. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd...
- Page 15 Press the button for parameter setting. Use & button to increase or decrease the value of parameter. Then Press button to confirm the parameter setting. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd...
- Page 16 (SpO2&PR), the maximum record will up to 360 hours. 2. The user also can upload the storage data through USB port to the computer, and it also can review the data with software in PC. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd...
-
Page 17: Chapter 6. Spo2 Monitoring
Turn on the monition. The LCD screen will display the parameter monitoring screen. Attach the sensor to an appropriate site of the patient’s finger. The readings will be displayed on the LED screen a moment later. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 18: Measurement Limitations
Loss of pulse signal can occur in the following situation: The sensor is too tight; There is excessive illumination from light sources such as a surgical lamp, a bilirubin lamp, or sunlight; Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 19: Precautions
If not use it, you should coil up the probe and cable into a loose circle. If the wire inside the cable is tensely pulled, it may cause mechanical damage to the probe and cable. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 20: Chapter 7. Data Transfer Procedure
The computer will indicate the information of finding a new disk driver. Then you can find a file named oxmieter.bin in the removable disk. You can use software oximeter-viewer in the CD to view the measured result at your computer. Figure 7-1 Data Transfer Interface Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 21: Chapter 8. Maintenance
Drying off excess cleaning solution before cleaning the equipment is recommended. WARNING 1. Power off the oximeter and stop charging the battery before cleaning. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 22: Disinfection
The equipment should be cleaned prior to disinfection. Recommended disinfection material: alcohol based (Ethanol 70%,Isopropanol 70%), and aldehyde based. The probe cables may be disinfected with hydrogen peroxide (3%) or isopropanol (70%). Active Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 23: Warranty
To avoid contaminating or infecting personnel, the environment or other equipment, make sure you disinfect or decontaminate the device appropriately before disposing of it in accordance with your country’s law for equipment containing electrical and electronic parts. Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 24: Chapter 9. Accessories
Model No. Description S901/S901B Adult finger clip SpO2 sensor S902 Adult Soft tip SpO2 sensor S903 Child finger clip SpO2 sensor S904 Child soft tip SpO2 sensor S905 Neonate Wrap SpO2 sensor Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... -
Page 25: Chapter 10. Appendix A Specifications
Operation: 5℃-40℃; Transportation and storage: -20℃-55℃ Humidity Operation: 15%-85%(no condensing); Transportation and storage: 10%-95%(no condensing) Altitude Operation: 70KPa-106 KPa; Transportation and storage: 50KPa-106 KPa Parameter Specifications SpO2 Patient: adult, child Range: 35%-100% Resolution:1 % Accuracy: (70%-100%) Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd... - Page 26 Handheld Pulse Oximeter 2% Normal 3% Motion or low perfusion Below 70% Not specified Range: 25bpm-250bpm Resolution: 1bpm Accuracy: (25～250BPM) 2bpm Normal 3bpm Motion or low perfusion Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd...
- Page 27 Patient contact materials have underdgone extensive biocompatibility testing. Further information is avaliable upon request. Follow location guidelines for disposal of medical waste. Date of manufacture. Refer to the instruction manual /booklet Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd...
- Page 28 Building D1, Tangwei Industrial Park, Donglong Road, Guangming New District, ShenZhen, China phone: (86)755-0755-29544253-804 Email: corey@fitfaith.com.cn http://www.fitfaith.com.cn Lotus Global Co.,Ltd 1 Four Seasons Terrace West Drayton, Middlesex London, UB7 9GG United Kingdom Phone:0044-20-75868010 Fax: 0044-20-79006187 Copyright reserved by Shenzhen Fitfaith Technology Co., Ltd...
