AVAWING PTG30209FT Owner's Manual

Propane fire pit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item# PTG30209FT
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage,personal injury,or loss of life.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner's information manual provided with this appliance.
For assistance or additional information consult a qualified installer, services agency or
the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
OWNER'S MANUAL
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
•
Extinguish any open flame.
•
If odor continues, leave the area immediately.
•
After leaving the area, call your gas supplier
•
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of
this or any other appliance.
WARNING
Installation and service must be performed
by a qualified installer, service agency,
or the gas supplier.
For outdoor use only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTG30209FT and is the answer not in the manual?

Questions and answers

Summary of Contents for AVAWING PTG30209FT

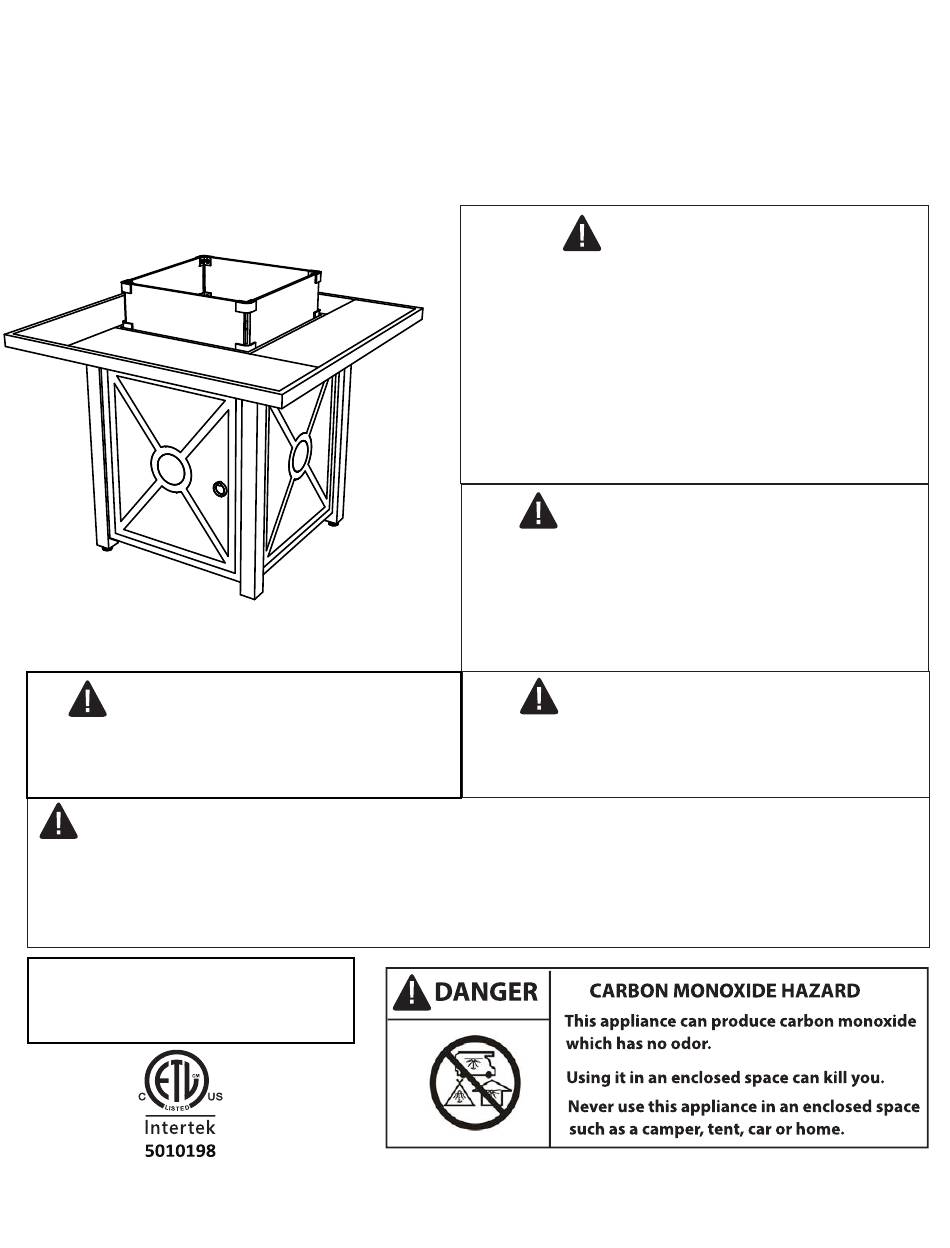

  • Page 1 OWNER’S MANUAL Item# PTG30209FT DANGER FIRE OR EXPLOSION HAZARD If you smell gas: Shut off gas to the appliance. • Extinguish any open flame. • If odor continues, leave the area immediately. • After leaving the area, call your gas supplier •...

  • Page 2: Safety Information

    SAFETY INFORMATION Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so may result in a fire, explosion, injury or death. WARNING • The installation of this unit must adhere to local codes or Propane Storage and Handling Code, CSA B149.2.
  • Page 3 • Combustible material should not be within 60 inches of the top of the unit, or within 48 inches around the entire unit. • Keep the appliance area clear and free fr vapors and liquids. • • Do not add water into the unit. •...
  • Page 4 SAFETY INFORMATION Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied directly by us . Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate the appliance.

  • Page 5: Part List

    PART LIST PICTURE DESCRIPTION ITEM# Table Leg Table Leg Table Leg Table Leg Panel Panel Panel Door Tank Holder/Base Contorl Knob Table Lid Fire Table with Burner...
  • Page 6 PART LIST DESCRIPTION PICTURE ITEM# Screw(M6*12MM) 17PCS Screwdriver M6 Washer 20PCS 4PCS Screw(M6*25MM) 8PCS Glass clamp Glass 4PCS 16PCS...

  • Page 7: Assembly Instruction

    ASSEMBLY INSTRUCTION 1. Connect the tank holder/base (I) With table Lets(A/B/C/D) by 4pcs screws (R) and 4pcs M6 washers(Q) 2.Connect paenl (E,F,G)with table legs(A,B,C,D) by 12pcs screws (O) and 12pcs M6 washers(Q).
  • Page 8 ASSEMBLY INSTRUCTION 3. Place the table(L) upside down on a soft surface. 4 .Fasten the door panel (H) to the Table leg (D) with screws (O).
  • Page 9 ASSEMBLY INSTRUCTION 5.Attach the assembled base to the bottom of top using 4pcs of screws (O), and 4pcs M6 washers(Q), make sure the panel (L) faces the valve stem. Tighten the Bolts. 6.Put the table lid.
  • Page 10 Assembly Assembling the glass Unscrew all preassembled screws on the glass clamps □ rest two Then, assemble one glass panel to glass panel . Repeat for the glass panels. the other Then, assemble the two glass panel pieces together with the final glass clamps as shown below. Inserting the glass □...
  • Page 11 Place propane gas tank (not included) into the metal stand (I). Make sure the gas tank sits on the metal stand (I) completely. Turn the cylinder valve on the tank clockwise to close the propane tank. Attach the preassembled regulator from the table top (L) to the cylinder valve by turning the regulator coupling nut clockwise.

  • Page 12: Operation

    OPERATION Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off” position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles occur on any connection there may be a leak.

  • Page 13: Maintenance

    MAINTENANCE • Before performing any maintenance always disconnect propane gas tank. • Store your product indoors during winter months. Avoiding extreme cold temperatures will prevent from exposure damage. • Keep the heating item free and clear from combustible materials. • Visually inspect burner for obstructions and keep tank enclosure free and clear from debris. •...

  • Page 14: Troubleshooting

    TROUBLESHOOTING Problem Cause Solution Igniter pin and burner are wet Dry off with a soft cloth Igniter battery is incorrectly inserted Check which direction the battery is inserted Contact us. for a replacement part Igniter pin is broken Heating unit won’t light Electrode wire is loose or disconnected Reconnect wire to the igniter box located inside the fire pit behind the igniter box...
