Summary of Contents for DOORWORKS GDC6
- Page 1 GDC6 / GDC12 OVERHEAD DOOR OPERATOR Installation Instructions Owner’s Manual READ THIS MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION Installer: Permanently attach manual to the wall. DWOMU06A-4...
-
Page 2: Specification
Specification Electrical Rating GDC6 GDC12 Input AC 230V 50/60Hz Current Power ~200W Motor Type DC 24V Brush Max. capacity 600 Nmm 1000 Nmm Operation Lifting capacity 35kg Balanced Door Travel rate 150mm/s approx. Door Type Max. Door Size Travel/Force Adjustments... - Page 3 Read and Follow These Important Safety Instructions You will see Warning and Caution statements on the following Pages. Read and follow these safety instructions carefully. Failure to do so could result in serious personal injury or death. Warning means that severe injury or death may result from failure to follow instructions Caution means that property damage or injury may result from failure to follow instructions ...
-
Page 4: Product Features
Product Features Motor: Permanent Magnet Direct Current 24V DC Brush Motor. Opener Lights: Turn on and off automatically with 4.5 minutes illumination for your safety and convenience. Sensing System: A built-in sensing system detects obstructions during door operation. If in the Downward (close) travel mode, the Opener will sense an obstruction and reverse to the full open position. - Page 5 Door Test Before beginning installation of the operator please complete the following test to insure that your door is balanced and in good working condition. A poorly balanced door could cause severe personal injury and damage to the opener. Always have a qualified garage door service person make any needed adjustments and/or repairs to your door before proceeding with installation.
- Page 6 Components Identification and Inventory (11) Preinstalled on the rail (01) Power Head (02) Header Bracket (03) Door Bracket (04) Door Arm: Curved (05)C Rail Bracket (06)Rail Hanging Bracket (07)Rail-to-Head Bracket (08) Angle Bracket (09) Wireless Wall Button (10) Remote Control (11) Rail Assembly (a)Door Arm: Straight (b)Rope Knob (1 pcs)
- Page 7 Assembly 01 STEP 1. Remove packing materials. STEP 2. Place the rail support on the power head. Align rail and 1/4” -20Hex Flange Nuts (4) power head and slide rail over drive shaft & retaining lugs. Fasten with 4 nuts. Rail-to-Head Bracket Rail STEP 3.
- Page 8 Assembly 02 STEP 5. Pre-Drawn Hori- Make a centerline on door frame, and cross the previous zontal Line 1/2 Door Frame horizontal line. Fasten the cross point with screws. 1/2 Door Frame Header Bracket Pre-Drawn #12x1”Lag Screw Vertical Line STEP 6. 1/2 Door Panel Mount door bracket at the position of center of top panel with screws.
- Page 9 Assembly 03 STEP 09. Attach hanging bracket and angle bracket to the rail 5/16”Hex Head Machine Bolts STEP 10. Clevis Pin Short Hitch Pin Insert curved arm into door bracket using clevis pin short. Door Bracket Curved STEP 11. Flange Nut 5/16”-18 Straight Connect straight arm and curved arm and adjust to the required length.
- Page 10 Interface Photo Eye Selection Jumper off = Selected Ground Jumper on = Default, not selected Push Button Connecting Photo Eye Safety System (OPTIONAL) Inside Mounting Photo Eye Safety System Inside Garage Garage Place the Photo Eyes facing each other on each side of the garage door, as shown in Fig.1.
-
Page 11: Travel Limit Adjustment- I. Up Limit
Travel Limit Adjustment— I. UP Limit WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - DO NOT adjust force to compensate binding or sticking of the garage door. Call a qualified garage door service person to make necessary adjustments in case of binding. - DO NOT increase force beyond minimum force required for closing the door. - Page 12 Travel Limit Adjustment— II. DOWN Limit WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - DO NOT adjust force to compensate binding or sticking of the garage door. Call a qualified garage door service person to make necessary adjustments in case of binding. - DO NOT increase force beyond minimum force required for closing the door.
-
Page 13: Auto Force Adjustment
Auto Force Adjustment WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - DO NOT adjust force to compensate binding or sticking of the garage door. Call a qualified garage door service person to make necessary adjustments in case of binding. - DO NOT increase force beyond minimum force required for closing the door. -
Page 14: Testing The Safety Reverse System
Testing the Safety Reverse System Warning: Failure to Test Reversing System Could Result in Death or Serious Injury. Test This System Once A Month. To test the Opener Reversing Feature at floor level place a solid object 5cm thick on the ground so that the center of the door will come into contact with it. -

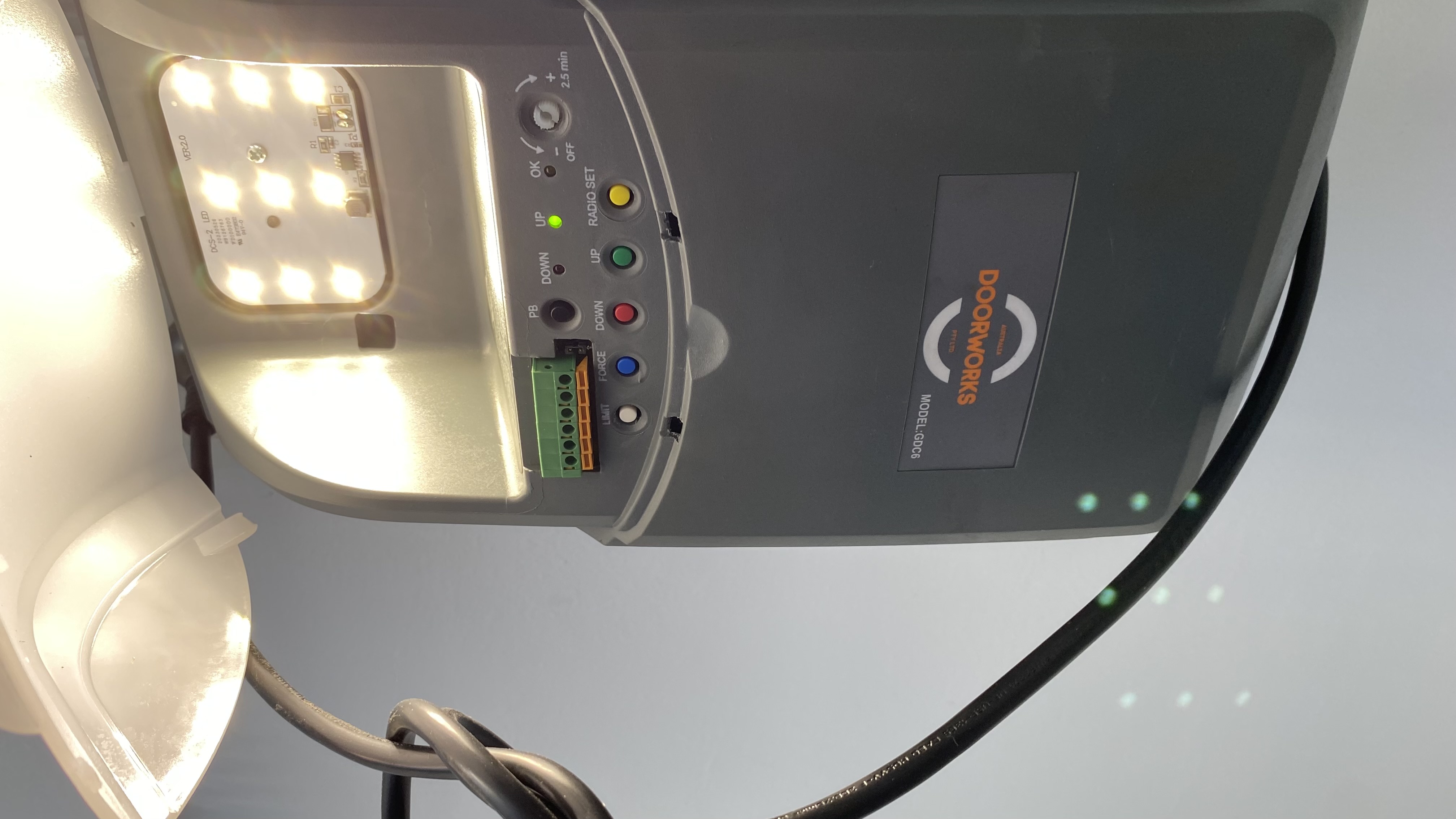

Page 15: Programming The Remote Controls
Programming the Remote Controls 1. To program transmitter, press “SET” button, “OK” LED glows with a beep. The unit is ready to accept a transmitter within a 30 seconds time frame. DOWN LIMIT FORCE DOWN RADIO SET 2. Press desired button on the transmitter within 30 seconds. 3. -
Page 16: Final Installation
Final Installation Make Sure That: 1. The front and rear mounts for the opener are sound and secure and the rail is positioned correctly above the high arc of the door and that the opener is positioned over the door action centerline. 2. -
Page 17: After The Installation
After the Installation 1. Never permit children to play with or operate the garage door opener either from the wall station or the remote controls. Keep radio transmitter locked in the car. Misuse of the push button or transmitter could result in serious injury or even death. - Page 18 Rail and Hardware Parts List(GDC6) A-10 Dome Cover LED Light Housing Assembly Logic Board Logic Board Holder Motor Transformer LED Light Cover Chassis A-10 Power Cord...
- Page 19 Rail and Hardware Parts List(GDC12) A-10 Housing Assembly Dome Cover LED Light Logic Board Logic Board Holder RPM Encoder Motor Transformer LED Light Cover Chassis A-10 Power Cord...
-
Page 20: Warranty
WARRANTY Doorworks Garage Door Operators hereafter referred to as the Manufacturer hereby warrants: 1. Garage Door Operators to be free from defects in material and workmanship for a period of five (5) years for mo- tors and one (1) year for Electronics and Mechanics from date of purchase, if installed by an authorized reseller, otherwise if installed by the purchaser one (1) year will apply.
