Part Number:
Description:
BMA-002F-08
BrewMometer™ - Weldless Adjustable Dial-face Fahrenheit scale
Congratulations on your purchase, and thank you for selecting the BrewMometer™ brewing thermometer from Blichmann
Engineering™. We are confident that it will provide you years of service and many gallons of outstanding beer. This manual
will familiarize you with the assembly, calibration, and installation procedures, and use of the BrewMometer™ brewing
thermometer.
**** PLEASE READ THOROUGHLY PRIOR TO USE FOR IMPORTANT SAFETY INFORMATION ****
Caution:
Sections labeled "Caution" can lead to equipment damage or unsatisfactory performance of the
equipment. Please read these sections thoroughly. If you have any questions, contact your retailer or
Blichmann Engineering™ (www.BlichmannEngineering.com) before use.
Assembly & Installation:
Caution: Prior to installing the BrewMometer™, select a position on the kettle that is high enough to be out of the direct
heat from the burner, but low enough to measure approximately in the middle of the liquid for a better temperature
accuracy.
Caution: As with any bimetal thermometer, do not install the BrewMometer™ in a location on the kettle where it will be
subjected to excessive heat. Always keep the flame low enough that excessive heat does not roll over the corners of the
kettle. Excessive heat will damage the hermetically sealed case causing the inside of the BrewMometer™ to fog. This failure
is not covered under warranty. If you cannot comfortably hold your hand on the case of the thermometer during operation
it is too hot (about 140°F max). A minimum distance of 6" from the bottom of the kettle is recommended but does not
guarantee it will be below 140°F. If the surface is still too hot, installing a heat shield (not provided) under the thermometer
is recommended. Lastly, avoid direct spray of water on the thermometer and do not immerse it in water for cooling or
cleaning.
Adjustable BrewMometer™ Owner's Manual – V2
Blichmann Engineering, LLC 2017
For replacement parts visit blichmannengineering.com/genuine-replacement-parts

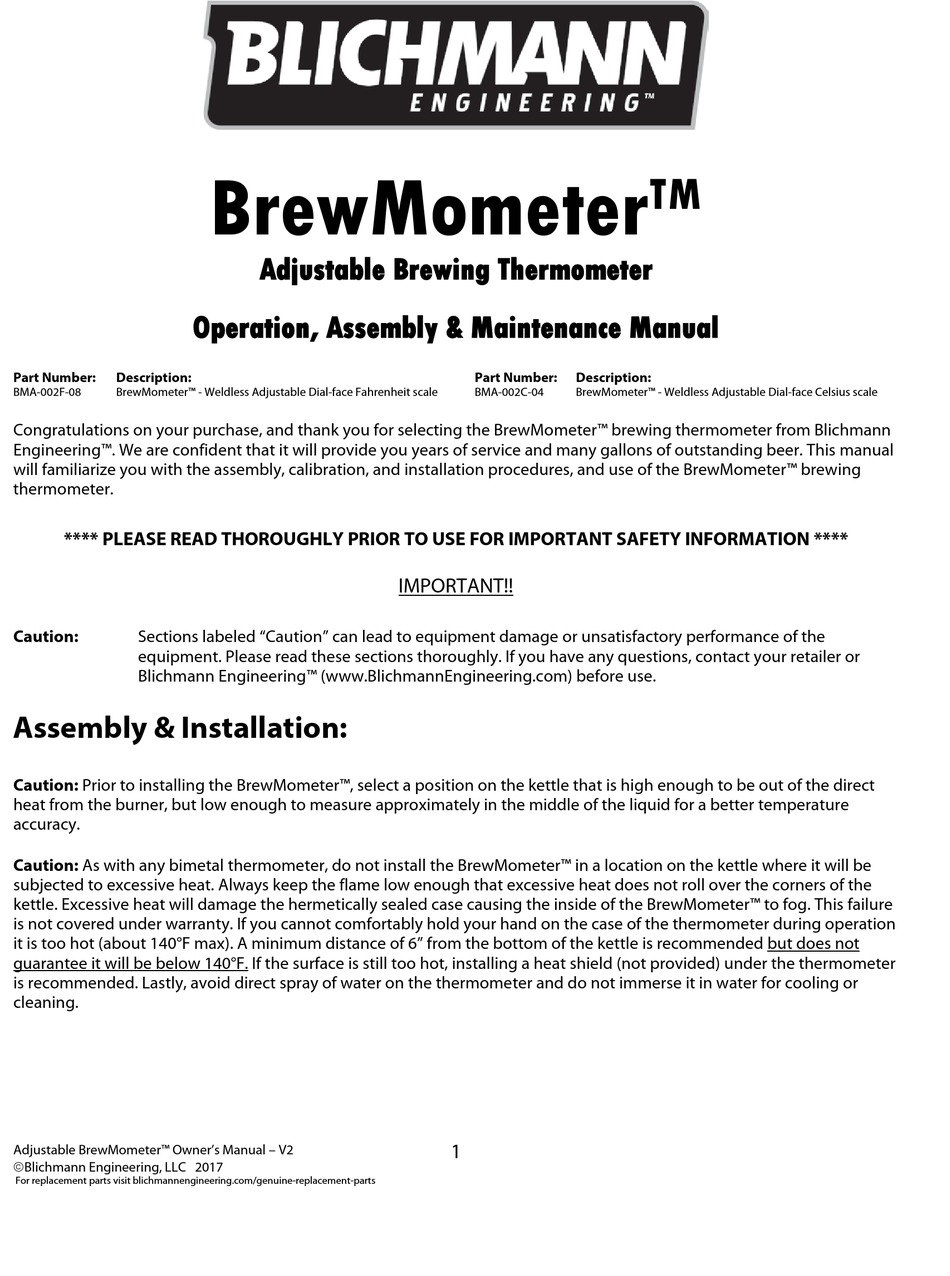

BrewMometer
Adjustable Brewing Thermometer
Operation, Assembly & Maintenance Manual
Part Number:
BMA-002C-04
IMPORTANT!!
1
TM
Description:
BrewMometer™ - Weldless Adjustable Dial-face Celsius scale
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blichmann Engineering BrewMometer BMA-002F-08
Summary of Contents for Blichmann Engineering BrewMometer BMA-002F-08
- Page 1 Sections labeled “Caution” can lead to equipment damage or unsatisfactory performance of the equipment. Please read these sections thoroughly. If you have any questions, contact your retailer or Blichmann Engineering™ (www.BlichmannEngineering.com) before use. Assembly & Installation: Caution: Prior to installing the BrewMometer™, select a position on the kettle that is high enough to be out of the direct heat from the burner, but low enough to measure approximately in the middle of the liquid for a better temperature accuracy.
- Page 2 ½”-20 sanitary nut snugly (See Fig. 2). Pipe tape is NOT required on the weldless BrewMometer™ models. Fig. 2 Fig. 1 Kettle Wall Sanitary nut Nut seal O-Ring groove Stem seal O-Ring Nut seal groove Adjustable BrewMometer™ Owner’s Manual – V2 Blichmann Engineering, LLC 2017 For replacement parts visit blichmannengineering.com/genuine-replacement-parts...
- Page 3 Adjust the dial-face of the BrewMometer™ to the calculated boiling point. Although this is not an exact formula, it provides an acceptable level of precision. Adjustable BrewMometer™ Owner’s Manual – V2 Blichmann Engineering, LLC 2017 For replacement parts visit blichmannengineering.com/genuine-replacement-parts...
- Page 4 A. Limited Warranty Blichmann Engineering warrants to the original purchaser that this product will be free from manufacturing defects in material and workmanship for a period of one (1) year from the date of purchase by the customer. Proof of purchase is required. Blichmann Engineering’s obligation to repair or replace defective materials or workmanship is the sole obligation of Blichmann Engineering under this limited warranty.
