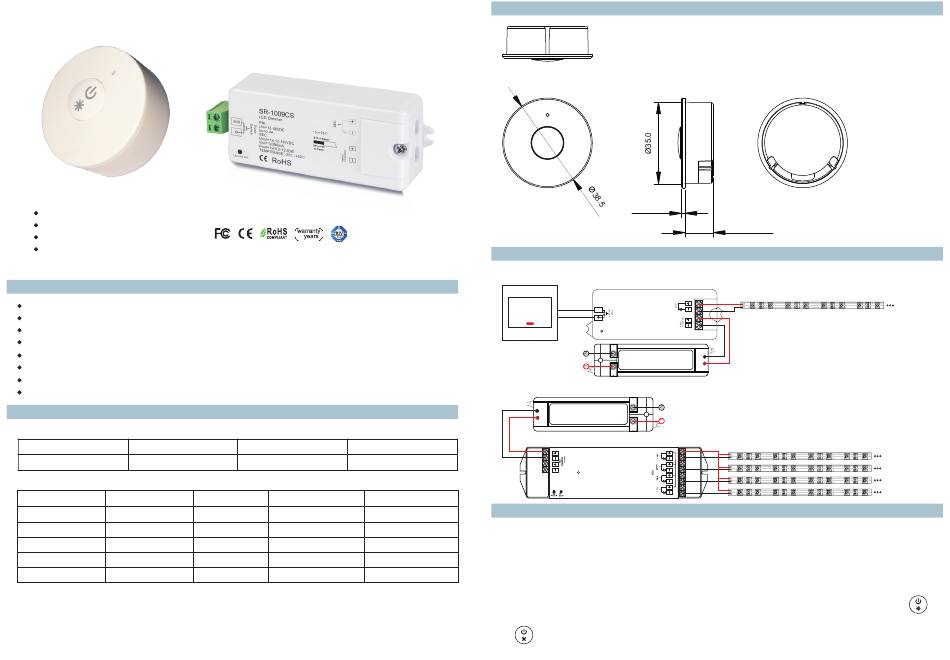

Evender SR-1009 Series Manual

1 Zones Mini RF Single Color LED Dimmer

Mini RF wireless dimmer
Battery include with remote
On/Off function
Memory Function

Feature

Reliable&stable switch and dimming control function.
Long time span battery for 2 years
Switch on/off lightings slowly,without any flash,meet the comfort of human eyes.
Dimming range:0.1-100%
Use with power repeater to expand the output power unlimitedly.
One zone controlled, but can be set endless receivers, each receiver can be controlled by 8 different remotes.
Enable be dimmed and ON/OFF by push button after connecting receivers.
Receivers can work with RF-WIFI converter after installing software on ISO and Android system.

Parameter

Remote

Item No Operation Voltage
SR-2833S 3VDC

Correspond Receiver

Input Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
SR-1009CS 12-36VDC
SR-2833S with SR-1009xx
5
Operation Frequency
434MHz/868MHz
Output Current Output Power
4x5A
4x(60-180)W
4x8A 4x(96-288)W
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
1x8A 4x(96-288)W
Product size

Wiring diagram

1)Receiver Connection Diagram for Single Unit
PUSH
110V-230VAC
2)Receiver Connection Diagram for Multiple Units
Battery
CR2025
Remarks

Operation

Constant voltage
Constant voltage
After you have wired all the receivers according to Figure illustration you need to do the following:
Constant current
1. You need pair the receiver and remote by pressing the Learning Key once on the receiver,then the power/dim
Constant current
button on your remote,Your light will blink once,signify that your receiver and remote are paired
Constant voltage
2. Now you are able to dim and power on and off your lights.To power on or off your lights,simply press
once.This will turn on and off your lights with a subtle fading effect.To dim your lights,hold and press down
on ,you will notice a gradual change to either a brighter or dimmer light.
1.5
12.2
GND SR-1009CS
RF Easy Dimmer
Learning Key
Power Supply
12-36VDC
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
Learning Key LED CONTROLLER
Single color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
