Mounting
4x
256 mm
1
Prepare a hole of the size
1
256 x 174 mm.
1
2
3
Connection
Connect the supply voltage to the pa-
1
nel using the supplied DC connector.
1
Connect the Ethernet cable
2
to the ETH port.
4x
2
Secure the panel with
screws and struts.
3
Panel with a sheet thickness
of max. 2.5 mm.
2

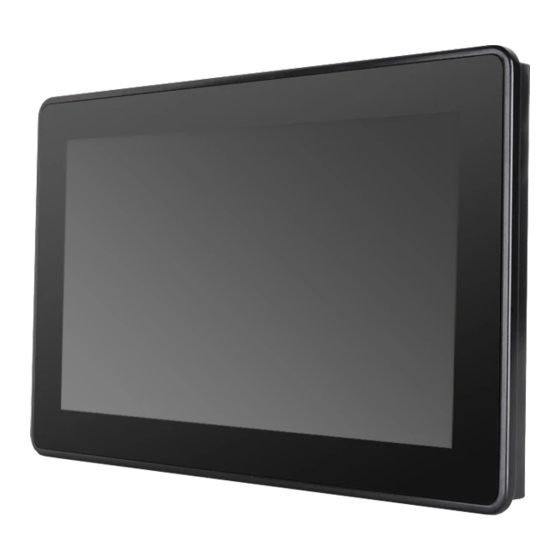

Installation guide
Touch-101-L
1
SAFECONTROL s. r. o.
Vaníčkova 315/7
169 00 Praha 6
IČO: 02084287
DIČ: CZ02084287
support@safecontrol.cz
www.safecontrol.cz
Information for users on the disposal of electrical and electronic equipment
(corporate and enterprise use)
For proper disposal of electrical and electronic equipment, request detailed
information from your dealer or suppliers.
Information for users on the disposal of electrical and electronic equipment
in other countries outside the European Union
The below symbol is only valid in the countries of the European Union. For proper
disposal of electrical and For detailed information, contact your local authorities
or equipment retailer.
Made in Czech Republic
