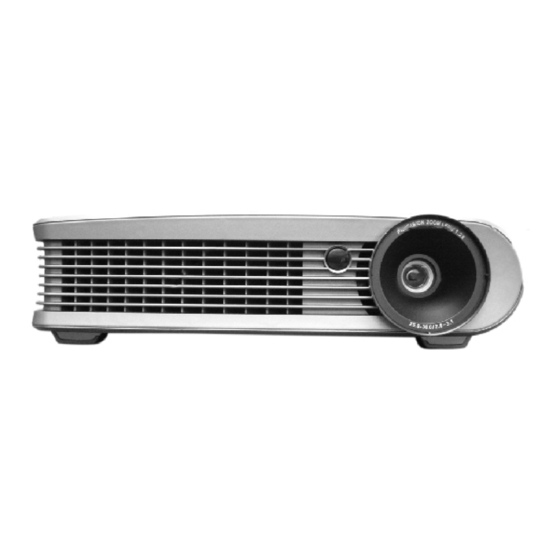

Summary of Contents for Meiloon DHT100
- Page 1 DHT100/200 OWNER’S MANUAL...
- Page 2 DHT100/200 DHT100/200...
- Page 3 DLP PROJECTOR DLP PROJECTOR REPLACING THE LAMP, TURN THE PROJECTOR 50/60 Hz 50/60 Hz MODEL NO.: DHT100/200 MODEL NO.: DHT100/200 OFF AND UNPLUG THE POWER CORD, WAIT OVER 45 MINUTES BEFORE OPENING THE LAMP DOOR. MADE IN TAIWAN MADE IN TAIWAN PLEASE FOLLOW THE INSTRUCTION IN THE USER'S MANUAL TO REPLACE THE LAMP.
- Page 4 It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. DHT100/200 DHT100/200...
- Page 5 前 項 合 法 通 信 ， 指 依 電 信 規 定 作 業 之 無 線 電 信 。 低 功 率 射 頻 電 機 須 忍 受 合 法 通 信 或 工 業 、 科 學 及 醫 療 用 電 波 輻 射 性 電 機 設 備 之 干 擾 。 DHT100/200 DHT100/200...
-
Page 6: Table Of Contents
Using the Remote Control On-Screen Display Menus 3-2-1 How to Operate 3-2-2 Projector's OSD (On-Screen-Display) 3-2-3 Media Player's OSD (On-Screen-Display) 3-2-4 DVD Player's OSD (On-Screen-Display) 4. Appendices Troubleshooting Maintenance 4-2-1 Replacing the Lamp 4-2-2 Cleaning the Projector Specifications DHT100/200 DHT100/200... -
Page 7: Precautions
These measures are intended to prevent the formation of condensation inside this unit, which could cause fire, damage to this unit, and/or personal injury. 10. Be sure that the projector completes its cooling cycle (90sec) before disconnecting the power cord. DHT100/200 DHT100/200... -
Page 8: Product Overview
Built-in wireless Transmitter module (for Stereo Wireless Amplified Speakers). Media Player (card compatibility: CF, IBM Microdrive, MS, SD, MMC, SM). Five in one Wireless remote control .(Projector, Wireless Speakers, Media player, TV tuner, DVD Player) Security feature: Kensington Lock. Optional TV tuner. DHT100/200 DHT100/200... -
Page 9: Package Contents
PRODUCT OVERVIEW PACKAGE CONTENTS DHT100/200 projector x 1 Power cord(US) x 1 PC audio cable x 1 Power cord(EU) x 1 VGA cable x 1 AAA Batteries x 2 Remote Control x 1 Owner's manual ALL-IN-ONE PROJECTOR DHT100/200 MODEL OWNER'S MANUAL EIKI INDUSTRIAL CO., LTD. -
Page 10: Main Unit
AC power inlet DRAWING 2 Power switch Elevator button Media player cover DVD insert slot DRAWING 3 Focus ring Zoom ring Control panel DRAWING 4 Elevator feet Ceiling mount screw holes DVD player module Adjustable foot DRAWING 5 DHT100/200 DHT100/200... -
Page 11: Control Panel
1. TV input (Optional) 7. Composite Video input 2. Kensington Lock 8. Component Video input (YPbPr/YCbCr) 3. Audio output (5.1 channels) 9. VGA input 4. Audio output 10. PC audio in 11. VGA output 5. Audio input (R/L) 6. S-Video input DHT100/200 DHT100/200... -
Page 12: Installation
When the projector has cooled down, the "Standby/On" button on the Control Panel will be flashing green, indicating the projector is in Standby mode. Turn off the power switch. Replace the lens cap. Disconnect the power cord from the AC inlet of the projector and power outlet. DHT100/200 DHT100/200... -
Page 13: Led Indication Status
Overheating Green in the projector: There is a warning message displayed on screen then the projector will power itself off. 8. Overheating The system will cool Green while starting (1 sec itself down for 8 sec interval) automatically. DHT100/200 DHT100/200... -
Page 14: Adjusting The Projector Image
Rotate the Focus ring to focus the image. The projector will focus at distances from 1.5m (60in. / 5 ft.) to 10m (394 in. / 32.9 ft.). The optimum distance is from 1.5 m to 5 m (197 in. / 16.5 ft.). Zoom Ring Focus Ring DHT100/200 DHT100/200... -
Page 15: Adjusting The Projection Image Size
"Source" button on the Control Panel of the projector or on the Remote Control to select the computer source. DRAWING 15 DRAWING 16 PC Audio in (From computer) VGA out PC Audio in VGA in VGA in (From computer) (From computer) (From computer) (To Monitor) DHT100/200 DHT100/200... -
Page 16: Operating The Media Player
/ Type II Length x Type I : Width x 43x36.4x3.3 37x45x0.76 32x 24x1.4 32x 24x2.1 50x21.5x2.8 43x36.4x5 Thickness Type II: (mm) 43x36.4x5.0 Reference Picture Media Player DRAWING 17 Slot 1 (SM) Slot 2 (SD/MS/MMC) Slot 3 (CF(I/II)/MD DRAWING 18 DHT100/200 DHT100/200... - Page 17 Control Panel or Remote Control to choose the card you want to play. Press "Enter" to select. Once a card is selected, or if only one card is inserted, the file selection screen is displayed as shown in Drawing 20. DRAWING 19 DHT100/200 DHT100/200...
- Page 18 Open the PHOTO ALBUM by pressing the "Enter" button. It will take 2 to 3 sec to display the thumbnail on the screen. (Drawing 23) Use the "Cursor" buttons to select the photo you want and press the "Play" button to display it full size. DHT100/200 DHT100/200...
- Page 19 DVD movies. Press the "Right" or "Left" button to select the "MOVIE" folder. (Drawing 24) Use the "Cursor" button to select the clip you want and press the "Play" button to start. (Drawing 25) DRAWING 24 DRAWING 25 DHT100/200 DHT100/200...
-
Page 20: Operating The Dvd Player
Press the "Play" button on the Control Panel or on the Remote Control to play a DVD. DVD slot DRAWING 28 2-3-3-1 PANEL CONTROL ON THE PROJECTOR Please refer to the section 3-1-1. 2-3-3-2 REMOTE CONTROL Please refer to the section 3-1-2 DHT100/200 DHT100/200...
