Summary of Contents for Raycer RAY45PCS-1

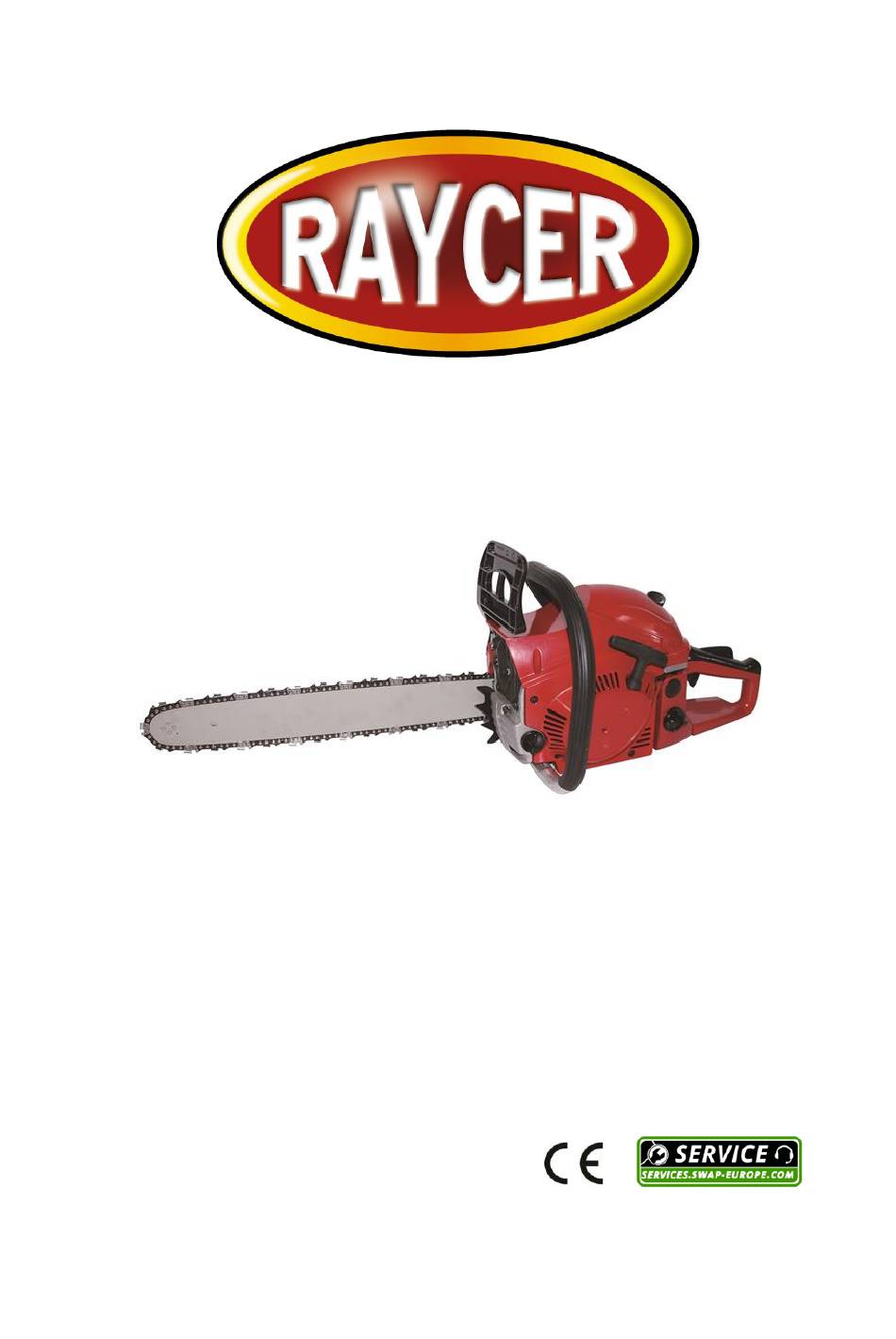

- Page 1 ORIGINAL INSTRUCTIONS CHAINSAW RAY45PCS-1 INSTRUCTIONS MANUAL Read the instructions before use the tool BUILDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC...
-
Page 2: Table Of Contents
CONTENTS SECURITY INSTRUCTIONS YOUR PRODUCT ASSEMBLY FILLING THE FUEL TANK OPERATION MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY... - Page 3 1. SAFETY WARNINGS • WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. • Read all instructions carefully before attempting to use this product and retain these instructions.
- Page 4 • Be concentrated when using the tool. Look at what you do, make sense and do not use the tool when you are tired. • Remove the blade guard before using the tool. • A damaged guard or other part must be properly repaired or replaced by an authorized service center, unless otherwise specified in this instruction manual.
- Page 5 cause loss of control. • Cut only wood, as well as for pruning and cutting wood. Do not use the chain saw for any other purpose. For example: do not use it to cut plastic, masonry or construction materials other than wood. Using the chain saw for operations other than those specified may result in hazardous situations.
- Page 6 rebound forces can be controlled by the operator, if appropriate precautions are taken. Do not allow chain saw to start. • Do not stretch the arm too far and do not cut above the shoulder height. This helps prevent unintentional end contacts and allows better control of the chain saw in unforeseen situations.
-
Page 7: Your Product
2. YOUR PRODUCT a. Description... -
Page 8: Assembly
8- Fuel tank 18- Screws of fixation 9- Starter rope 19- ON/OFF switch 10- Oil tank 20- Choke lever b. Technical data Model RAY45PCS-1 Type of engine RY1E44F (air cooled 2-stroke petrol engine) Fuel Tank Volume 550cm³ Oil tank volume 260cm³... - Page 9 1) Pull the guard toward the front handle to check that the chain brake is not engaged. 2) Loosen the nuts and remove the chain cover. 3) Attach the bracket to the rear of the engine assembly with a screw. 4) Install the guide and mount the chain on the pinion and guide in the direction shown in the diagram.
-
Page 10: Filling The Fuel Tank
7) Adjust the chain tension by turning the tension screw until the straps touch just the bottom side of the bar. Check if the chain is rotated correctly and tight. While lifting the chain guide, turn the content screw to apply correct tension to the chain. Then lock the crankcase nuts. -
Page 11: Operation
The chainsaw must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot. If fuel has been spilled, immediately stop refueling and do not start the engine. - Page 12 obstacles and other items that may cause damage during cutting. The unit should always be filled with fuel and useful. Check the level of filling and refill when necessary. IMPORTANT: starting shall always be done with the chain brake activated. See on page 14 how to achieve this.
- Page 13 2. Stopping the engine Allow the chainsaw to run for a few minutes. Then turn the switch to the OFF position. 3. Main settings a. Adjusting the carburetor The carburetor is preset at the factory. To avoid malfunction, it is recommended not to adjust the adjustment screws.
- Page 14 b. Chain brake The chain brake is a device that automatically stops the chain in case a backward movement occurs, causing the saw to jump. Normally, the brake is automatically activated by the inertia force. It is also manually tightened by pushing the brake lever down and forward. When the brake is running, a yellow sign comes out from the base of the brake lever.
- Page 15 d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To make a normal cut, force on the tool...
- Page 16 Cut half of the trunk, turn it over and finish the cut on the other side. c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation. b.
-
Page 17: Maintenance And Storage
6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. - Page 18 e. Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. Spark plug Clean the electrodes with a wire brush and set the gap to 0.6mm if necessary.
- Page 19 g. chain saw Check each time the cutter and cutting angles are as shown below. h. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it).
- Page 20 WARRANTY We guarantee this product for 2 full years. The warranty period for this item starts on the day of purchase. You can prove the date of purchase by sending us the original receipt. We insure over the entire warranty period: •...
-
Page 21: Declaration Of Conformity
Declaration of conformity BUILDER ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw RAY45PCS-1 Serial number: 20200713223-20200713522 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;...
