CARE AND MAINTENANCE
Wipe clean with a soft, dry cloth. The seat board can be cleaned with a mild cleaner. Test the cleaning
method on a hidden area before using them over the entire area .
NOTICE
* Please make sure that you have all parts indicated before you begin assembly of this item
* This item should be assembled on a soft surface to prevent scratching the finish during assembly
* This item may require periodic tightening
Part List and Hardware List
DESCRIPTION
PIECE
Back Cushion 21.26"W*19.69"H*2.36"T
A
B
Seat Cushion 22.05"W*31.5"H*3.15"T
C
Arms (R & L)
D
Control Mechanism
E
Cylinder Column
F
Star Base
G
Caster
HW1
Short Phillips Screws 6x0.5x25MM
HW2
Medium Phillips Screws 6x0.5x30MM
HW3
Socket Screws 8x0.6x50MM
HW4
Flat Washer 6.5MM
HW5
Screw Cover
HW6
Allen Wrench
QUANTITY
1X
1X
1X(R,L)
1X
1X
1X
5X
2X
6X
4X
8X
4X
2X

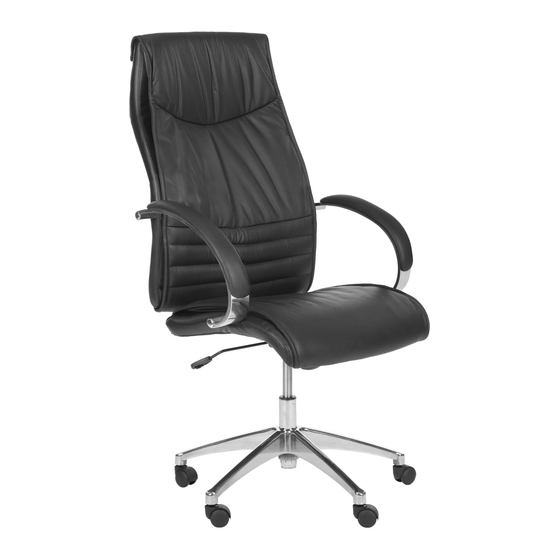

Model# FOX8513
Product Dimensions: 26.6"W*27.2"D*41.7~45.7"H
Advertisement
Table of Contents
Related Manuals for Safavieh Furniture Martell FOX8513
Summary of Contents for Safavieh Furniture Martell FOX8513
- Page 1 CARE AND MAINTENANCE Wipe clean with a soft, dry cloth. The seat board can be cleaned with a mild cleaner. Test the cleaning method on a hidden area before using them over the entire area . NOTICE * Please make sure that you have all parts indicated before you begin assembly of this item * This item should be assembled on a soft surface to prevent scratching the finish during assembly * This item may require periodic tightening Model# FOX8513...
- Page 2 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 10 minutes. Tools Required for Assembly (included): Allen Wrench Step 1 Step 2...
