magic clean MCDW24WI Installation Manual page 12

(opt +2 23/64")

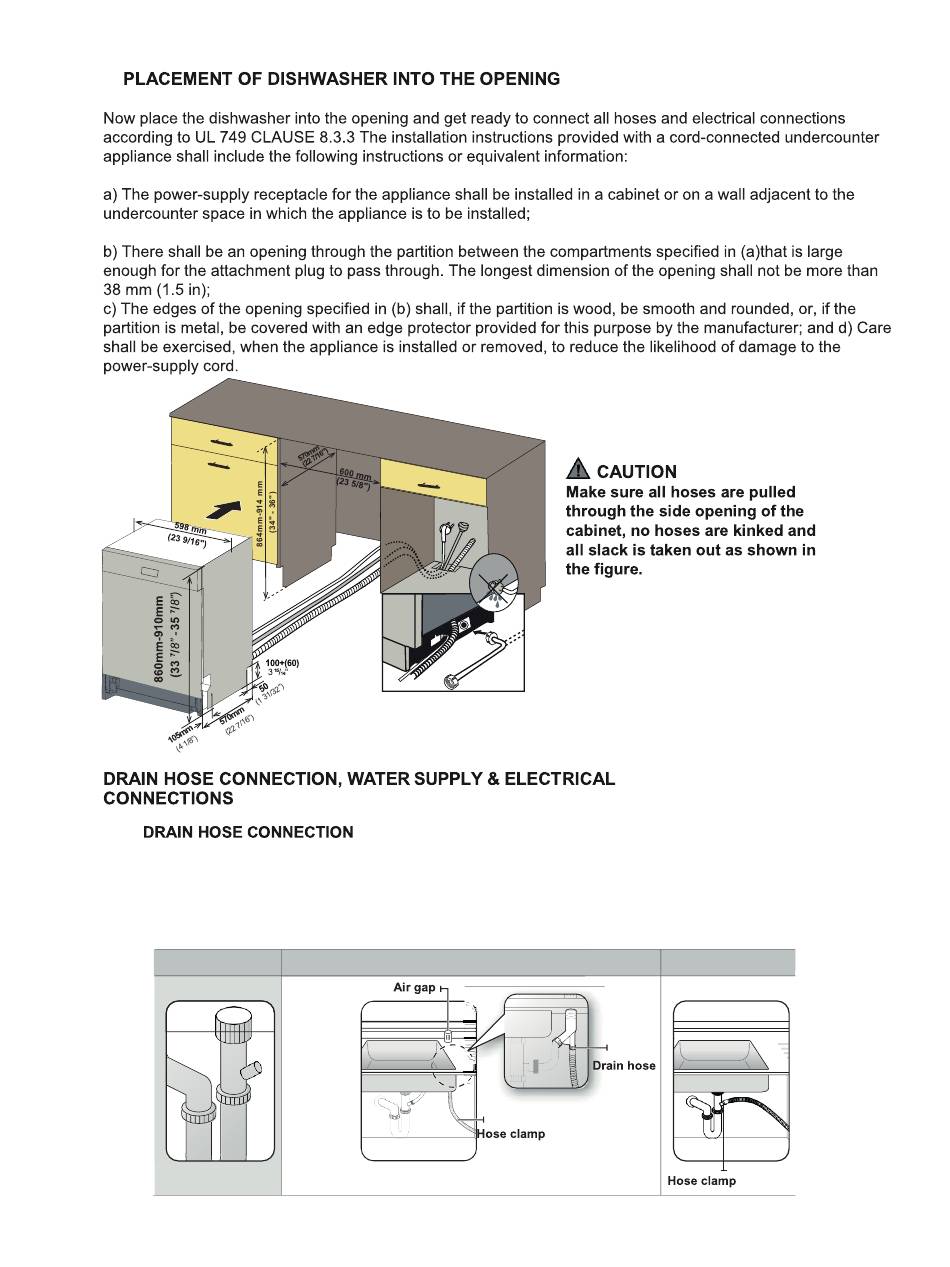

1. Check the parts on the sink to which the drain hose will be connected.
2. There are several ways to insert the drain hose into the drain hose connector of the sink, as
shown in the following figures. You must connect the drain hose in accordance with the water pipe
installation regulations in your region.
Garbage disposal With an air gap
Without an air gap
A. Without disposal
12
