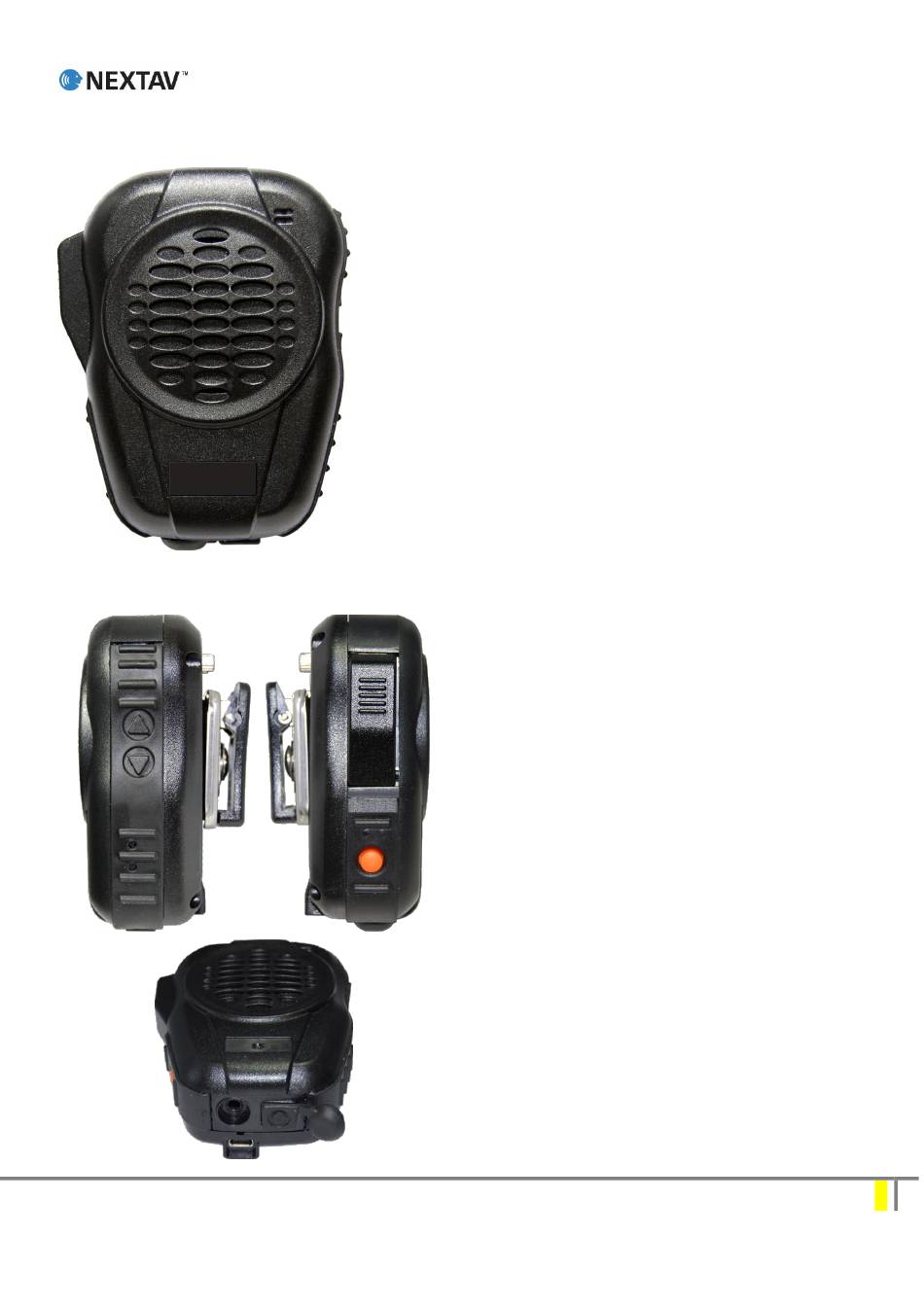

NX-BTH-600
<Product Descriptions>
•Heavy duty speaker microphone for Zello iOS
and Android version.
•Volume control buttons, cell phone answering
/ hanging up button, and PTT button are built in.
•Embedded 3.5mm jack for external earphone.
Built-in Mini USB for charging.
<Specification>
Type: Bluetooth Speaker Microphone Operating
Temp: -20℃±2℃ ~ 50℃±2℃
Approx. Weight: 140g
• Fully Qualified Bluetooth v4.0.
• Echo cancellation, noise reduction, also
extended features
• High Quality DAC, CSR CVC Built-in
• 80MHz RISC MCU and 80MIPS Kalimba DSP
• Fast Current (200mA) battery charge
• SBC, MP3, AAC, Fast stream, APTX codec
support
• RoHS compliant
• HSP / HFP / A2DP / AVRCP/ PBAP / SPP / MAP
profile supports
• Speaker Output: 2W
• PTT function: built-in
• Talking Range: Bluetooth class 2, 10 meters
• Display LED: Blue and Red
• DC Input: 5 Vdc (std.)
• DC Current: 25 mA (Average)
• Battery: 1000mAH, replaceable
• Talk Time: 40 Hours
1
www.nextav.net
Advertisement
Summary of Contents for Nextav NX-BTH-600
- Page 1 NX-BTH-600 <Product Descriptions> •Heavy duty speaker microphone for Zello iOS and Android version. •Volume control buttons, cell phone answering / hanging up button, and PTT button are built in. •Embedded 3.5mm jack for external earphone. Built-in Mini USB for charging.
- Page 2 www.nextav.net...
- Page 3 BTH-600 State and LED Flashing Pattern BTH-600-AZ State & Button Press LED Message Function No link and no paired BTH-600 is OFF No LED BTH-600 OFF BTH-600 is OFF; Press Power button and Both Blue & Red LED ON for 1 second Turn BTH-600 ON hold for 3 seconds.
- Page 4 BTH-600 Pairing Process for Zello iOS 1. Make sure BTH-600 is OFF, and press power switch and hold for 6 seconds 2. BTH-600 is under pairing mode when you see the LED flashing RED and BLUE alternatively. 3. Start Bluetooth function on your smart phone.
- Page 5 NX-BTH-600 BTH-600 Pairing Process for Zello Android 1. Make sure BTH-600 is OFF, and press power switch and hold for 6 seconds 2. BTH-600 is under pairing mode when you see the LED flashing RED and BLUE alternatively. 3. Start Bluetooth function on your smart phone.
- Page 6 More: Set up the NX-BTH-600 Android 1. Pair the accessory with your phone 1. Place the accessory in pairing mode by 2. Open "Options" > "Push-to-talk holding down the power button for 5 seconds. button" 2. Open the Zello Menu > "Options" > "Push To Talk button"...
- Page 7 5. Now pair the accessory under the iPhone BT options to start using the audio and microphone with Zello. 6. When set-up is complete, Bluetooth options should look like the image below. 4. Make sure that the Bluetooth icon is selected in the bottom left corner www.nextav.net...
- Page 8 www.nextav.net...
