Controlsoft AC-1100-BK Installation Instructions

Rs485 proximity reader

Installation Instructions

RS485 Proximity Reader

Part Codes: AC-1100-BK

AC-1100-WH

Introduction

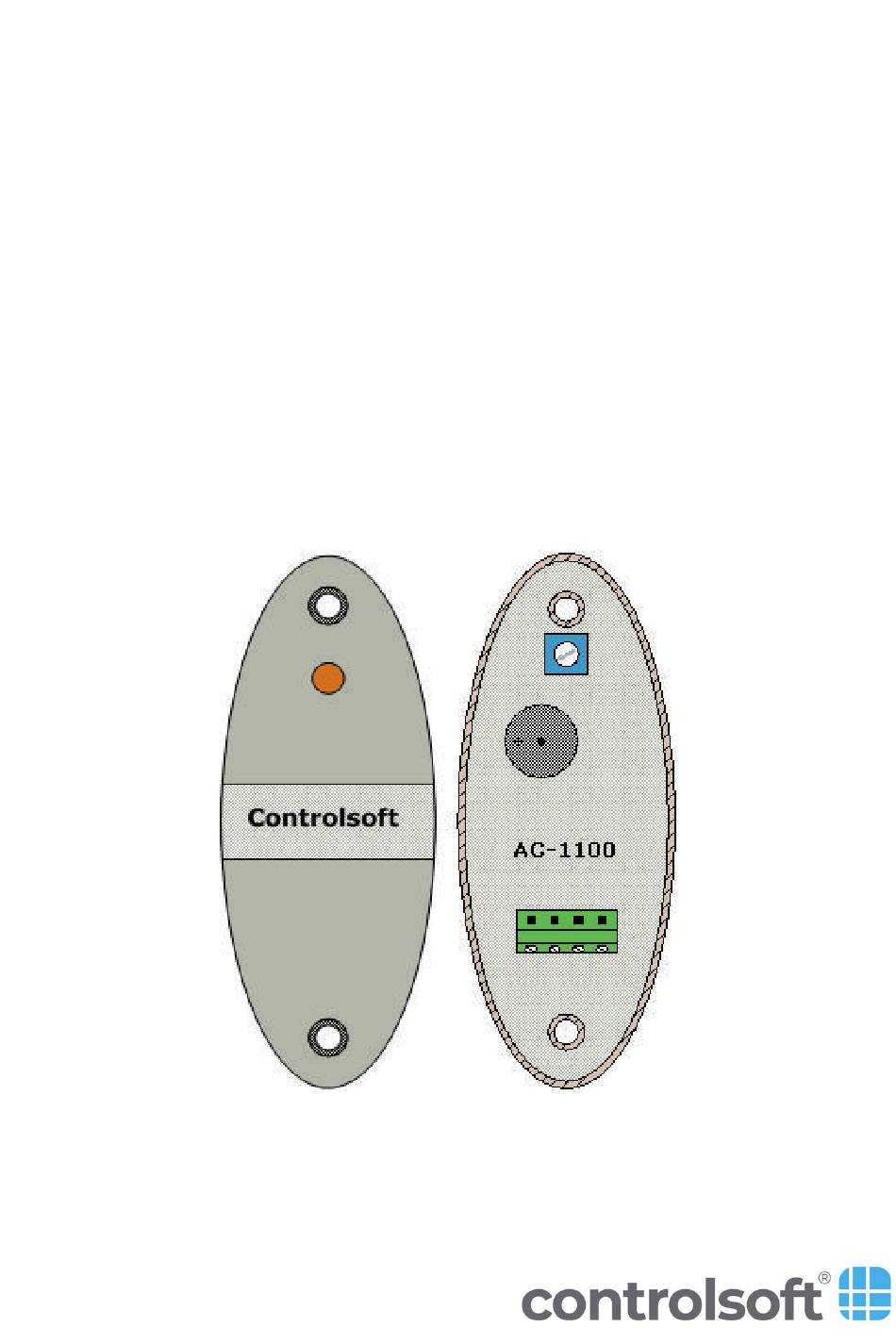

The AC-1100 is a proximity reader for Controlsoft® 125kHz proximity cards and tags

and is available in black (-BK) or white (-WH). A piezo buzzer and a tri-colour LED

indicate reader status to make the device very easy to use.

The reader circuitry is encased in a durable, waterproof resin, making it suitable for

both internal and external use.

Step 1: Prepare the installation

The reader can be mounted against any surface (a metal surface will reduce the read

range) and in any orientation. A template is provided to mark the position of the

required holes. Drill the holes, plug the mounting holes (if required) and feed the

cable through the cable entry hole.

9010-0012 Issue 4

www.controlsoft.com

Table of Contents

Do you have a question about the AC-1100-BK and is the answer not in the manual?

Page 1 AC-1100-WH Introduction The AC-1100 is a proximity reader for Controlsoft® 125kHz proximity cards and tags and is available in black (-BK) or white (-WH). A piezo buzzer and a tri-colour LED indicate reader status to make the device very easy to use.
Page 2 Set the RS485 Address Step 2: Set the RS485 Address The reader communicates with the i-Net™ ACU via an RS485 bus. Each device on the RS485 bus must be assigned with a unique address. The RS485 bus supports up to 16 devices, so the reader has a 16 position rotary switch marked ‘0’ to ‘F’. The table below shows how the switch position relates to the address: Rotary Switch RS485 Address...
Page 3 Connect the Reader Step 3: Connect the RS485 Bus Connect the reader to the RS485 bus as shown in the diagram below. The maximum length of the RS485 bus is 1000 metres end to end. For RS485 connections we recommend using Belden 8723 or equivalent. This is a 2 twisted pair cable, with each pair screened.
Page 4 ACU. Caution: The “crossed out wheeled bin” logo on Controlsoft products indicates that this product should not be disposed of via the normal household waste stream. To prevent possible harm to the environment or human health, please separate this product from other waste streams.
