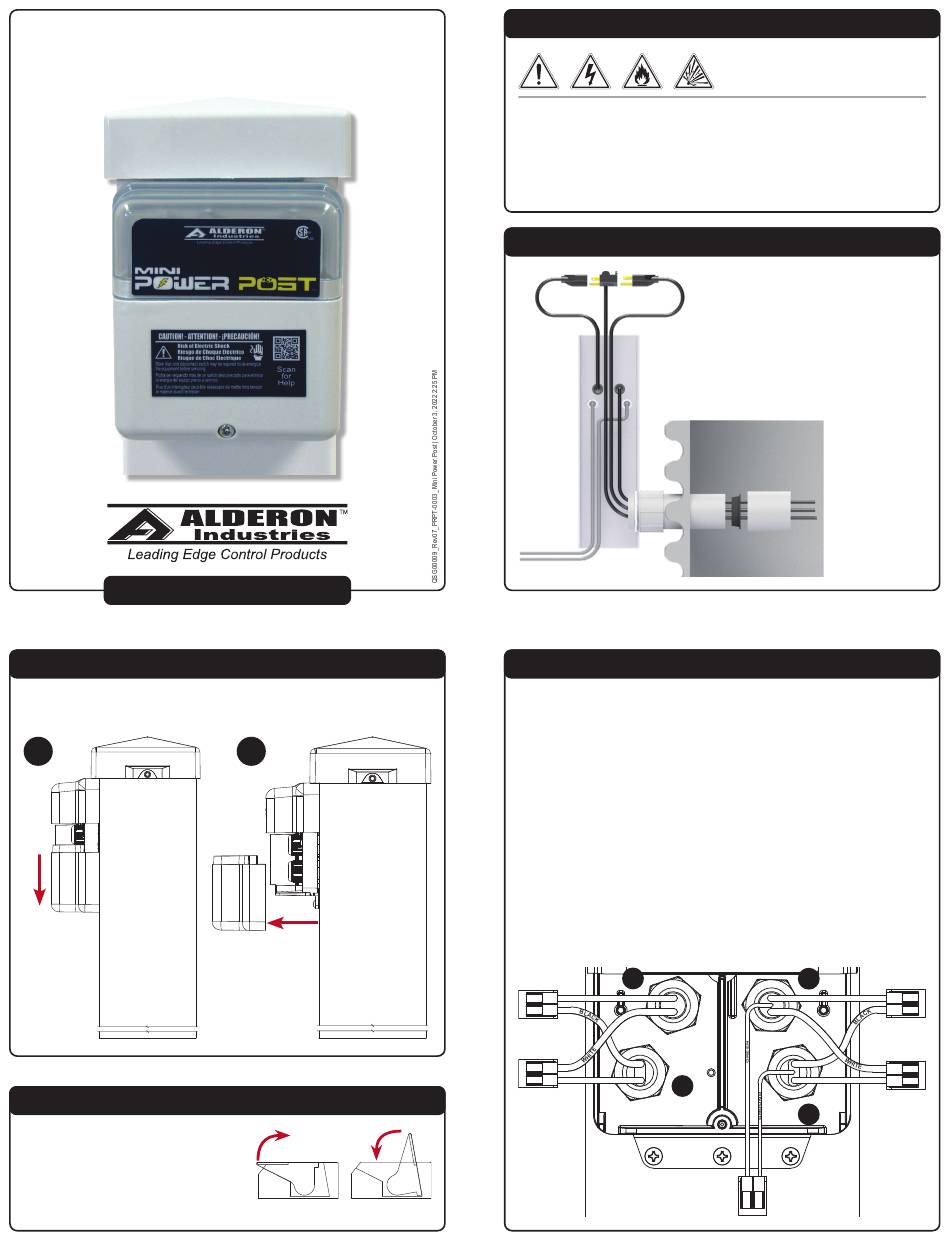

Alderon Industries Mini Power Post PRPT-0003 Quick Start Manual

Mini Power Post
Pump Connection Center | Model: PRPT-0003
QUICK START GUIDE
Step 2: Remove Bottom Cover
Remove the bottom enclosure cover screw, slide directly downward
(2A) and then pull directly away (2B).
2A
Step 3: Install Wire into Wago Connector
1) Lift tab(s) upward.
2) Insert wire(s) into slot.
3) Press tab(s) downward.
4) Make sure wire(s) are secured.
™
2B
TO OPEN TO CLOSE
WAGO WAGO
Safety Guidelines
Before proceeding with the installation or operation of this product,
read all instructions thoroughly, as well as complying with all federal,
state and local codes, regulations, and practices. This product must
be installed by qualified personnel familiar with all applicable local
electrical and mechanical codes. Refer to the National Electrical Code
(NFPA 70). Failure to properly install and test this product can result in
personal injury or equipment malfunction.
Step 1: Install Post
Determine location for the post in the
ground near a tank and drill access
holes for the float switch cables using
the customer supplied conduit/fittings or
Alderon's riser connection kit. Route the
cables through access holes and wire
as described in step 4.
Note: Seal all conduits to prevent moisture and gases
from entering the post per local codes.
Step 4: Junction Box Wiring
1) Route alarm float switch cable through Cable Grip A and firmly
tighten grip.
2) Route the underground feeder (UF) cable from the indoor alarm
panel through Cable Grip B and firmly tighten grip.
3) Route incoming pump power UF cable through Cable Grip D and
firmly tighten grip.
4) Connect wires in Cable Grip D to the pre-installed Wago
connectors on wires coming out of Cable Grip C as shown in the
diagram.
5) Connect wires coming in Cable Grip A to wires coming in Cable
Grip B as shown in the diagram.
Note: NEVER leave ground wire(s) exposed, use provided Wago
connectors for wire termination (see step 3).
A
WAGO
BLACK
WAGO
B
WHITE
WARNING
C
BLACK
WHITE
D
WAGO
WAGO
WAGO
