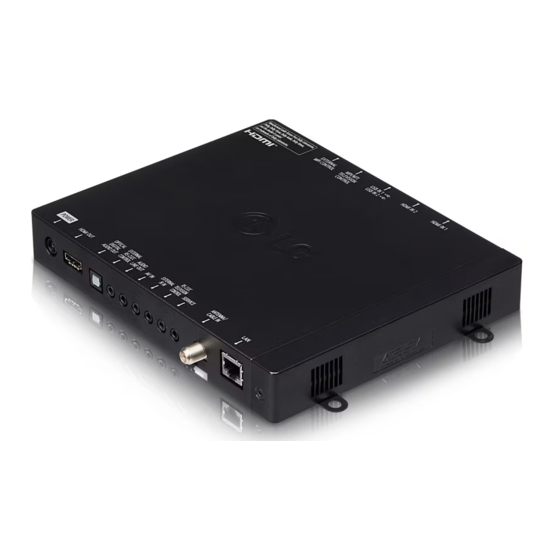

- Page 1 OWNER’S MANUAL SET-TOP BOX Please read this manual carefully before operating your set and retain it for future reference. STB-600A-UB www.lg.com *MFL71977601* Copyright © 2023 LG Electronics Inc. All Rights Reserved. Printed in Korea (2301-REV00)
-
Page 2: Important Safety Instruction
Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •... - Page 3 Warning! Safety instructions • Ventilation - Install your Set-top box where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. CAUTION - Do not block or cover the product with cloth or other materials while unit is plugged in.
- Page 4 • Use only an authorized attachments / accessories grounded.) - Set-top box with a three-prong grounded AC plug approved by LG Electronics. Otherwise, this may must be connected to a three-prong grounded AC result in fire, electric shock, malfunction, or product outlet.
- Page 5 • Moving - When moving, make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to carry larger Set- top box. Do not press or put stress on the front panel of the Set-top box.
-
Page 6: Assembling And Preparing
ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. Set-Top Box Owner’s Manual Power Cord / AC-DC Adapter... -
Page 7: Parts And Components
• The items supplied with your product may vary depending upon the model. • Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions. • For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches) thick and 18 mm (0.7 inches) width. -
Page 8: How To Use Dual Lock™ (Optional)
How to use rubber pads (optional) (Image shown may differ from your product.) Attach the rubber pads to the Set-Top Box and use it when you want to. 1 Attach the rubber pads to the bottom of the product as shown in the image. 2 Press firmly the whole part of rubber pads to ensure firm fastening. -
Page 9: Optional Extras
3 After removing the protection paper from the spacer, stick it to a VESA screw hole on the back of the TV. (However, you can choose the location to attach the spacer randomly by considering the shape of the rear side of the TV and the attachment location of the Set-Top Box.) Spacer 4 After removing the protection paper from the Dual Lock™, stick Set-Top Box to the TV. -
Page 10: Making Connections
MAKING CONNECTIONS (Image shown may differ from your product.) You can connect various external devices to the product. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device. -
Page 11: Other Connections
Other Connections (Image shown may differ from your product.) Connect your Set-Top Box to external devices. For the best picture and audio quality, connect digital devices using an HDMI cable. • A separate cable is not provided. Front SI Box MPI/MTI USB IN 2 EXTERNAL... - Page 12 Back Speaker Digital Audio System TV / Monitor HDMI OUT Power Outlet TLM Cable SI Box Blu-Ray / HD Cable Box / DVD / VCR • Audio Line Out Jack should be connected with SE (Single Ended) mode 3-pin type audio cable. Use only with the 3 Pole 3.5 mm (0.1 inches) Stereo Jack.
-
Page 13: Open Source Software Notice Information
. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 14: Maintenance
The software may be updated for improvement in performance. The customer is responsible to ensure the compatibility of their equipment with any LG Electronics software. If needed, please consult LG Electronics and update new software versions according to the guidance provided by LG Electronics. -
Page 15: Specifications
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity Less than 85 % MODELS STB-600A-UB 233 x 29.8 x 180.5 (mm) Dimensions (W x H x D) 9.1 x 1.1 x 7.1 (inches) Weight 0.72 kg (1.5 lbs) - Page 16 HDMI-DTV supported mode HDMI-PC supported Mode • PC audio is not supported. Horizontal Vertical • Use HDMI IN 1 for PC mode. Resolution Frequency (kHz) Frequency (Hz) Horizontal Vertical 31.46 59.94 Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.5 640 x 350 31.46 70.09...
-
Page 17: Supported Photo Formats
Supported Photo Formats Supported Audio Formats File File Format Resolution Item Info Format Format Minimum: 64 (W) x 64 (H) Bit rate 32 kbps - 320 kbps .jpeg, Maximum (Normal Type): Sample freq. 16 kHz - 48 kHz .mp3 .jpg, JPEG 15360 (W) x 8640 (H) Support MPEG1, MPEG2 .jpe Maximum (Progressive Type): Channels... -
Page 18: Supported Video Formats
• ULTRA HD Video: 3840 x 2160, 4096 x 2160 • Some HEVC encoded ULTRA HD videos other than Extension Codec the content officially provided by LG Electronics may not be played. VC-1 Advanced Profile (except • Some codecs can be supported after a software... -
Page 19: Fcc Notice
Regulatory FCC Radio Frequency Interference Requirements (for UNII devices) (For USA) FCC Notice High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. (For USA) These radar stations can cause interference with and/ This equipment has been tested and found to or damage this device. -
Page 20: Industry Canada Statement
Industry Canada Statement RSS-247 Requirement (For Canada) (For Canada) [For having wireless function (WLAN, Bluetooth,...)] [For product having the wireless function using 5 GHz frequency bands] This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and (1) The device for operation in the band 5150–5250 Economic Development Canada’s licence-exempt MHz is only for indoor use to reduce the potential for RSS(s). - Page 21 NOTE TO CABLE/TV INSTALLER (For USA and Canada) This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
-
Page 23: Child Safety
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER TECHNOLOGY INDUSTRY CARES Manufacturers, retailers and the rest of the consumer technology industry are committed to making products safe and enjoyable. As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. - Page 24 LG Customer Information Center Supplier’s Declaration of Conformity For inquires or comments, Trade Name visit www.lg.com or call; Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building, 1-888-865-3026 USA, Commercial User Englewood Cliffs, NJ 07632 1-855-286-2456 CANADA E-mail lg.environmental@lge.com...
