NOTICE: Please check contents of package for any damage and make sure all parts fit correctly and you are
happy with the product before removing protective film. Once the film is removed you cannot return the product
Be sure to read these instructions thoroughly before opening and installing the Polycarbonate Windshield.
1. Start by pulling it out of the box and find a clean area to lay it down and install the hardware. Check
over the parts included in the cartons with the parts list shown below:
1 ¾" Loom Clamps
1" Stainless Steels Bolts
Stainless Steel Washers
Slide fasteners
Lock Nuts
Plastic Thumb Nuts
Sliding Vent Panels
52" Rubber Gasket
55" Rubber Gasket
Bent Polycarbonate Braces
Polycarbonate Windshield
If any parts are damaged or missing please contact customer service at (606) 845-7439.

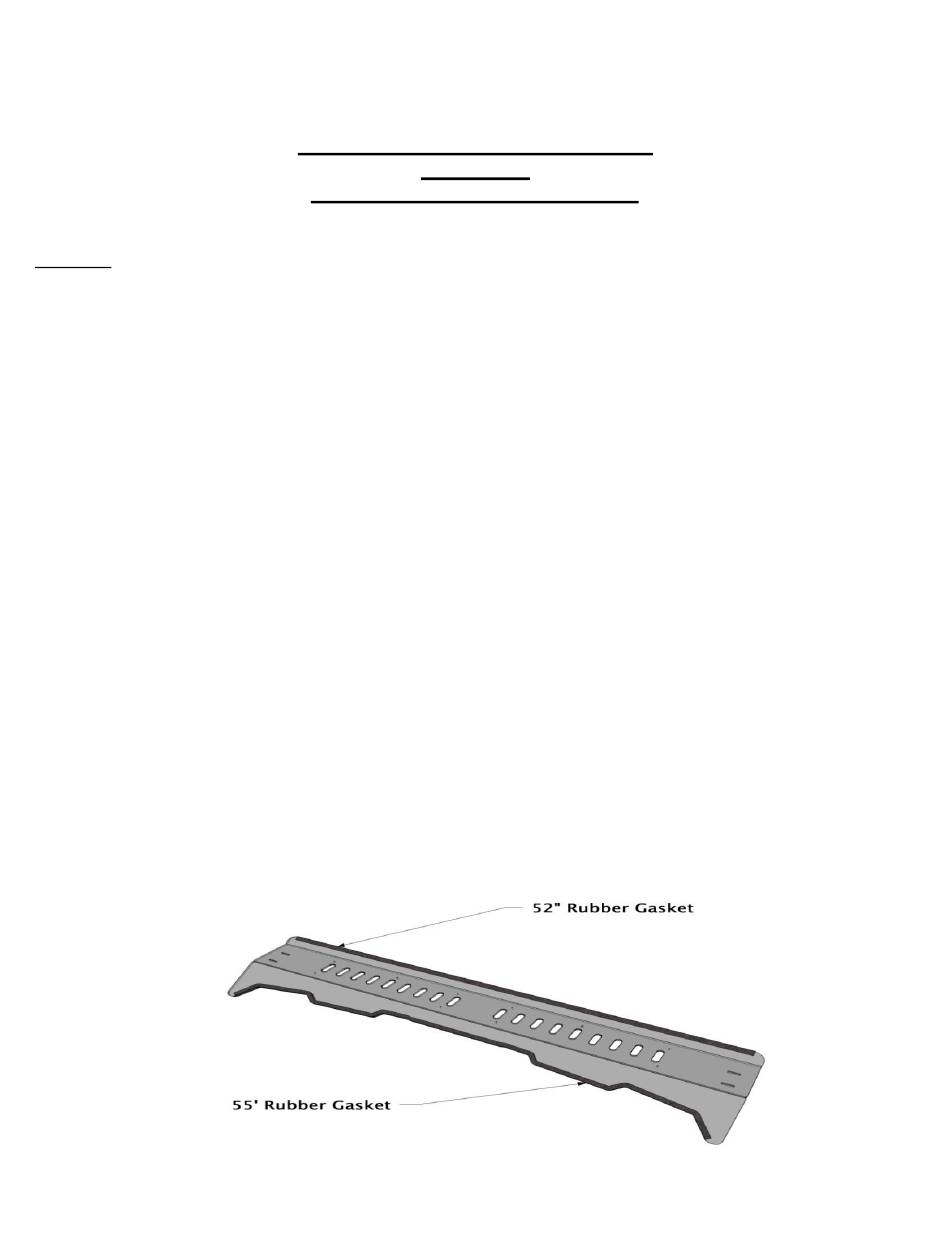

2. Next take the rubber gasket and starting at one end firmly place along entire bottom and top edges of the
lower Windshield Section. You will need to peel back the protective film from the edge to install the
gasket. If you leave the bulk of the protective film on while installing you can keep from scratching the
windshield. Please see photo below:
3. Next Install the Aero-Vent sliders as shown in the diagram on the following page.
APE OFFROAD
2515 Bypass Rd. Flemingsburg, KY 41041
606-845-7439
Instructions for Installation and Care of
Bobcat 3400
Aero-VentPolycarbonate Windshield
BC-3400-WD05
for a full refund.
8 each
14 each
20 each
8 each
4 each
10 each
2 each
1 each
1 each
1 each
2 Pieces
