Summary of Contents for Diamond Audio DPST12

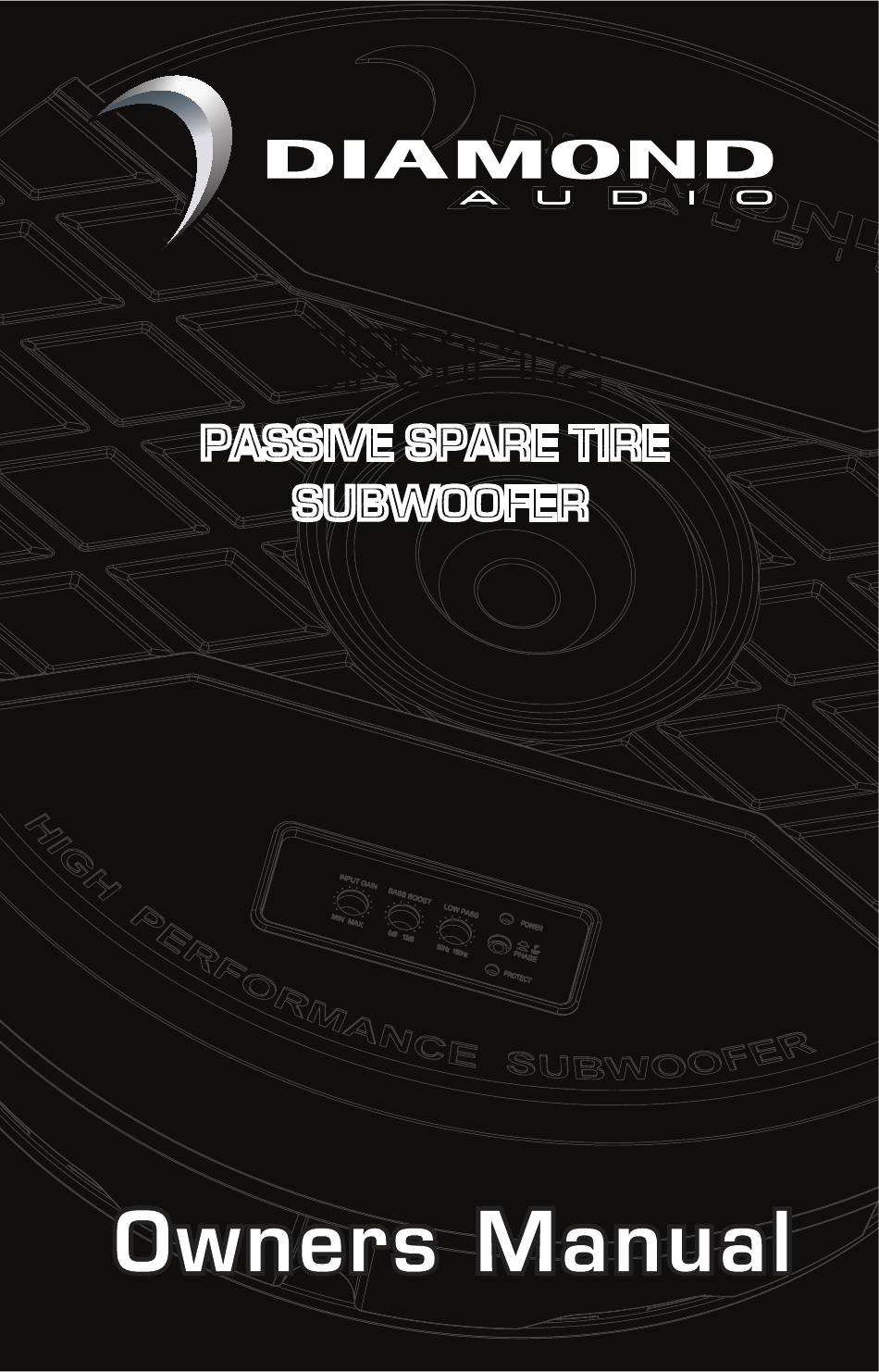

- Page 1 DPST12 DPST12 PASSIVE SPARE TIRE PASSIVE SPARE TIRE SUBWOOFER SUBWOOFER...
- Page 2 Diamond Audio Passive Spare Tire Subwoofer Thank you for purchasing a Diamond Audio Passive Spare Tire Subwoofer for your car audio system. You have chosen Diamond Audio because you deserve the best! Diamond Audio products are designed and engineered to the highest quality standards in the industry to create the ultimate listening experience in your vehicle.
- Page 3 INSTALLATION This is a VERY simple install and can fit into virtually any car made in the last 10 years. WITHOUT removing your spare tire. Follow the instructions to a SUPER easy install! 1. Remove the trunk liner. Typically it is NOT screwed or bolted down. It should simple pull out as shown below in Figure 1 The trunk: Shown is a hatchback,.
- Page 4 1. IF your spare tire is Deep Side UP then you need to unbolt it and flip it over so the DPST12 can sit inside of it. (See Figure 2) Figure 2 NO NEED TO FLIP OVER THE SPARE TIRE 2.
- Page 5 CERWIN VEGA REPLACEMENT ABS NUT (included) CONNECTING WIRING HARNESS 1. The DPST12 should be mounted into the spare tire area at this point. 2. Plug the speaker wire connector into the port in the handle area of the enclosure. Figure 5...
- Page 6 WARRANTY 3761 South Hill St. Los Angeles, CA 90007...
- Page 7 NOTES...
- Page 8 3761 South Hill St. ©2021 CVDA Inc. All Rights Reserved. Los Angeles, CA 90007 (a division of CV & DA Holdings, Inc.) ©2021 Diamond Audio. All Rights Reseved. (a division of CV & DA Holdings, Inc.)
