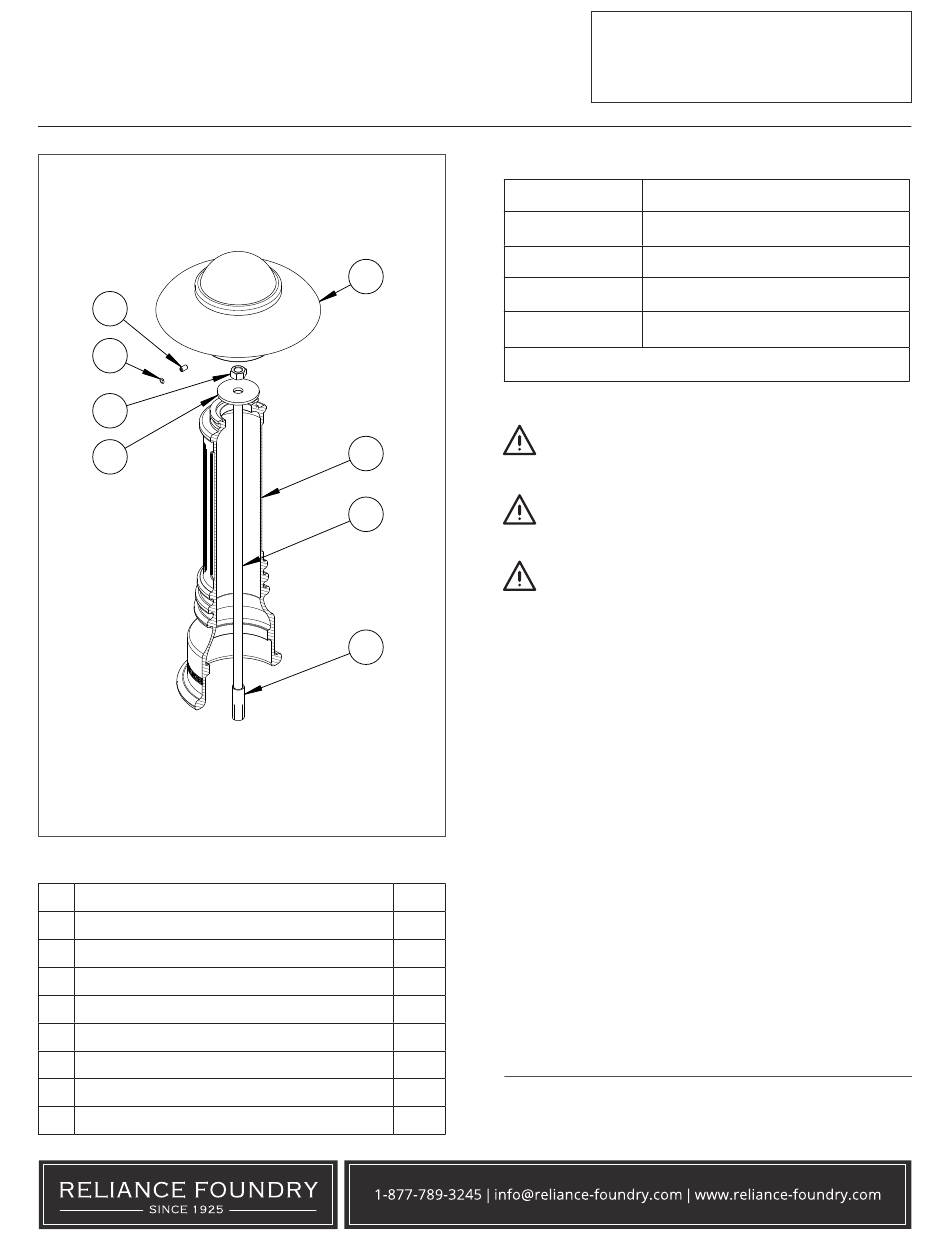

Reliance Foundry R-7598 Installation

R-7598
Decorative Bollard Installation
7
8
6
5
Parts List
PART
#
Bollard Base
1
Bollard Cap
2
Drop-In Concrete Insert 3/4"
3
Threaded Rod 3/4"
4
Washer 3/4"
5
Hex Nut 3/4"
6
Hexagon Socket Set Screw
7
8 Plastic Plug
Installation Equipment
Chalk
Hammer
Vacuum
2
3/16" Hex Key
Level
3/4" Insert Setting Tool (or equivalent)
1
4
3
Before Installation
STEP 1: Always check for hazards such as water pipes,
gas lines, and underground wiring before drilling.
QTY
STEP 2: Use a broom or pressure washer to clean the
1
concrete surface prior to bollard installation.
1
STEP 3: Study the site plans to locate and mark the
1
precise center point of each bollard. For secure
1
installation, ensure there is a minimum radius
1
solid concrete around each mark.
1
3
*Concrete insert manufacturers such as www.ucanfast.com
recommend specific measurements for minimum radii.
3
1-877-789-3245 | info@reliance-foundry.com | www.reliance-foundry.com
Drop-In
Concrete Insert
1" Masonry Drill Bit
1-1/8" Socket Wrench
Hammer Drill or Rotary Hammer
Measuring Tape
Broom/Pressure Washer
To protect the finish, keep bollards in packaging
until exact moment of installation.
Handle with care to avoid scratching or damaging
bollard surfaces as abrasions will lead to rust.
Once scratched, bollards cannot be repaired to
original form without re-finishing the entire surface.
