Summary of Contents for TYLZA KM40FT

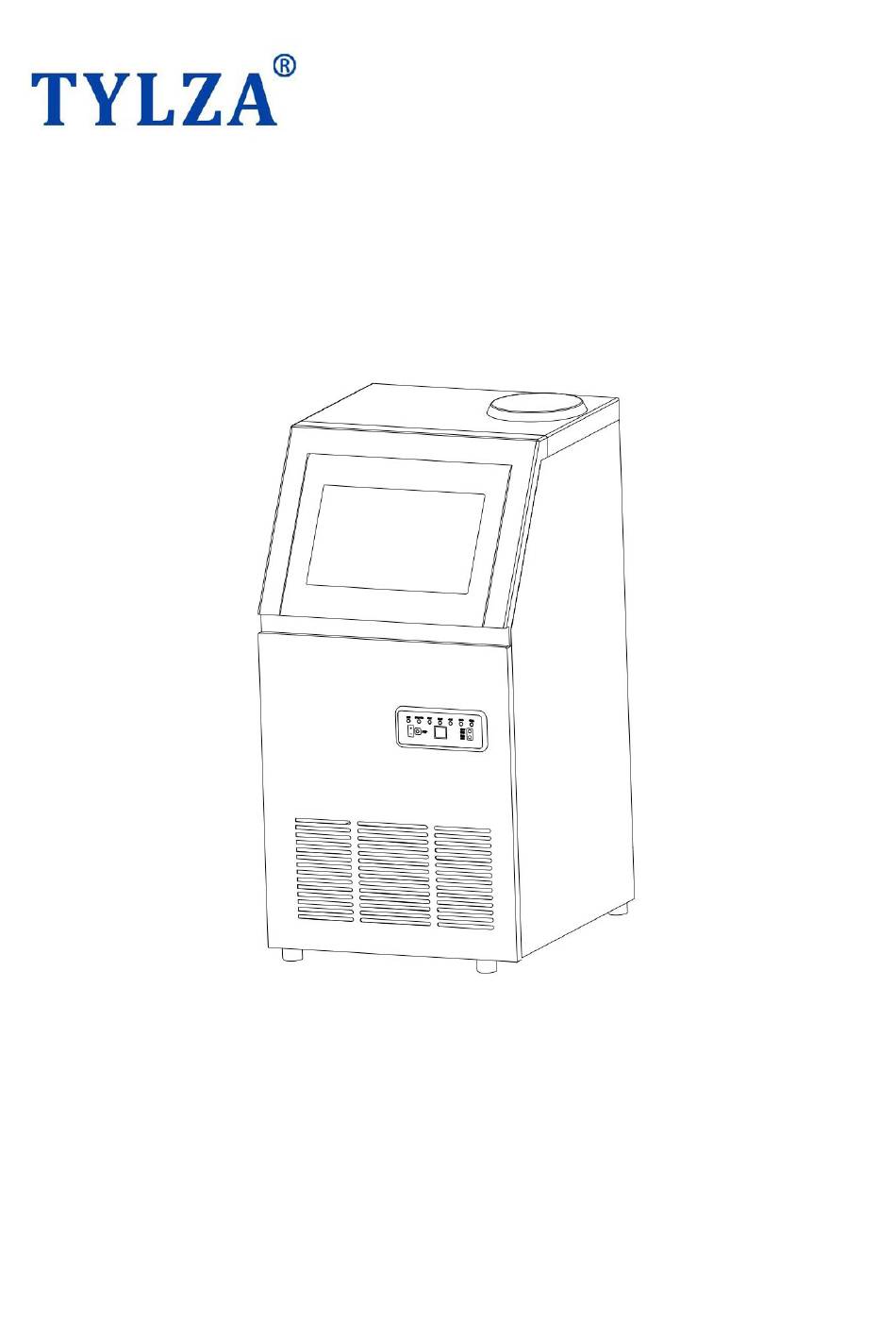

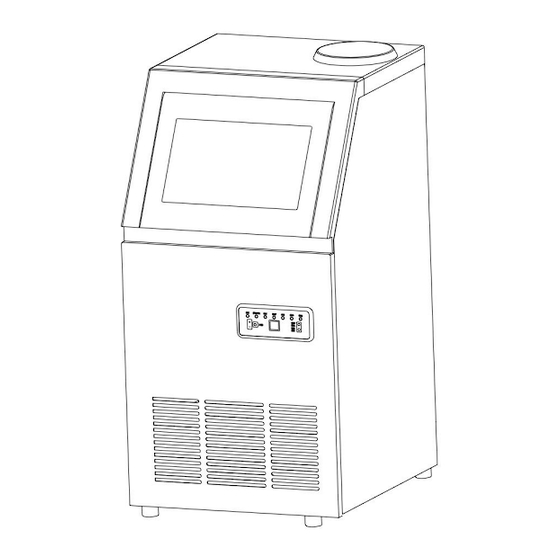

- Page 1 Instruction Manual ICE MAKER Model: KM40FT It is important that you read these instructions carefullyand keep it for future reference. Support email: support@itylza.com Phone number: +1(213)352-5535 Website: https://itylza.com/...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed to reduce the risk offire,electric shock,andinjury to personsorproperty. Read all instructions before operating the machine for the first time. CAUTION: ICE CAN’T BE STORED IN THE ICE BIN DURING NIGHT-TIME, IT’S NOT FRIDGE, ICE WILL BE MELTED TO WATER AND FLOW OUT OF THE MACHINE. -
Page 3: Operating Procedures
16. This unit should be properly grounded for your safety. The power cord is equipped with a three-prong plug mated with standard three-prong wall outlets to minimize the possibility of electric shock. 17. Plug your appliance into a dedicated, properly installed, and grounded wall outlet. Do not, under any circumstance power and /or grounding should be directed toward a certified electrician. -
Page 4: Package Contents
Package Contents Ice maker machine x 1 Warm Tips： Check whether all below accessories are included. Accessories lis Description Picture Usage Manual Operation manual Filter Filter water Drainage pipe Drain Ice spoon Take ice cubes nylon cable ties Fix pipe if needed 2PCS fasten the outlet and the drainage Hoop... - Page 5 CONNECTING YOUR ICE MAKER WITH OTHER PARTS Please connect your ice maker with other parts by referring the diagram below.
- Page 6 Connect drainage pipe and water intake pipe Warning:1)The machine can only connect with drinking water sources,and must meet local drinking water standards 2)The water pressure must be in 14.5-58psi,if exceed 58psi,a pressure reducing valve must be connected. 3) Drainage:The outlet of the drainage pipe must be lower than the outlet on the machine If you have questions about the connection, we can send the tutorial video to guide you, please contact: support@itylza.com, phone number is +1(213)352-5535...
- Page 7 USING BARRELED WATER AS WATER SOURCE You can use barreled water as water source. Please remember to replenish water regularly. Besides, please rotate the blue control switch vertical and turn off the pipe water supply. 1. If you use water faucet as water source, please ensure that the water faucet is open for continuous water supply.
-
Page 8: Machine Operations
MACHINE OPERATIONS Operation Panel Ice making operation: Connect the machine to the power and press the “ON/OFF” button. The “ice making” indicator will light Through “+”/”-” to increase or decrease ice making time ,which will be effected at the current cycle . Press “+”... -
Page 9: Cleaning And Maintenance
Notes: (1) If you change the countdown time during the middle of the ice making procedure, it will take effect at the next loop. You can long press the “HOT” button during the ice making to unload the ice cubes ahead of time. (2) The surrounding environmental temperature will influence the time needed for ice making. - Page 10 Common malfunction analysis Evaporator connector didn't Ice full Re-install the connector assemble well indicator is on,and Proximity switch is not Replace the switch proximity sensitive switch didn't The connector didn't return to Take away the ice to make the connector react original position return to original position...
-
Page 11: Circuit Diagram
Circuit Diagram...
