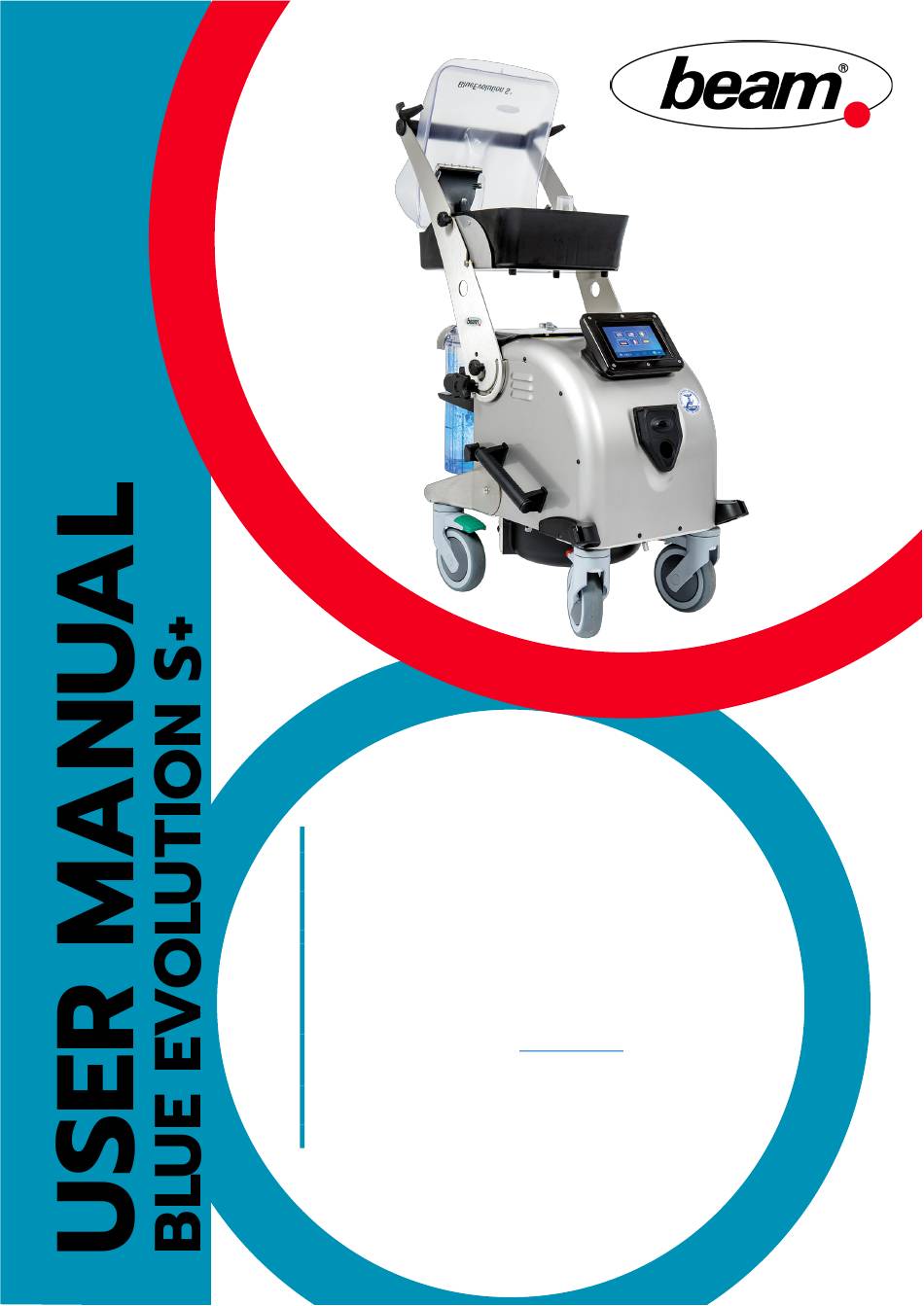

- Page 1 GmbH MANUFACTURER FROM SERIAL NUMBER 21/R0-30001 VERSION 17.11.2022 ISSUE DATE ADDRESS Illertalstraße 3 DE 89281 Altenstadt info@beam.de +49 8337 7400-0 Robert Wiedemann MANAGING DIRECTOR Marco Wiedemann...
- Page 2 EDITING & VISUALISATION Manual pilot Arrange a consultation: +49 176 61370152 https://www.manualpilot.de/ © Copyright by...
- Page 3 For better representation, components have been removed or modified in some graphics. The claim of the company beam GmbH is to always provide the best product for its customers. It is therefore possible that changes and improvements made after this manual was published are not included.
- Page 4 For this, we need your support. We would be very happy to receive your feedback. Simply copy or scan this page and send it to the contact details below. Contact beam GmbH Illertalstraße 3 DE 89281 Altenstadt info@beam.de...
-
Page 5: Table Of Contents
Product description ___________________________________________________ 6 Complete overview of the basic device ______________________________________ 6 Technical Specifications ___________________________________________________ 7 Declaration of Conformity _________________________________________________ 8 Security _____________________________________________________________ 9 Legend of warnings ______________________________________________________ 9 Legend of symbols ______________________________________________________ 10 Warnings ______________________________________________________________ 10 Operating conditions ____________________________________________________ 11 Storage conditions ______________________________________________________ 11 Description of user and specialist __________________________________________ 11 2.6.1... - Page 6 3.4.3 Functions ________________________________________________________________ 30 3.4.4 Activate the steam function _________________________________________________ 31 3.4.4.1 Deactivate the steam function _____________________________________________ 32 3.4.5 Activate the hot water function ______________________________________________ 32 3.4.5.1 Deactivate the hot water function __________________________________________ 34 3.4.6 Activate the suction function ________________________________________________ 34 3.4.6.1 Deactivate suction function _______________________________________________ 35 Decommissioning ______________________________________________________ 35...
-
Page 7: Product Description
1 Product description 1.1 Complete overview of the basic device Figure 1.1-1 Complete overview of the basic device Handle Filling openings cover Accessory box Star nut accessory box (both sides) Display Support arm (both sides) Hose connection Filter tank Carrying handle (both sides) Main switch Soundproof housing Directional lock rear wheel (both... -
Page 8: Technical Specifications
1.2 Technical Specifications Name Unit Value (including tolerance) Nominal voltage V in AC 220-240 50/60 Overall performance 3500 Nominal input of stainless 2200 steel boiler Nominal input of engine 1050 Noise development 74.5 Automatic refill system (optional) Maximal steam temperature °C Maximal pressure steam Unterdruck (Wassersäule) -
Page 9: Declaration Of Conformity
1.3 Declaration of Conformity Figure 1.3-1 Declaration of Conformity © Copyright by... -
Page 10: Security
2 Security 2.1 Legend of warnings This warning sign warns of possible dangers. To avoid death, injury and damage, follow all measures marked with this warning sign without exception. The level of danger differs as follows: DANGER Serious injuries or danger to life! The keyword “Danger”... -
Page 11: Legend Of Symbols
2.2 Legend of symbols Symbol Function Prerequisite for action ◼ Shows conditions for subsequent actions. Call to Action ➔ Prompts the operator for an action Action result Shows the result of a previous action. − Count Structures several points of a list. Table 2.2—1 Legend of symbols INFO Displays useful and helpful information or tips and recommendations. -
Page 12: Operating Conditions
Injuries. ➔ Check the device for proper condition before each use. If the device has defects: ➔ Leave the status of the device unchanged. ➔ Contact beam service centre. 2.4 Operating conditions Operate the device under the following conditions: −... -
Page 13: User
Ensures that maintenance and care intervals are followed. 2.6.5 Intended use The beam Blue Evolution S+ Touch is used for the environmentally friendly cleaning of a wide variety of materials and surfaces with clear water. To ensure proper use, comply with the following points: −... -
Page 14: Disposal
2.6.7 Disposal Dispose of the device and device components as follows: − Ensure that individual components are properly disposed of at the end of their useful life. − Ensure that the device is properly disposed of at the end of its useful life. −... -
Page 15: Install Support Arms With Handle
3.2.1 Install support arms with handle Figure 3.2-1 Assemble the support arms and handle Star nuts carrier arm (both sides) Hanging grooves (on both sides) Star nuts small (on both sides) Washers (on both sides) Carrier arm Ensure that the following components are available: −... -
Page 16: Assemble The Accessory Box
3.2.2 Assemble the accessory box Figure 3.2-2 Assemble the accessory box Accessory box Washers (on both sides) Star nut accessory box (both sides) Pegs Carrier arm Ensure that the following components are available: − Accessory box 2 − Star nut accessory box 10 −... -
Page 17: Commissioning
3.3 Commissioning 3.3.1 Establish power supply Figure 3.3-1 Establish power supply Safety plug ATTENTION Faulty power supply! Damage. ➔ Make sure that the mains voltage of the socket corresponds to the nominal voltage of the device. ➔ For detailed information see 1.2 Technical Specifications. ➔... -
Page 18: Fill The Storage Tank And Hot Water Module
ATTENTION Filling medium not allowed! Damage to device! ➔ Use tap water. If tap water is very calcareous: ➔ Use pre-filter for decarbonisation. beam GmbH recommends: − Brita filter cartridge ➔ Order a pre-filter at https://www.dampfsauger- beam.de/startseite/. © Copyright by... -
Page 19: Filter Tank
➔ Open the cover of the filling openings 9 ➔ Remove the cap for the hot water module 30. ➔ Fill with water. ➔ Attach the closure for the hot water module 30. ➔ Close the cover of the filling openings 9. 3.3.3 Filter tank Figure 3.3-3 Filter tank Filter tank... -
Page 20: Remove Filter Tank
3.3.3.1 Remove filter tank Figure 3.3-4 Remove filter tank Filter tank Filter cover Filter cover lock (both sides) Level mark Filter tank lock (both sides) ➔ Release and unhook the filter tank locks 35 on both sides. ➔ Remove filter tank 12 to the rear. 3.3.3.2 Remove filter cover ➔... -
Page 21: Insert Filter Tank
3.3.3.4 Insert filter tank Figure 3.3-5 Insert filter tank Control nut Control bar ➔ Make sure siphon 38 is properly installed. ➔ Insert filter tank 12 on the device. ➔ Make sure that the control bar 41 has entered the control groove 40. ➔... -
Page 22: Connect Steam And Suction Hose
INFO Spare parts and accessories. ➔ Order spare parts and accessories in the online shop. ➔ See https://www.dampfsauger-beam.de/startseite/ INFO Maintenance and Care. To ensure function and long service life, observe the following points: ➔ Check accessories regularly to ensure they are in perfect condition. -
Page 23: Accessories On Hand Control Unit
Insert accessories: ➔ Insert accessories professionally. ➔ Make sure release button 54 is locked in place. Remove accessories: ➔ Press and hold the release button 54. ➔ Remove accessories. 3.3.5.1 Accessories on hand control unit The following accessories can be attached directly to hand control unit 53: −... -
Page 24: Accessories On Extraction Nozzle Wide
Attachment Name Field of use Point jet nozzle Spot jet nozzle can be combined with the following attachments: − Round brush set small − Round brush large − Corner brush − Crevice nozzle narrow ➔ See 3.3.5.5 Accessories on point jet nozzle. -
Page 25: Accessory On Extraction Nozzle Narrow
Attachment Name Field of use Silicone lip with − Glass surfaces brush attachment − Store window − Window − Mirror Rubber lip Hard floors like: attachment − Tiles, granite, marble − Wooden floors − − Laminate Brush attachment Pre-cleaning of heavily soiled surfaces such as: −... -
Page 26: Accessories On Floor Nozzle
− Rubber lip attachment − Nylon brush attachment Attachment Name Field of use Silicone lip with − Glass surfaces brush attachment − Window − Mirror Rubber lip Almost all surfaces such as: attachment − Window frames, window sills − Room doors −... - Page 27 Picture 3.3-11 Attachment and adapter Adapter Locking sleeve Attach adapter and attachment: ➔ Insert adapter 58 into the floor nozzle properly. ➔ Turn locking sleeve 59 90 degrees clockwise. Adapter 58 is locked. ➔ Open lock: See Figure 3.3-10 Open and close the attachment. ➔...
-
Page 28: Accessories On Point Jet Nozzle
Attachment Name Field of use Glide attachment − Carpeted floors − Mats − Vacuum dry Table 3.3—5 Accessories on floor nozzle 3.3.5.5 Accessories on point jet nozzle ATTENTION Sensitive surfaces! Damage. ➔ Only use round brushes and corner brushes on non-sensitive materials. -
Page 29: Operation
Attachment Name Field of use Round brush set − Improvement in cleaning of stubborn small dirt Round brush − Improvement in cleaning of stubborn dirt Corner brush − Improvement in cleaning of stubborn dirt − Hard-to-reach corners Crevice nozzle − Spot suction narrow with silicone −... -
Page 30: Turn On The Device
3.4.1 Turn on the device Figure 3.4-1 Switch on the device Main switch Switch position ON Switch position OFF Ensure that the following requirements are met: Power supply is established ◼ Steam and suction hose is connected ◼ ➔ Set the main switch 13 to the ON position 61. ... -
Page 31: Overview Display
Display temperature OFF button Status display Suction button Display pressure Menu button Extract button Steam button INFO Factory setting. Display switches to energy-saving mode after 60 seconds of inactivity. 3.4.2.1 Overview display Position Name of the item Function Display temperature Shows current operating temperature in °C. -
Page 32: Activate The Steam Function
3.4.4 Activate the steam function Figure 3.4-3 Activate the steam function Control panel Trigger lever Safety button Connection accessories CAUTION Escaping hot steam! Injuries. ➔ Ensure that people and animals are protected from the steam jet. CAUTION Improper use! Injuries. ➔... -
Page 33: Deactivate The Steam Function
Device heats up. Steam button 107 lights up. Display temperature 100 shows current value. Display status 101 shows heating status. Steam button 107 flashes until the operating temperature is reached. ➔ Unlock safety button 111. ➔... - Page 34 ATTENTION Sensitive materials! Property damage. ➔ Only use hot water on non-sensitive materials. INFO Heavy contamination. The flushing effect of the hot water with steam increases the cleaning performance. Ensure that the following requirements are met: Device is switched on. ◼...
-
Page 35: Deactivate The Hot Water Function
3.4.5.1 Deactivate the hot water function ➔ Press the hot water button 116. Hot water outlet stops. Control lamp 115 on the hand control unit goes out. 3.4.6 Activate the suction function Figure 3.4-7 Activate the suction function Control panel Trigger lever Safety button... -
Page 36: Deactivate Suction Function
Figure 3.4-8 Set the suction power Small suction power High suction power Medium suction power 3.4.6.1 Deactivate suction function INFO Residual liquid in the suction line. ➔ Leave the suction function activated for around 30 seconds after the suction process is complete. ... -
Page 37: Clean Attachments
3.5.2 Clean attachments 3.5.2.1 Clean steam and suction hose and accessories Figure 3.5-1 Clean the steam and suction hose and accessories Suction button Suction button Control panel INFO Heavy foam formation. If the rinsing process foams a lot: ➔ Repeat the rinsing process with clear water. Ensure that the following requirements are met: Filter tank 12 is empty. -
Page 38: Clean The Filter Tank
The device vacuums. ➔ Suck cleaning agents or disinfectants completely with used accessories and the steam and suction hose. The steam and suction hose and accessories have been cleaned. ➔ Deactivate suction function. ➔ See 3.4.6.1 Deactivate suction function. ➔... -
Page 39: Malfunctions
3.6 Malfunctions 3.6.1 Error codes on display Figure 3.6-1 Error codes on display Error code display Troubleshooting indicator Error code 130 display shows the error code that has occurred. Troubleshooting indicator 131 displays troubleshooting actions. ➔ Press Troubleshooting indicator 131 on display for more information. ... -
Page 40: Malfunctions
3.6.2 Malfunctions Error image Possible Cause Troubleshooting Unit produces little or no Hot water module 30 is ➔ Descale hot water steam. calcified. module 30. The appliance produces little ➔ See 4.2 Hot water hot water or no hot water. module. - Page 41 Situation when the device Safety precaution Remedial action is active − Filter tank 12 is removed. The following safety ➔ Insert filter tank 12 − Filter tank 12 becomes precautions are active: properly. loose due to improper − Contact switch is ➔...
-
Page 42: Maintenance
4 Maintenance 4.1 Document maintenance Activity Date Remark Name of maintenance personnel Hot water module Boiler O-rings Filter Miscellaneous Hot water module Boiler O-rings Filter Miscellaneous Hot water module Boiler O-rings Filter Miscellaneous Hot water module Boiler O-rings Filter Miscellaneous Hot water module Boiler O-rings... -
Page 43: Hot Water Module
4.2 Hot water module INFO Calcification caused by use. ➔ Prevent operational disruptions caused by limescale deposits: Descale the hot water module regularly. 4.2.1 Prepare hot water module for maintenance 4.2.1.1 Remove the sound-insulated housing Figure 4.2-1 Remove the sound-insulated housing Soundproof housing Star screw Ensure that the following requirements are met:... -
Page 44: Empty The Hot Water Module
4.2.1.2 Empty the hot water module Figure 4.2-2 Empty the hot water module Drain plug storage tank hot water module INFO Labelling. Drain screw storage tank hot water module 151 is labelled with “Hot Water Extraction”. Ensure that the following requirements are met: Power supply is disconnected. - Page 45 ➔ Adjust the descaling interval according to the local water hardness. Figure 4.2-3 Rinse the hot water module Filling openings cover Hot water module INFO beam GmbH recommends: durgol descaling agent ➔ Order descaler in the online shop. ➔ See https://www.dampfsauger-beam.de/startseite/ Ensure that the following requirements are met: Power supply is disconnected.
-
Page 46: Boiler
➔ Activate the hot water function. See 3.4.5 Activate the hot water function. ➔ Squirt the complete mixture into a collection container. ➔ Repeat the process until no more lime comes out. ➔ Dissolve heavy limescale deposits: Increase exposure time. ... -
Page 47: Descale The Boiler
Figure 4.3-1 Empty storage tank Drain plug Water only INFO Labelling. Water only Drain plug 152 is labelled “Water only”. Ensure that the following requirements are met: Boiler temperature is below 50°C. ◼ Power supply is disconnected. ◼ A suitable collection container is available. ◼... -
Page 48: Start Cleaning The Boiler
Figure 4.3-2 Fill in descaler Filling openings cover Storage tank INFO beam GmbH recommends: durgol descaling agent ➔ Order descaler in the online shop. ➔ See https://www.dampfsauger-beam.de/startseite/ 4.3.2.1 Start cleaning the boiler CAUTION Cancellation of the cleaning programme! injuries and property damage. - Page 49 ➔ Turn on the device. ➔ Press the Menu button 106 on the display. See 3.4.2.1 Overview display. ➔ Press the maintenance button on the display. Figure 4.3-3 Select descaling programme Programme selection Up button Down button ➔ Press Down button 154 or top button 155 on the display until the start descaling programme is shown in programme selection 153.
-
Page 50: Empty The Boiler
4.3.2.2 Empty the boiler Figure 4.3-5 Empty the boiler Boiler drain plug Ensure that the following requirements are met: Boiler has cooled down. ◼ Device is switched on. ◼ A suitable collection container is available. ◼ A suitable tool for drain plug boiler 160 is available. ◼... -
Page 51: Filters And O-Rings
Rinsing process 1 starts. Rinsing programme runs for 9 minutes When the programme ends, an acoustic signal sounds. Message E013 is shown on the display. ➔ Empty the boiler: See 4.3.2.2 Empty the boiler. ➔ Empty storage tank 31: See 4.3.1.2 Empty storage tank. ... -
Page 52: Maintenance Of O-Rings
INFO Spare parts and accessories. ➔ Order spare parts and accessories in the online shop. ➔ See https://www.dampfsauger-beam.de/startseite/ INFO Maintenance and Care. To ensure function and long service life, observe the following points: ➔ Check O-rings regularly to ensure they are in good condition. -
Page 53: Change The O-Rings On The Suction And Steam Hose
O-ring suction tube O-rings nozzle tube (2x) ➔ Perform visual inspection. ➔ If necessary, replace the O-ring in suction tube 170. ➔ If necessary, replace O-rings on nozzle tube 171. 4.4.2.2 Change the O-rings on the suction and steam hose Figure 4.4-3 Change the O-rings on the suction and steam hose O-rings nozzle tube (2x) O-ring suction tube... - Page 54 © Copyright by...
- Page 56 GmbH Illertalstraße 3 89281 Altenstadt verkauf@beam.de +49 8337 74000 https://www.dampfsauger- beam.de/de © Copyright by...
