Summary of Contents for BOLD UNPLUGGED 160 29

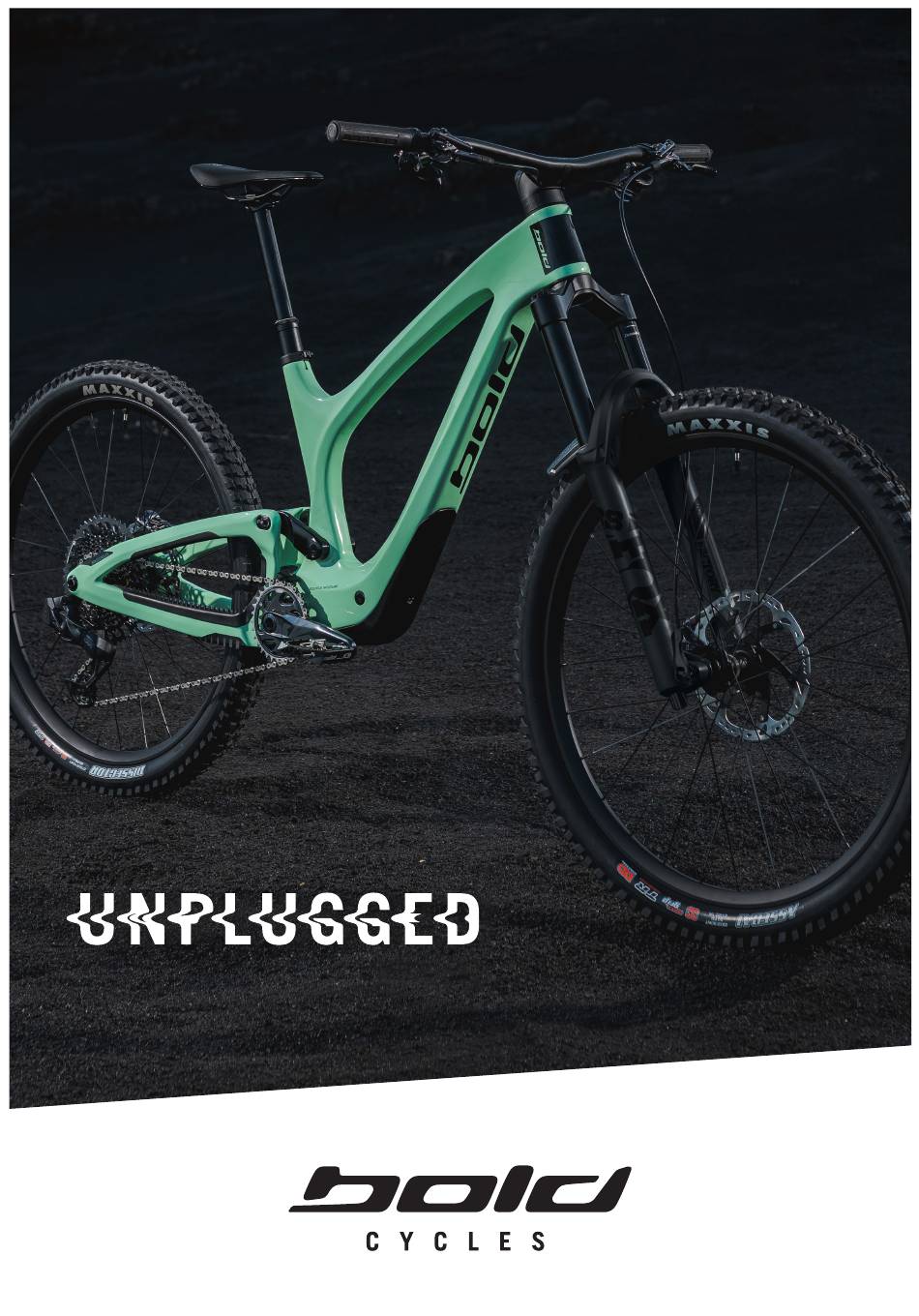

- Page 1 MANUAL...
-
Page 2: Technical Data
Hardware M/Frame: Trunnion clearance is adequate throughout the tyres rotation. Hardware Linkage: 17 x 8mm BB Housing: 92x41mm Chainring Max: 34 Tooth Tyre Width Max: 2.5 Inch Geometry: BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH... - Page 3 TRAIL 139 / 129 139 / 129 139 / 129 139 / 129 FORK LENGTH 583.7 583.7 583.7 583.7 CRANK LENGTH 170.0 170.0 170.0 170.0 FORK OFFSET 44.0 44.0 44.0 44.0 BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 4 MANUAL FOR SAFE PRATICE. 10 Nm ANTI SEIZE REQUIRED TASK DIFFICULTY TORQUE AMOUNT Nm GREASE NO GREASE CARBON GREASE THREADLOC ALLEN KEY SIZE MM BEARING FIT T 25 TORX TOOL SIZE TORQUE CHECK BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 5 Hangers & Axles: The Unplugged has only one option of the rear hanger, this is the Sram UDH available from Sram and Bold (only if your local agent cannot supply). UDH note no grease on fitting and correct torque 25 Nm reverse thread.
- Page 6 The brake caliper mount is a standard post mount 180mm with no adapter. Chainguide & Protection: The Unplugged chainguide has a maximum chainring size of 34T. 297742 - BLD CHAINGUIDE KIT UNPLUGGED 23 BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 7 Chainguide & Protection: There are two protection kits available. 297496 - BLD C-STAY S-STAY PROTECTOR UNPLUGGED 23 Protection kit. 297744 - BLD PROTECTION SET UNPLUGGED RT 23 BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
-
Page 8: Dropper Seatpost
The Unplugged has a Syncros dropper in 34.9mm, there will be 2 service kits available. 297733 - SCO SEATPOST SERV. CART KIT DUNCAN 1.5 297734 - SCO SEATPOST SERV. SEAL KIT DUNCAN 1.5 BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH... - Page 9 290060 SCO HEADSET CUP KIT SPARK 22 Frame size: Do not use a standard headset tool to remove these plastic headset cups. Small: HT090 Med: HT105 Large: HT115 XLarge: HT 135 Slacker Steeper BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
-
Page 10: Cable Routing
Please ensure all cables are away from any moving components. All cables & hoses will run above the “Save the day kit” and the cable plate. Gear shifting is wireless only. Rear Brake BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH... - Page 11 Cable Routing: Dropper Seatpost Tracloc BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 12 Cable Routing: Cable Plate: Green Dropper Seatpost: Red Rear Brake: Blue Tracloc: Yellow The Unplugged has one swingarm cableguide for the rear brake hose. 421510 - BLD CABLEGUIDE R-BRAKE UNPLUGGED 23 BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 13 297748 BLD - CABLE/SHOCK DT COVER UNPLUGGED 23 Bottle Mounting: The UNPLUGGED will only accommodate one bottle on the downtube. BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 14 297745 - BLD SAVE THE DAY KIT 2.0 Shock / Suspension / Pivots / linkages: The rear shock has a tracloc system, this will incorporate the dropper seatpost as well. 291219 - BLD TRACLOC LINKIN 22 BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 15 EYE 2 EYE 185mm REMOVE THE SAG RUBBER, NOT TO BE USED There are three linkage sets for the Unplugged. The upper linkage set. 297739 - BLD LINKAGE UPPER UNPLUGGED 23 BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 16 297740 - BLD LINKAGE LOWER OUTER UNPLUGGED 23 297741 - BLD LINKAGE INNER UNPLUGGED 23 291285 - BLD SHOCK MOUNT BOLT KIT LINKIN 22 BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 17 KIT UNPLUGGED 23 The bearings will be five different types. CHAINSTAY FRONT RIGHT-X1- 19X10X8MM (3800) CHAINSTAY FRONT LEFT-X1-26X10X8MM (6000) BB LINKAGE-72X55X9MM-X2-(6811) UPPER LINKAGE / SEATSTAY-X2- 22X10X6MM (9600) UPPER LINKAGE/ SEATTUBE-X2- 32X20X7MM (6804) BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 18 Then sit on the bike, this will allow the linkage to push the magnet into place. BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 19 SAG can be checked. Adjust the shock pressure as required. Suspension Overview: MAIN PIVOT BB / CHAINSTAY The Unplugged has a simple bearing system which is easy to maintain. BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 20 Suspension Overview: TOP LINKAGE / SEATSTAY SHOCK MOUNTING BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 21 0.4°. T 30 Loosen and remove the right flip chip bolt on the upper pivot of the seatstays. Then loosen and remove the left side Flip Chip bolt. BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 22 (29”/27.5”). Left & right specific. By flipping the inner chip you can set the bottom bracket & head angle to either a high or low setting. BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 23 T 30 Re-tighten the Flip Chip bolt once your choices have been made, high or low setting and wheels size. BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 24 Flip Chip: Reset the Flip Chip bolt torque T 30 to 16Nm. BOLD UNPLUGGED MY23 / English BOLD TECH MANUAL ENGLISH...
- Page 25 The manufacturer’s guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the Bold bicycle is not serviced at least once a year by an authorized Bold dealer.
- Page 26 Any liability shall be exempted. Products shown may not be available in all regions, please check with your local SCOTT retailer for availability. BOLD CYCLES SCOTT SPORTS SA Route du Crochet 11 1762 Givisiez Switzerland www.scott-sports.com...
