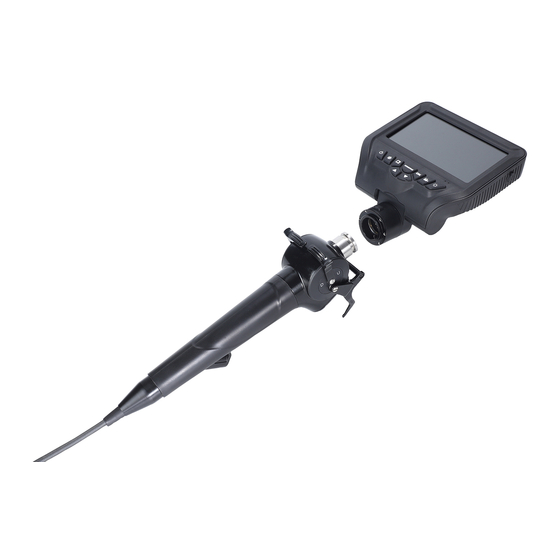

- Page 1 Handheld videoscope MG series...
-
Page 2: Safety Recommendations
Safety Recommendations In order to avoid harm to you and others and affect the service life of this equipment, please read and observe the following "safety precautions” before use. The safety precautions are divided into "warning" and "danger" for explanation. Incorrect operation may cause damage to the equipment Do not stretch or twist the insertion tube of the device with great strength, otherwise it may cause damage to the tube. -
Page 3: Packing List
Packing List Carry case Monitor Probe unit Micro SD card HDMI Cable Cleaning cloth &Cotton swab User’s manual Card reader Charger Parts function... - Page 4 Monitor ① Menu ⑥ OK ② Playback ⑦ Video ③ Freeze ⑧ Dimmer ④ Power OFF/ON ⑨ Downward ⑤Upward menu ⑩ Lock Button Side view ⑪USB Port ⑫HDMI Jack ⑬Micro SD Card Slot ⑭Reset ⑮12V DC In...
-
Page 5: Quick Setup
Probe unit ⑯Connector ⑰Control Stick ⑱Hook ㉑Image Brightness ⑲Working Channel ㉒Snap ⑳Insertion Tube Quick Setup Connecting monitor and probe unit Put the connecting parts close facing , align the lock button and the hole on the probe side , press lock button ,plug in with a clack ,release the lock button , the two parts will be combined securely . -
Page 6: System Setting
Hook and lock function The hook is not only for ease to hang up, it is also a lock lever allow you to fix control stick at certain position . Turn the hook downwards , increased friction to curb movement of control stick . turn it upwards to release control stick . - Page 7 Light Frequency To select light frequency 50Hz or 60Hz. Power Save Disable this function. 5min Automatically power off when there is no operation for 5minites . Automatically power off when there is no operation for 10minites. Automatically power off when there is no operation for 30minites. Text Set：...
-
Page 8: Image Setting
Language Enter the language setting , with to select the language wanted， and press the OK key to confirm. Format This operation will clear all the contents on the Micro SD memory card and cannot be restored. Please operate with caution! Reset All Operate this item to restore the device to the factory settings. - Page 9 Audio The item allows record sound and video simultaneously, you can choose turn on or off this function. Mirror& Flip Mirror image disable Mirror Mirror image, vertical symmetry Flip Mirror image, horizontal symmetry Mirror&Flip Mirror image, both horizontal and vertical symmetry Image viewing and recording Zoom and freeze In preview mode, press...
- Page 10 The color indicates camera angle related to horizon. （Needing to clarify this part） Uptrend Camera Horizontal Downtrend Take picture and video recording Power on the device, enters preview mode, real time image appears on screen, press behind the probe unit to take snap shot,or press to take video.
-
Page 11: Storage And Maintenance
Press OK to back-forward,repeatedly press OK to get 2x,4x,6x speed. Press to pause or continue to play . Press to fast -forward , repeatly press to get 2x, 4x,6x,8x speed. Press to go back previous interface . Protect&Delete In the image viewing mode , select a picture or video file , press MENU to enter the item of Protect and Delete . - Page 12 Cleaning unit body Wipe with soft cloth dampened with clean water, and wipe with clear and dry cloth. 2. Storage precautions Store the instrument under normal room temperature and humidity. Straighten angulation section while lay into carrying case. Store the equipment at a clear, dry and stable place. Q &...
-
Page 13: System Parameters
System parameters 5’’ TFT LCD LCD Panel Support MicroSD Card , HDMI output Lithium battery 2600mAh 7.4V Power source AC adapter: Input 100-240VAC Output 12VDC 2A Effective pixels 2,000,000 Depth of view 10-100mm 90degree Field of view JPG 1920x1080 Photo size Video size MOV 1920X1080 Weight...
