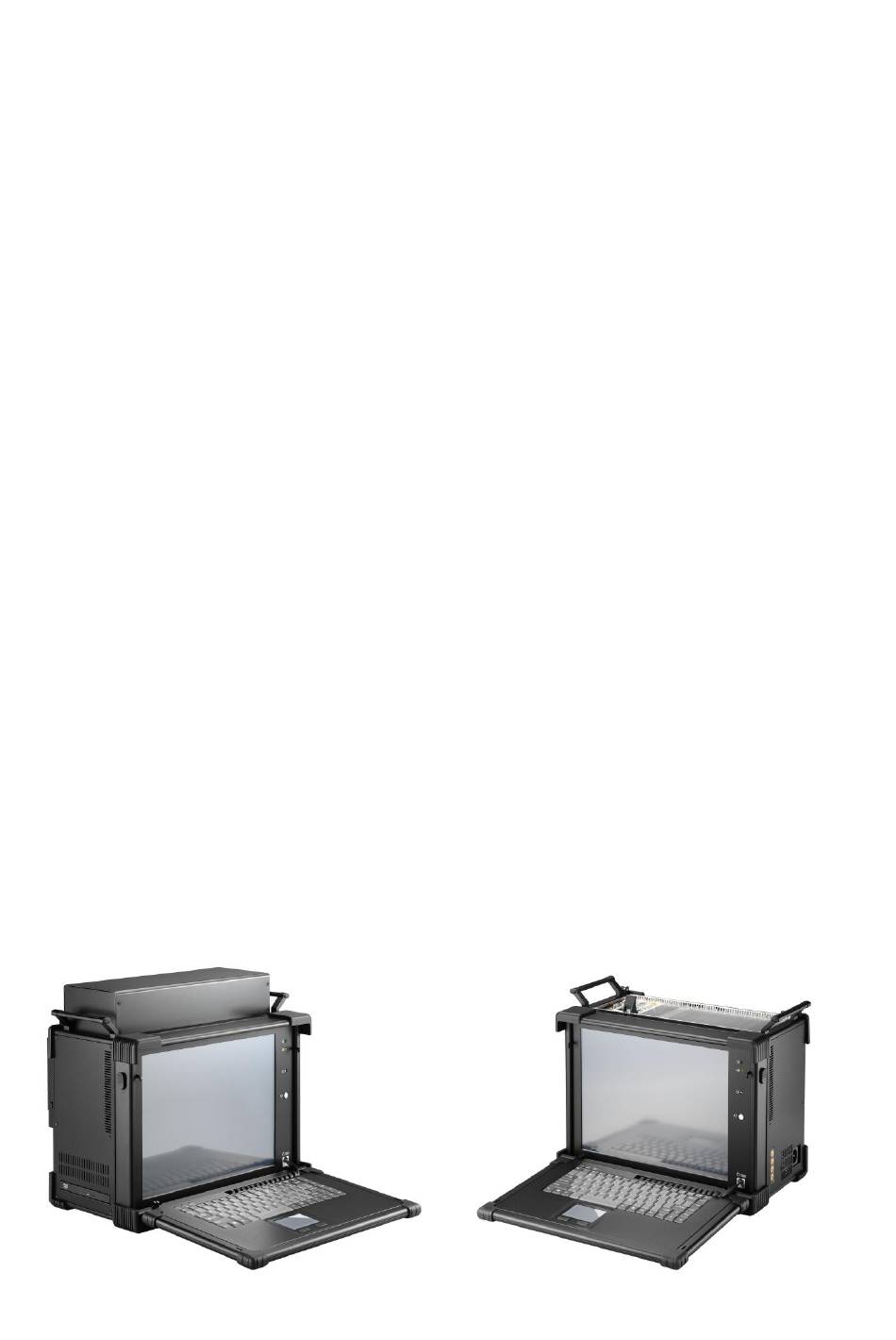

- Page 1 ARX 314 User Reference Manual...
-
Page 2: Specifications
Specifications Model No ARX314 Backplane 3U-size, 14-slot PXI backplane Compliant with PXI specification Rev2.0 (PICMG 2.8) Accepts both PXI and CompactPCI 6U module Accessible Slots 1 system slot & 13 Peripheral slots Display 15", 1024x 768 TFT LCD Monitor with touch screen KB/MS Integrated keyboard and touchpad, RJ-45 connector Operating Life of Keys: 8 million cycles... - Page 3 Standard Accessory Kits ARX 314 Model Accessory Kit SKD ARX314 Portable Computer Chassis ARX314 Carrying Case with wheels User’s Manual Power Cord VGA to VGA cable (180mm) DVI-D to DVI-D cable (180mm) USB to USB cable (180mm) Anti-Static Bag Carrying Case with Wheels...
- Page 4 1.0 Introduction Version: 2013.08 ARX 314 features: ● Designed for portable instrument applications ● Accepts both 3U PXI and CompactPCI Modules ● 3U, 14-slot Portable Instrument ● Built-in 15” LCD display with touch screen, 1024x 768, 16.2M, 250 nits brightness ●...
- Page 5 2.0 Getting Started 2.0 Operation 1. Releasing Keyboard from main unit by pushing up the 2 taps located on both side of the chassis to release the locking mechanism, and then pull out the keyboard. Lift up Press to release Lift up 2.
- Page 6 4. You can flip the 2 feet located underneath the chassis outward to help create an angle for the chassis for viewing comfort. 2 feet 5. Access the available 1 system slot for PXI/ CompactPCI controller and 13 peripheral slots on the top side of the chassis.
- Page 7 7. Connect the ARX314 USB connector to CPU controller USB port Connect the ARX314 VGA or DVI-D connector to controller VGA or DVI-D port DVI-D to DVI-D cable 8. Connect the power cable into the power supply unit Insert Power Cord ７...
- Page 8 9. Press the power switch located on the front panel of the chassis to power up the unit. There have indicator LED lights for Power and LCD OSD in the right side Power LED light Press Once to Power On LCD OSD 10.
-
Page 9: Troubleshooting
3.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARX. 3. Are all the items seated properly? 4.
