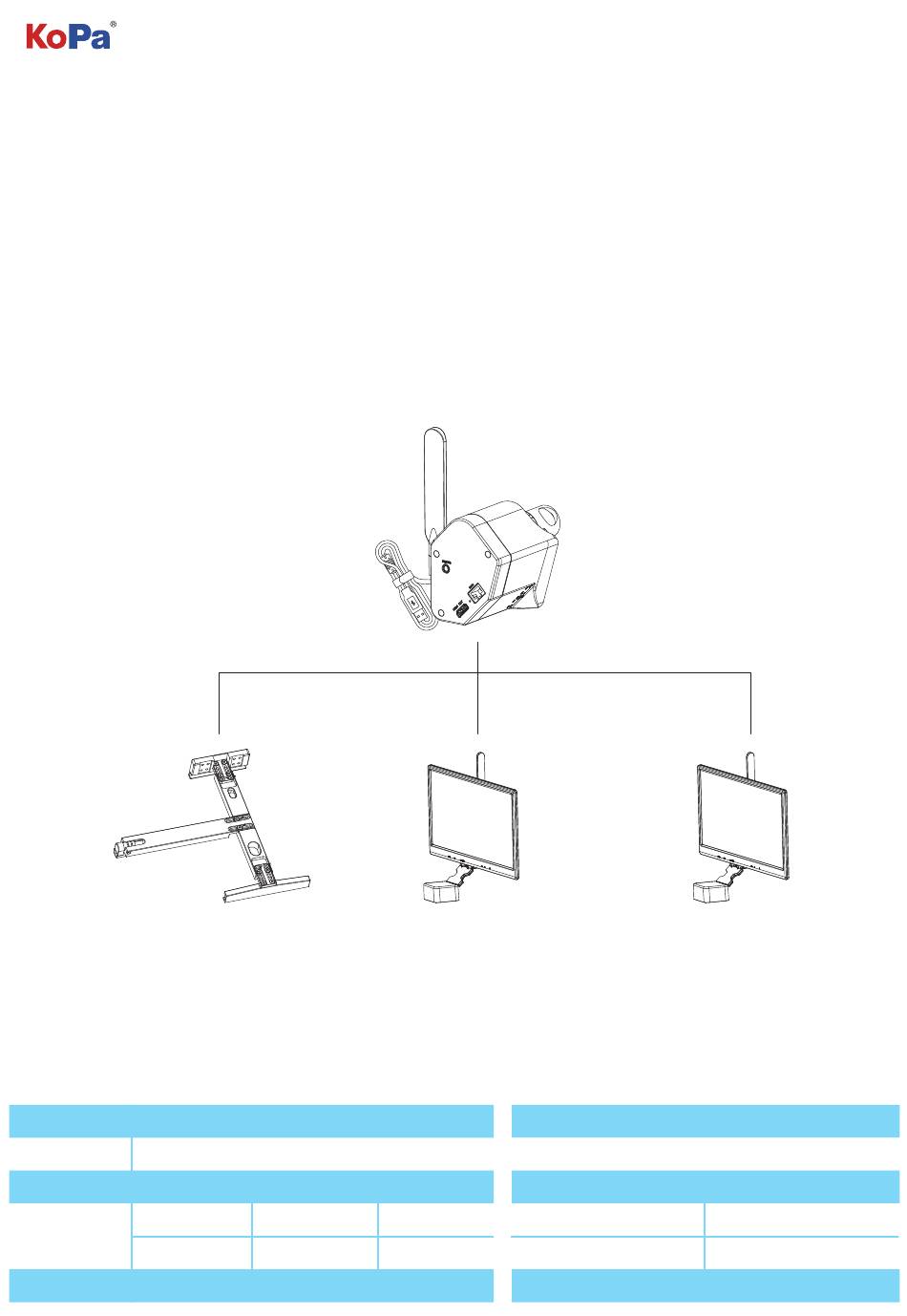

- Page 1 KS101800-Ver1.0 Ts� Imaging Solution User Manual Option A Option B Option C Nikon(Ts2) Applicable brand Nikon(Ts2) Model DF12 DF20 Category Option A Option B Option C Option A Option C Accessory code BY071800 BY070600 BY063700 BY071800 BY063700 Physical resolution 12.0MP...
-
Page 2: Table Of Contents
......................- 2-3 - Chapter 3 Hardware introduction ....................- 4 - Chapter 4 Installation methods ......................- 5 - 4.1 Camera install to Nikon Ts2 inverted trinocular microscope ..........- 5-7 - 4.2 Remove camera from microscope ..................- 7 - 4.3 Par-focal ..........................- 7 - Chapter 5 Connection Methods .....................- 8 -... -
Page 3: Chapter 1 Notes And Safety Requirements
Registered trademark and copyright information: this product is copyrighted by GUANGZHOU OSTEC ELECTRONIC TECH- (12) NOLOGY CO.,LTD.Without written authorization of the company, any organization or individual shall not copy, print or translate any part of this article into another language. Ts2 Imaging Solution User Manual - 1 -... -
Page 4: Chapter 2 Package List
Product model: NA001 Software、Manual Download 软件、说明书下载 Windows download link: PC软件下载链接： https://ostec.com.cn/downloads/ Windows Download PC软件下载 For 5.0/8.0MP For 12.0MP KoPa WiFi Lab For Android/iOS Download 软件说明书下载 Software Manual Download KoPa WiFi Lab 安卓/iOS 软件下载 Ts2 Imaging Solution User Manual - 2 -... - Page 5 7.Bracket with USB hub for tablet (optional 8.15.6"gamut display (optional) accessories to use with Android tablets) 9.15.6" gamut display customized 10.0.43X optical interface (50:50 RK3399 Android OS (optional) splitting prism design, optional) 11.1X optical interface (optional) Ts2 Imaging Solution User Manual - 3 -...
-
Page 6: Chapter 3 Hardware Introduction
WiFi: the wireless devices connect to the camera WiFi to image acquisition. turn to WiFi, the indicator light is blue. ACT indicator ⑧ turn to other gears, the indicator light does not light up. Ts2 Imaging Solution User Manual - 4 -... -
Page 7: Chapter 4 Installation Methods
Chapter 4 Installation Methods �.� Camera install to Nikon Ts� inverted trinocular microscope (1) Remove the microscope Ts2 baffle, as shown in Figure 1: 1) Use a 2.5mm Allen key to unscrew the screws on the microscope baffle; 2) Take out the baffle of the microscope. - Page 8 3) Fix the 0.43X optical interface on the microscope with a 2.5mm Allen key and manufacturer's special supply screws, the position and direction are shown in Figure 11; 4) Screw in a third-party standard C-mount camera. Figure 10 Figure 11 Ts2 Imaging Solution User Manual - 6 -...
-
Page 9: Remove Camera From Microscope
(2) Adjust the easy focus hole in clockwise or counterclockwise direction with the Allen key until the image from software is clear to achieve par-focal; (3) Once par-focal under 10X objective is completed, the other objectives are basically free of adjustment and achieve par-focal as well. Ts2 Imaging Solution User Manual - 7 -... -
Page 10: Chapter 5 Connection Methods
(2) Toggle switch to USB gear; (3) Install and run KoPa Capture Pro software. Windows PC software KoPa Capture Pro download link: https://cn.ostec.com.cn/downloads/; Please refer to the "KoPa Capture Pro Software User Manual" for details. Ts2 Imaging Solution User Manual - 8 -... -
Page 11: Hdmi Connection (Only For 12.0Mp Camera )
(2) Download and install the APP: 1) Official website link: https://cn.ostec.com.cn/downloads/; 2) Choose KoPa WiFi Lab for Android or KoPa WiFi Lab for iOS to download and install according to your phone and tablet system; 3) You can search and download KoPa WiFi Lab from Google Play app store;... -
Page 12: Local Area Network Connection
Search for the camera's WiFi SSID: WiFi5Camera_xxxxxx in the WLAN of cell phones or tablets; default connection password: 12345678. Run the App KoPa WiFi Lab, enter the App KoPa WiFi Lab navigation interface, and click the button to connect to the microscope screen manually. - Page 13 (1) Connect the cell phones or tablets that supports 5G WiFi IEEE802.11ac protocol to the same local area network as the camera. (2) Install and run the App KoPa WiFi Lab on the cell phones or tablets, enter the navigation interface and click the "...
-
Page 14: Accessory)
(1) It is suitable for applications such as pathology seminars, demonstration teaching, and video sharing on the large display screens in research institutes. (2) It supports the whole series of KoPa smart display camera, smart camera and WiFi cameras, and the factory has built-in high performance APP--KoPa WiFi Lab，which automatically connects with camera when it is turned on. - Page 15 (2) The network cable is plugged into the video set-top box's wired network interface to give the video set-top box Internet access. (3) USB interface connects mouse and keyboard to facilitate the operation of the APP (KoPa WiFi Lab) on the oversized display.
-
Page 16: Chapter 7 Troubleshooting And Frequently Asked Questions
(2) Ensure the KoPa WiFi Lab software on your mobile device can scan the QR code on the camera body and connect to the camera's WiFi, if the software prompts "WiFi cannot be connected", you need to allow the KoPa WiFi Lab software to modify the system settings in your phone's settings. -
Page 17: Chapter 8 Disclaimer
7) Before opening the socket power supply, please be sure to turn off the load power switch of the product equipment. 8) The company reserves the rights to improve product, upgrade technology and change parameters without prior notice. GUANGZHOU OSTEC ELECTRONIC TECHNOLOGY CO.,LTD. http://www.ostec.com.cn Ts2 Imaging Solution User Manual - 15 -...
