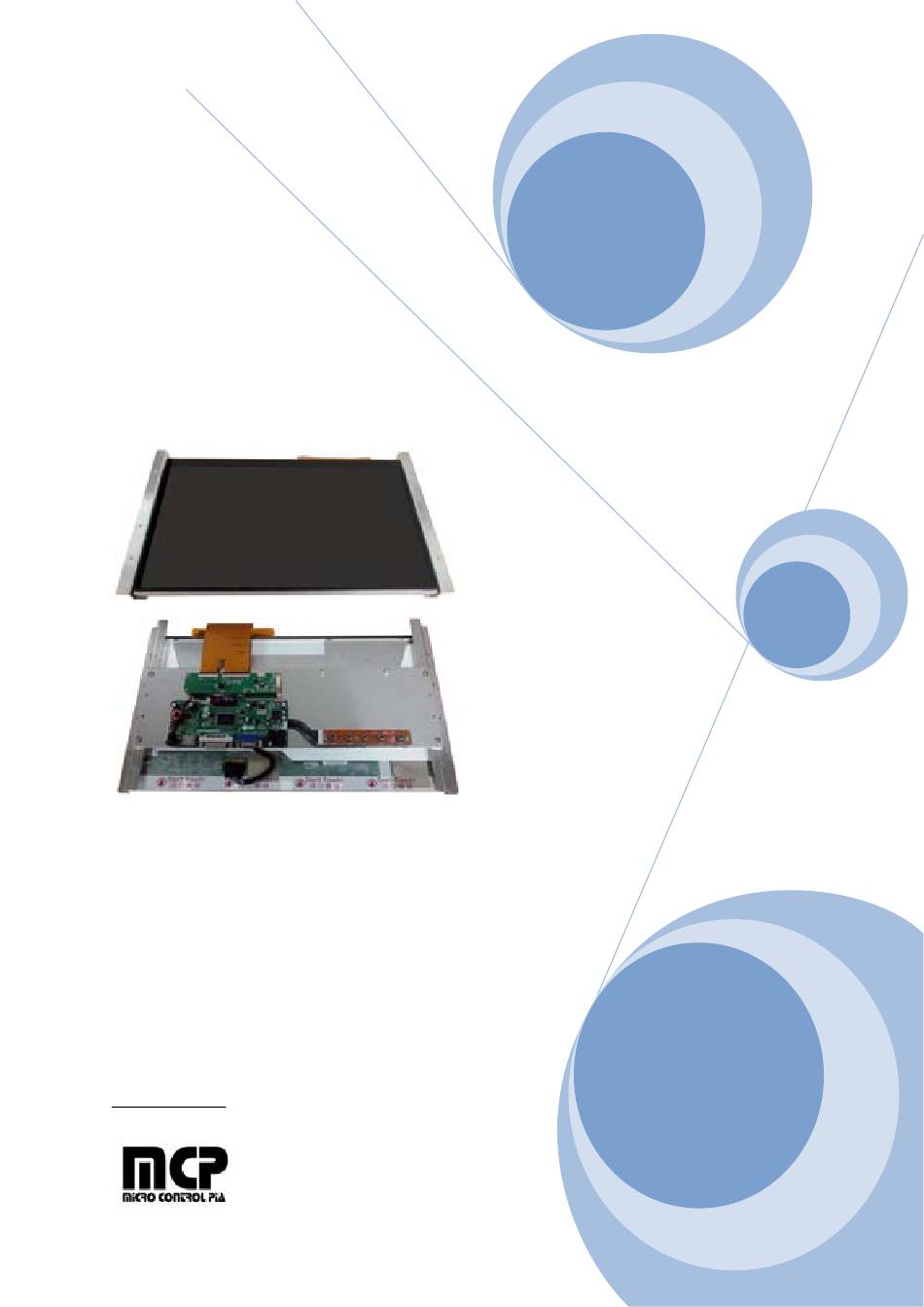

User Manual
Open Frame Touch Monitor
15.6 inch Full HD(1920x1080)
Capacitive Touch Screen
Model : XLT-1560-OpenFrame-AU1
Preliminary
Version JAN 2014
A-909, Woolim Lion's Valley, 371-28, Gasandong, Geumchoen-Gu
SEOUL, South KOREA 153-803
Tel : +82 -2-839-0182~3
Fax: +82 -2-839-0184
sales@mcpia.com , www.mcpia.com
Advertisement
Table of Contents
Summary of Contents for MCP XLT-1560-OpenFrame-AU1
- Page 1 User Manual Open Frame Touch Monitor 15.6 inch Full HD(1920x1080) Capacitive Touch Screen Model : XLT-1560-OpenFrame-AU1 Preliminary Version JAN 2014 A-909, Woolim Lion’s Valley, 371-28, Gasandong, Geumchoen-Gu SEOUL, South KOREA 153-803 Tel : +82 -2-839-0182~3 Fax: +82 -2-839-0184 sales@mcpia.com , www.mcpia.com...
- Page 2 ■ To clean the touch screen, use window or glass cleaner. Put the cleaner on the rag and wipe the touch screen. Technical Support and Assistance Visit the MCP website at http://www.mcpia.com where you can find the latest information about the product. Document Feedback To assist us in making improvements to this manual, we would welcome comments and constructive criticism.
- Page 3 Introduction The 15.6" XLT Open Frame monitor is a large format display integrated with projected capacitive touch. With ten touch points, interacting with the screen has never been easier. The monitor is Windows 7/8 or Android OS ready. Specifications - Touch Screen - Item Spec Touch Screen Size...
- Page 4 - System - Item Spec Display Controller Rear mounted Video Inputs VGA, DVI, HDMI Audio Input PC AUDIO IN Audio Output Ear-Phone Jack / Speaker connector Control Button Rear mounted OSD Key Function POWER,MENU,UP,DOWN,ENTER OSD Language 8 Languages Power supply DC 12V Weight 1.2kg...
- Page 5 Product Overview Front View Back View User Manual Page 5...
- Page 6 Display Controller Description Label Description DC power Input HDMI Input DVI Input VGA Input Audio Input Headphone Jack Speaker connector , 2×1W(8Ω) Touch Controller Description Label Description Touch Screen FPC Connector 40pin Touch Screen FPC Connector 60pin USB Interface Connector User Manual Page 6...
-
Page 7: Packing List
Packing List Your monitor ships with the components shown below. 15.6” Open Frame Touch Monitor 1 x USB Cable(for touch) 1.5 meter 1 x DC12V/3.33A Power Adapter 1 x Power Cord (Type of power cord included will depend on the where the LCD monitor is to be shipped) Note : Not included video cables(HDMI , DVI, VGA) User Manual... - Page 8 Rear Mounting Solution Rear mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly. Mounting solution can also guide you to fine the product that really fit your needs.
- Page 9 Installation Step & Application This monitor can be mounted to the wall with 8 screws and two pairs of brackets. Mounting method that mounts products from the rear and secured by bracket on left and right sides. They are widely used when there is a safety consideration, for example, ATMs.
-
Page 10: Front View
Recommended Customer Panel Cut-Out - FRONT VIEW - User Manual Page 10... -
Page 11: Connecting The Display
Connecting the Display To setup this display, please refer to the following figure and procedures. 1. Be sure all equipment is turned off. 2. Connect either VGA, DVI or HDMI Video Source from the monitor to the computer. 3. Connect the computer to the monitor with USB(for Touch) cable. 4. -
Page 12: User Control
Note : To ensure the LCD display works well with your computer, please configure the display mode of your graphics card to make it less than or equal 1920 x 1080 resolution and make sure the timing of the display mode is compatible with the LCD display. Attach power and video cables as needed and insure cables are not pinched or pulled tight by other devices mounted above or below the display. -
Page 13: Picture Control
To Display and Select the OSD Functions: 1. Press the Menu key to activate the OSD menu. 2. Use or to move through the menu. Press the Select key, the parameter will be highlighted when selected. 3. To quit the OSD screen at any time during the operation, press the Menu key. If no keys are pressed for a short time period, the OSD automatically disappears. -
Page 14: Touch Screen Driver
Touch Screen Driver Windows7,8 USB Compatibility MCP multi-touch technology works seamlessly with the Windows7,8 operating system. The Multi-Touch supports USB HID for direct communication. The Multi-Touch leverages all the multi-touch functionality that is native to Windows7,8. Plug the display in to a system running Windows7,8 and you’ll quickly enter the world of true multi-touch... -
Page 15: Troubleshooting
Troubleshooting • The monitor does not respond after you turn on the system. Make sure that the monitor is turned on. Turn off the power and check the monitor’s power cord, AC adapter, and signal cable for proper connection. • Appear the “No Input the Signal”... -
Page 16: Recommended Use
Recommended use • Setting the Maximum Resolution Set the timing mode on your computer. Recommended resolution and refresh rate is 1920 x 1080 @ 60Hz. If you do not see 1920 x 1080 as an option, you may need to update your graphics driver.
