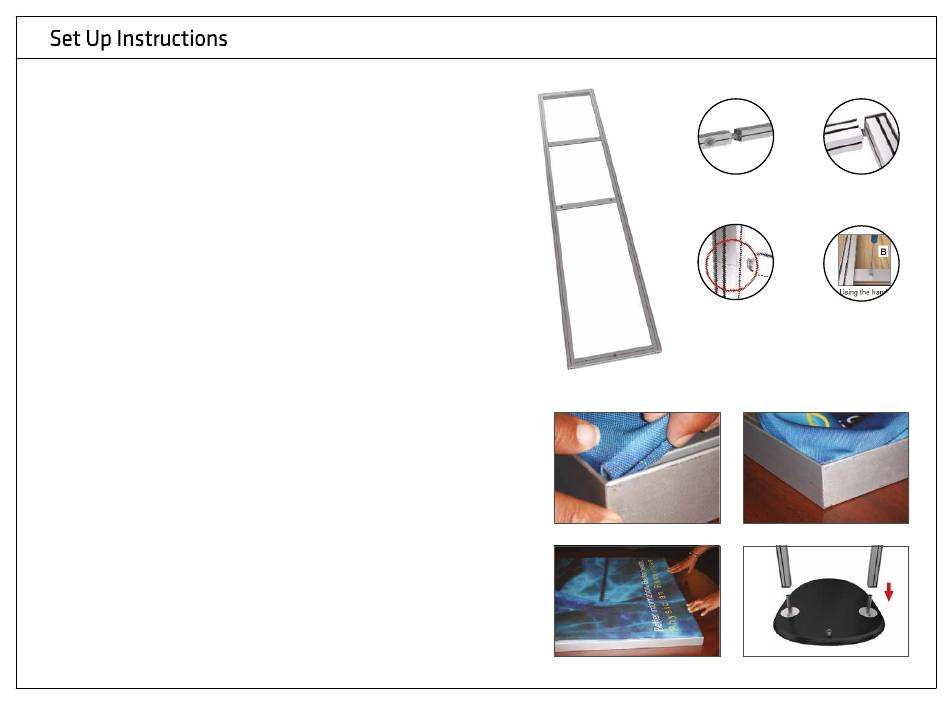

Discount Displays STDRD-MONITOR STAND Setup Instructions

FRAME

Step 1: Assemble 3-part Vertical Supports (A) with plastic grommets facing out.

Step 2: Using the Hand Tool (B), attach the top and bottom Horizontal Supports

clockwise.

NOTE: Make sure the thin groove is along the outer edge of each piece so the

groove is continuous around the frame.

Step 3: Using the Hand Tool (B), attach the Cross Supports (D) in the same man-

ner at the 2 joints in the Vertical Supports (A).

NOTE: The 3rd Cross Support (D) is included for added support or for use as a

spare replacement piece.

Step 1: Make sure the frame is laying flat on the floor and the star-holed screws

are facing down.

Step 2: Start with each corner and attach Fabric (F) by rolling fabric in and push-

ing the rubber beading into the thin groove along the edge of the frame with your

thumb.

Step 3: After the corners are secured, continue pushing the rubber beading into

the groove along the sides, top and bottom of the frame.

NOTE: The corners of the stitching should be at the corners of the frame. Over

stretching the fabric will result in uneven bunching of the fabric. Pull the

fabric just tight enough to lay flat.

Step 4: insert assembled frame and graphic (with the print facing torwards the

long side of the base) onto the posts of base.

STDRD-MONITOR STAND

ASSEMBLE

(A) vertical supports

(D/A) middle supports

CONNECT

corners together (A/C)

INSERT

LOCK

(B) with hand tool
