Summary of Contents for BionX Spirit

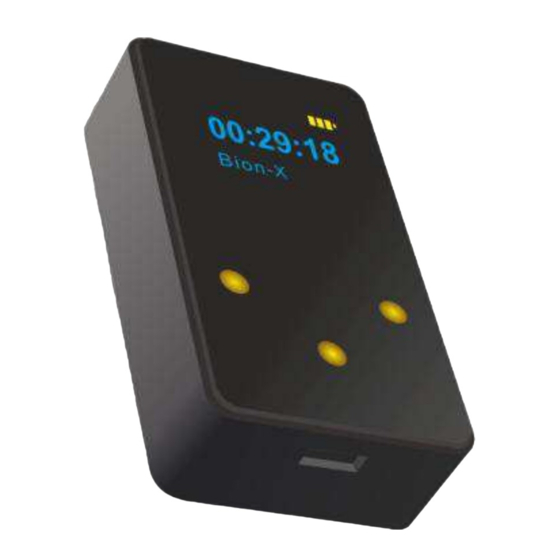

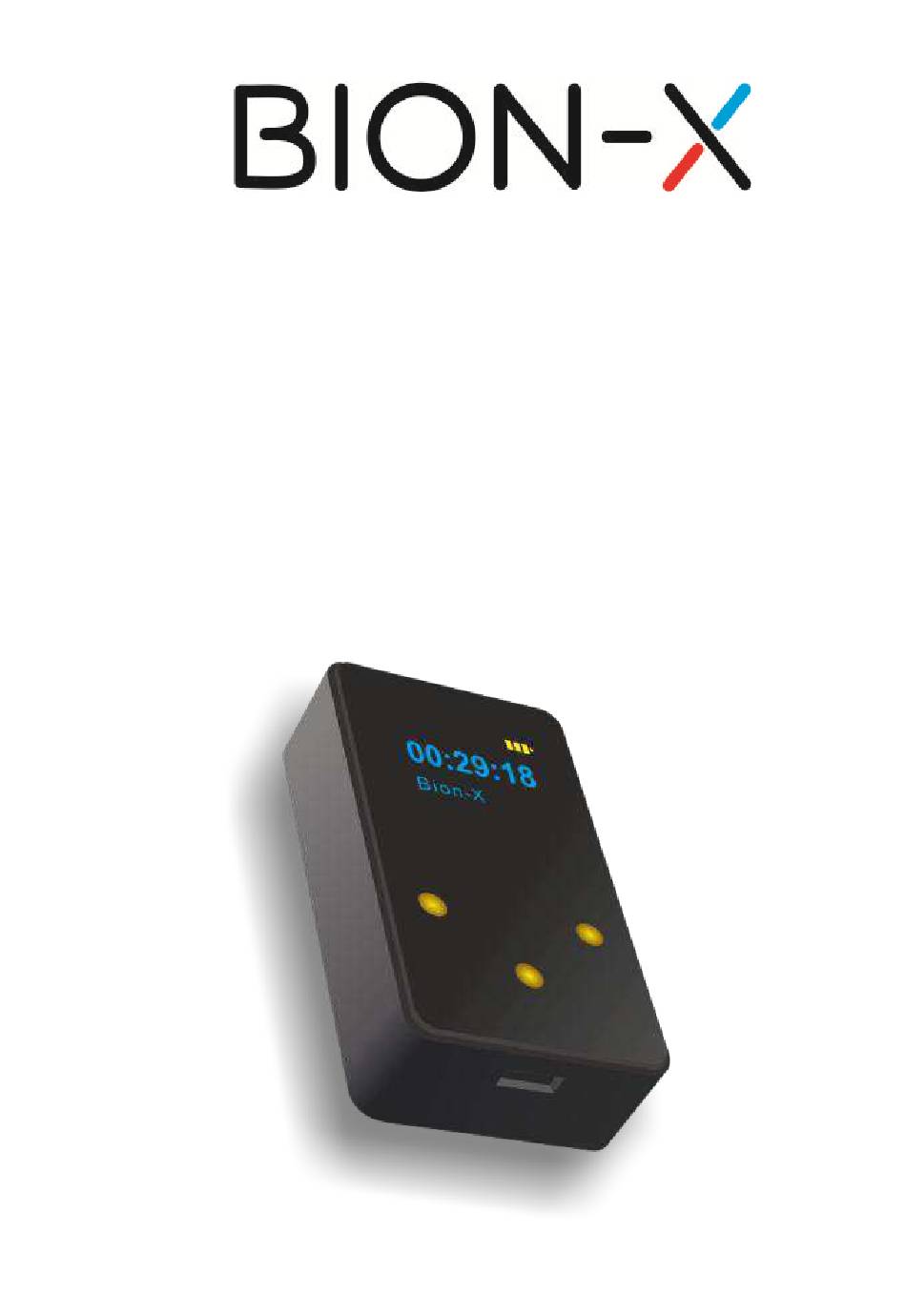

- Page 1 BionX Trading Ltd. Device for generating modulated electromagnetic signals Bion-X «Spirit» USER’S GUIDE...
- Page 2 Nature and to which we are always exposed in a positive way, strengthening and synchronizing body functions and systems. Bion-X «Spirit» is safe to use. Radiation from the device is natural for biological systems. Description of the Device...
- Page 3 BIOLOGICAL FEEDBACK (BFB). User interaction with the device using biofeedback can be carried out in two ways. In the first method, the user's own voice is used as a measured physiological parameter (2nd mode: "Audio F.B."), and in the second method, the electromagnetic field emitted by the device re-reflected from the body (3rd mode: "EMF F.B.").
- Page 4 Preparation for use Figure 1. Front panel of the device. 1-Operating mode indicator 2- Charge indicator...
- Page 5 Figure 2. Back panel of the device. Check the operation of the device by turning on the power. To do this, press and hold the on / off button (Fig. 1) for more than 2 seconds. In this case, the main menu of the device will be displayed on the display (Fig.
- Page 6 Figure 3. Section "List of programs". Section "List of programs". The device contains 15 programs. After selecting the "List of programs" section, you can view the list of programs using the buttons (Fig.5). Figure 4. Icon for returning to the previous menu item. The program names will scroll in a circle (Fig.
- Page 7 Figure 5. Displaying the list of programs. Under the name of each program, its duration is indicated in the format hours:minutes:seconds To start the therapy process after selecting required complex press Figure 6. Program execution. During the execution of the correction program (Fig. 6), the display shows the name of the program with a countdown of the remaining time.
- Page 8 the keypad for 20 seconds. To stop a program and return to the program selection menu, use After the completion of the complex, the device will emit a sound signal and the operating mode indicator will stop flashing (Fig. 4). If no action is taken at the end of the program, the appliance will switch off automatically after one minute.
- Page 9 can be positioned as in the figure below. It is necessary to take care that there are no other persons or animals in the room, as well as any moving or rotating mechanisms (fan, air conditioner, computer, curtains with an open window). Do not use the device in this mode if fluorescent lamps are used as artificial lighting in the room.
- Page 10 «Audio Feedback» section Select the line "Audio F.B" in the main menu of the device and press Figure 8. «Audio Feedback» Mode In this mode, the parameters of the emitted signal of the device are modulated by the user's voice, which provides Biofeedback (BFB). Hold the device in open palms with the front panel towards you.
- Page 11 Or you can place the device on a hard surface in front of you with open palms behind the device. Next, you need to pronounce sounds or affirmations according to the methodological recommendations. The display will show the operating time of the device and an oscillogram of sounds.
- Page 12 Section "PC Connections" For some service functions, the device provides a data exchange mode with personal computer. Select the line "PC Connect" in the main menu of the device. Figure 10. "Communication with PC" mode Connect the device to the PC using the supplied USB cable and press Figure 11.
- Page 13 Charging the device. The icon in the upper right corner of the display shows the battery level. If the battery voltage drops below the minimum allowable value, then the icon is displayed BLANK. In this case, in order to avoid turning off the device until the end of the therapy process, it is necessary to charge the battery.
- Page 14 Certificate of acceptance The Bion-X "Spirit" device is manufactured and accepted in compliance with mandatory requirements state standards, current documentation and recognized as fit for use. Technical control mark...
