Summary of Contents for Atlantic Ultraviolet AeroLogic AERO-8
- Page 1 375 Marcus Boulevard Hauppauge, NY 11788 • • 631.273.0500 Fax: 631.273.0771 • e-mail: info@ultraviolet.com Extensive Product Information Available at: ultraviolet.com Document No. 98-1389B1 • February 2011 • ©2009-2011 Atlantic Ultraviolet Corporation ®...
-
Page 2: Table Of Contents
The information and recommendations contained in this publication are based upon data collected by the Atlantic Ultraviolet Corporation® and are believed to be correct. However, no guarantee or warranty of any kind, expressed or implied, is made with respect to the information contained herein. -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. This is the safety alert symbol. -
Page 4: Product Application

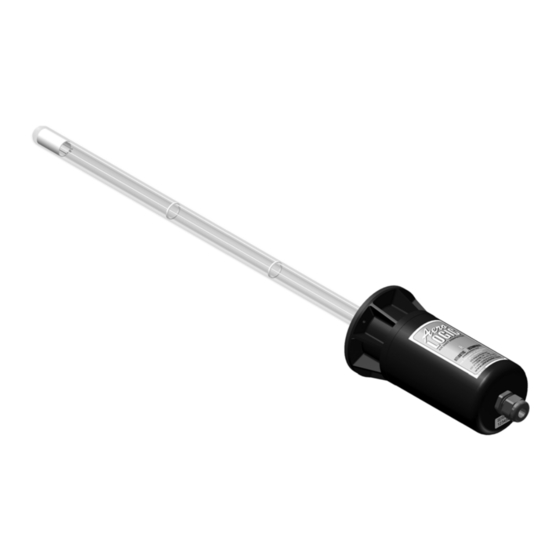

PRODUCT APPLICATION ONSTRUCTION ® The AeroLogic Air Duct Disinfection Unit consists of: • Quartz sleeve to protect and insulate the germicidal ultraviolet lamp. The quartz sleeve protects the ultraviolet lamp from deposits of dirt and/or dust while insulating it from low air temperatures and the cooling affects of high air velocities in the air duct. -
Page 5: Unpacking
Air Duct Disinfection Unit from its shipping carton. • Atlantic Ultraviolet Corporation takes all possible precautions when packaging this unit to prevent damage. Carefully inspect the unit, power cord and plug for damage, report all damage immediately. Do not assemble or operate if there is any damage, visible or suspected. -
Page 6: Installation
INSTALLATION LACEMENT Proper unit placement is essential. To ensure safe and effective operation, the location should: • Have enough duct width to mount unit with lamp perpendicular to airflow, with the longest duct length for increased exposure time. • Be on the supply air plenum, LOCATION A (preferred), or on the return air plenum, LOCATION B (alternate). See Figure 1- Unit Replacement. -
Page 7: Dimensional Data
IMENSIONAL Figure 2 - Dimensional Data AERO... -
Page 8: Sight Glass
IMENSIONAL IGHT LASS Figure 3 - Sight Glass Dimensional Data & I IGHT LASS OCATION NSTALLATION ® The AeroLogic Air Duct Disinfection Unit comes standard with a 1-inch Sight Glass Assembly, which is installed separately. The ultraviolet blocking, sight glass allows for visual inspection of the lamps, without the need to remove the unit from the duct. - Page 9 MOUNTING TEMPLATES Figure 5 - AERO Mounting Template - Full Scale Figure 6 - Sight Glass Mounting Template - Full Scale...
- Page 10 (This page is intentionally blank)
-
Page 11: Unit , Lamp And Quartz Sleeve Installation , Replacement O R Cleaning
AMP AND UARTZ LEEVE NSTALLATION REPLACEMENT LEANING WARNING: Always disconnect power to the unit before performing any service or maintenance. CAUTION: Ultraviolet lamp and quartz sleeve are easily damaged and may cause injury if broken. Exercise care when handling. 1. Disconnect power to the HVAC system. 2. -
Page 12: Precautions
RECAUTIONS ® • The AeroLogic must be disconnected from power whenever anyone works on the HVAC system. Anyone who works in and around the system should be briefed on the precautions to be observed. • The HVAC system should be re-inspected for any ultraviolet light leakage whenever any maintenance or modifications are performed. -
Page 13: Troubleshooting
TROUBLESHOOTING WARNING: Always disconnect power to the unit before performing any service or maintenance. Use personal protection equipment, such as gloves; long sleeves with no gaps between cuffs ® and gloves, and ultraviolet resistant face shield, if troubleshooting AeroLogic • IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel. -
Page 14: Replacement Parts
REPLACEMENT PARTS Figure 7 - Exploded View... - Page 15 REPLACEMENT PARTS Table 3 - Replacement Parts ITEM NO. DESCRIPTION PART NO. Gasket - Mounting Hub 40-6018A Mounting Hub: 40-6005A Screw: 8-18x3/4" Pan Head 50-0400 ® Nut: AeroLogic Mini 40-6002A2 ® Teflon Washer 00-0229A O-Ring 00-0116 ® Base: AeroLogic Mini 40-6001A2 O-Ring 00-2233...
-
Page 16: User Assistance
If you prefer to register over the telephone please call 631-273-0500. Atlantic Ultraviolet Corporation takes considerable care when packaging equipment to prevent damage. Carefully inspect and report all damage. Do not install damaged equipment. Follow all instructions in this manual and on any labels or tags.
