ASSEMBLY INSTRUCTIONS
ITEM CODE : IN711

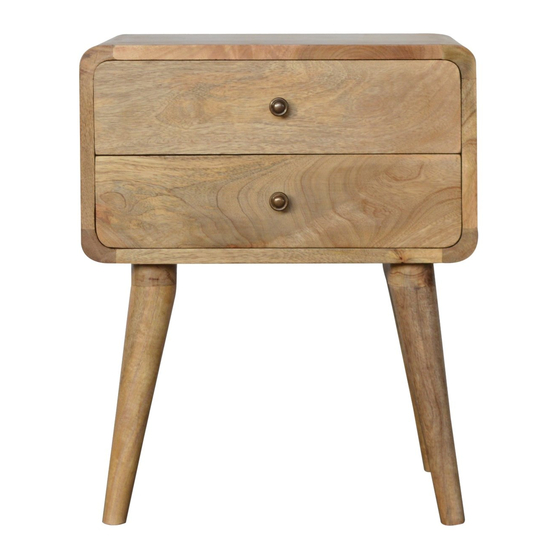

ITEM DESCRIPTION: 2 DRAWER BEDSIDE
4
Reverse the bedside
straight. Now your
bedside is ready
for use
1
Reverse the bedside & place
the leg as shown & align the
leg to match the apron.
Insert the Bolt to fix
the leg with the Bedside
top and tighten the nut
with the washer as
shown in fig1
3
Fix the other leg
in the similar way
Fig. 1
Allen key
Screw 2
Screw 1
Washer 2
Washer 1
2
