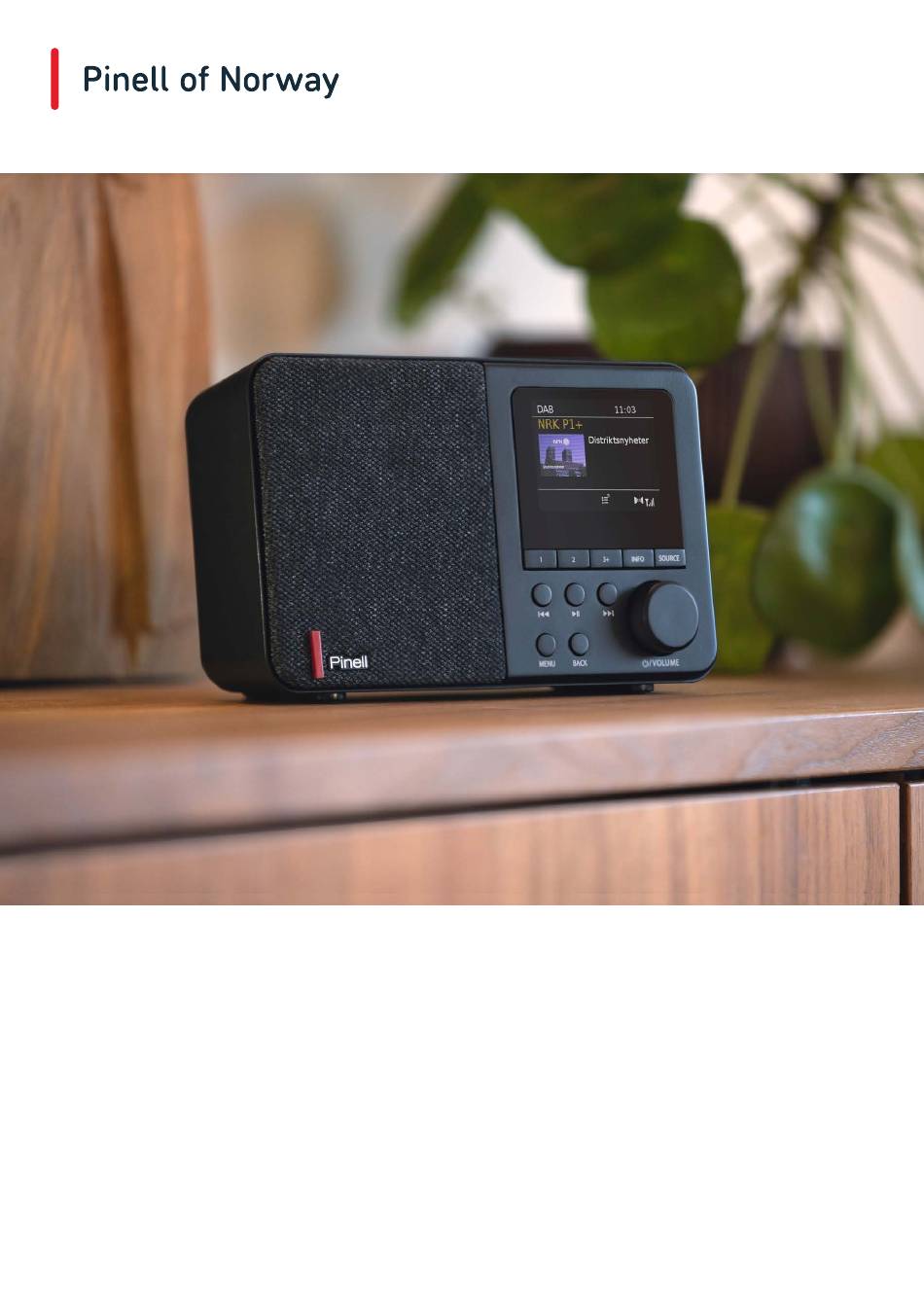

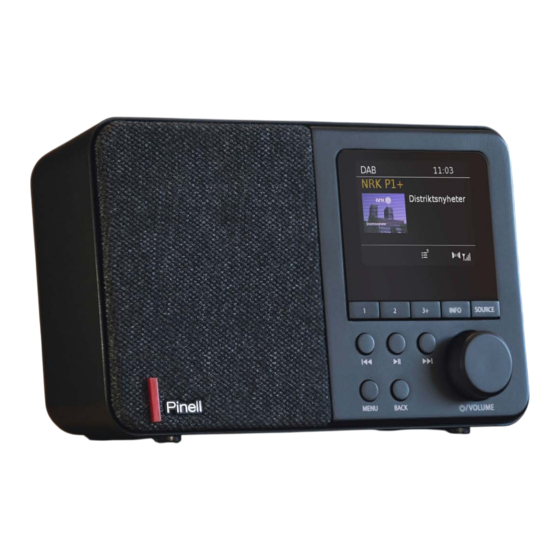

- Page 1 User Manual SUPERSOUND 001 DAB/DAB+ / FM / Bluetooth...
-
Page 2: Safety Instructions
Safety instructions Please store this instruction manual for future reference. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. -
Page 3: Table Of Contents
Table of Contents Safety instructions .......................... 2 Table of Contents ..........................3 Features ..........................4 Carton contents ........................4 Controls, connectors and display ....................5 Main controls .......................... 5 Connectors ..........................6 Getting started ..........................7 Preset stations ........................7 Recall stations ........................ -
Page 4: Features
Bluetooth - streaming music and control from Smart device Carton contents Carefully remove your radio from the packaging. You can keep the packaging for later use: • 1x Pinell Supersound 001 unit • 1x DC5V USB charging cable and power adapter • Quick start guide... -
Page 5: Controls, Connectors And Display
Controls, connectors and display Main controls PRESET - Long press button 1, 2 or 3+ to preset and save your favorite stations. You can save up to 20 DAB presets and 20 FM presets. INFO - View more information about the station playing. Press again to cycle through further information. -
Page 6: Connectors
Connectors 10 Battery compartment 11 Headphones out 12 USB power in (5V) -
Page 7: Getting Started
Getting started Supersound 001 is easy to use. To play DAB or FM radio, all you need is a power source (batteries or USB power). Quick setup Fully extend the Telescopic antenna to ensure good reception in both DAB and FM Radio modes. -
Page 8: Dab Radio Mode
DAB radio mode DAB radio mode receives DAB/DAB+ digital radio and displays information about the station, stream and track playing. The menu options are: Station List, Full Scan, Manual Tune, Prune Invalid, DRC, System Settings. Selecting stations To listen to or change a station, press 9 or : > VOLUME to select. Once selected, the station plays and the screen shows information about the station. -
Page 9: Fm Radio Mode
Selecting stations To find a station, press and hold 9 or :. The frequency display starts to run as Supersound 001 scans the FM band. Scan Setting This enables you set FM scans to stop at stations with strong signal or stop at any available station. -
Page 10: Bluetooth Mode
1. Press SOURCE repeatedly until the display shows Bluetooth. 2. Turn on the Bluetooth on your enabled device. 3. Select Bluetooth device name “PINELL 001” when it appears on your device’s screen to initiate searching. 4. You can start to play your music files wirelessly. Adjust the volume level on your device. -
Page 11: System
System The System menu options are: Sleep, Alarm, Equaliser, Time/Date, Backlight, Language, Factory Reset, Software Update (not in use), Software Version. Sleep When listening to the radio you can set a period of time before the radio enters “standby” mode. Note: the radio must be active and not in “standby”... -
Page 12: Time/Date
Time/Date If there is any DAB+ radio signal, the machine will automatically update the time. MENU > : > System Settings > : > Time/Date > VOLUME to confirm. • Set Time/Date: set hour / minute / day / month / year > saved •... -
Page 13: Technical Specifications
RoHS directives. The declaration of conformity can be found here: www.pinell.com/certificates * Information in this manual is subject to change without notice. Pinell is a label of TT Micro AS (www.ttmicro.no) Olav Helsets vei 5, 0694 Oslo, Norway (Email: Support@pinell.no)
