Summary of Contents for Palax Lifter

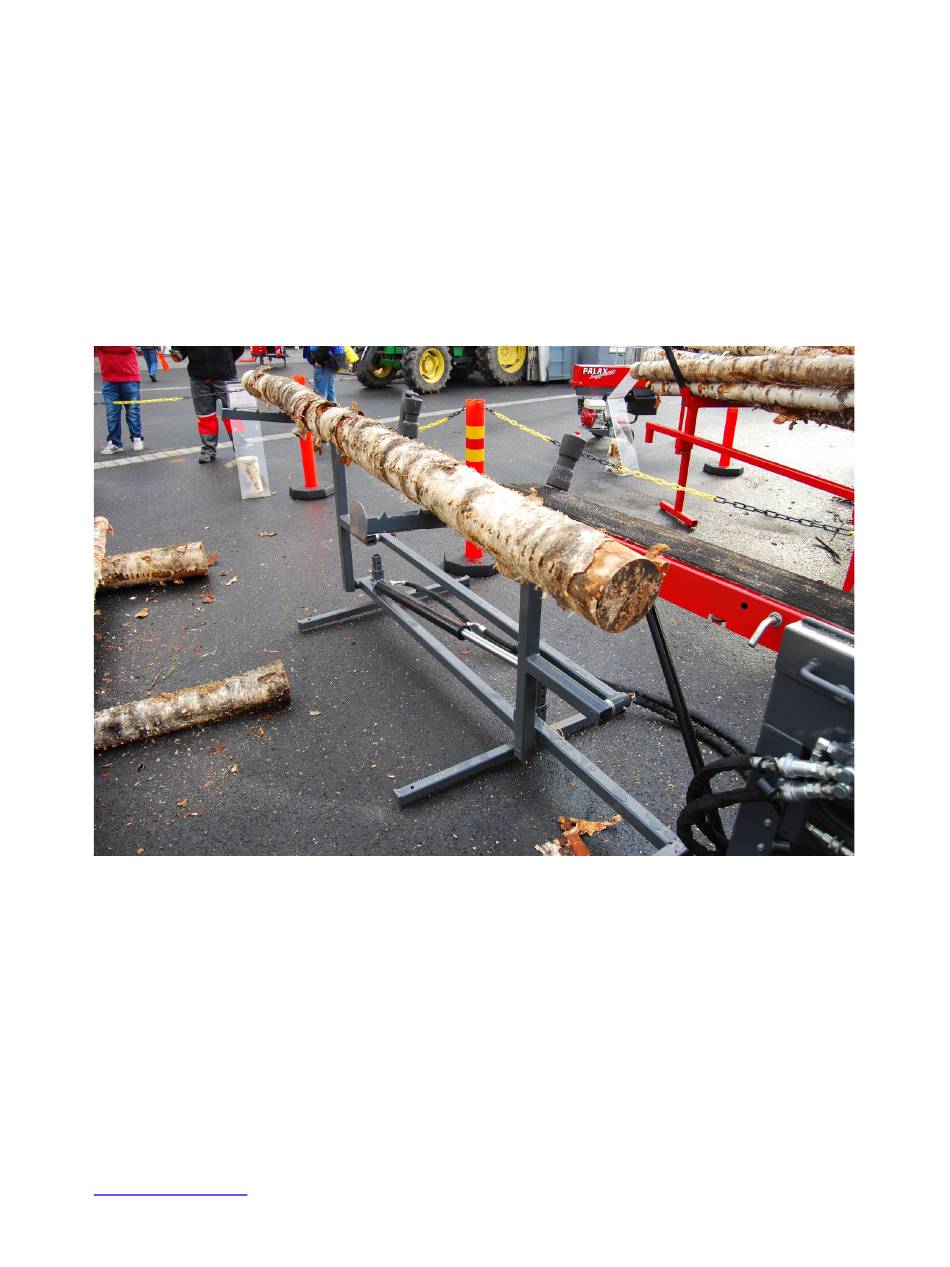

- Page 1 Instruction and Spare Parts Manual Palax Lifter Hydraulic log lifter Instructions must always be consulted before using the device PALAX Lahdentie 9 FI-61400 Ylistaro, FINLAND Tel. +358 6 4745100 Fax. +358 6 4740790 www.palax.fi Translation...
- Page 2 Translation...
-
Page 3: Table Of Contents
Installing the hydraulics .................... 10 5.1.1 Palax KS 35 and Power 70................ 10 5.1.2 Palax Power 90 ..................10 Operating and maintenance instructions for the lifter..........11 Turning the lifter into the transport position ............. 11 Spare parts ......................... 12 Translation... -
Page 4: Assembly Instructions
1 Assembly instructions Translation... - Page 5 Translation...
-
Page 6: General Safety Instructions
The device must not be used by children! The lifter may be used for lifting only one log at a time, and this log must be placed onto the lift booms in such a way that its butt end points towards the firewood processor. -
Page 7: Eu Declaration Of Conformity
+358 6 474 5100 Person in charge of the Technical Construction File: Timo Jussila, timo.jussila@tpsilva.fi Product: Hydraulic log lifter An accessory for the Palax KS35, Power 70 and Power 90 firewood processors. Powered by: Additional hydraulic circuit of the firewood processor Serial number of the machine: We hereby certify that this machine meets the requirements of Government Decree no. -
Page 8: Installing The Log Lifter
4 Installing the log lifter 4.1 Installing in an existing machine Drill the attachment holes in the machine in accordance with the dimensions presented in Figure 2. 4.1.1 Palax Power 70 S 4.1.2 Palax KS 35 4.1.3 Palax Power 90 Fig. -
Page 9: Installing The Fastening Iron
Replace the recently removed cover plate. 4.2.2 Palax Power 70 and Power 90 Remove the lower left front cover B (Fig. 3). Using nuts and bolts, attach the fastening iron to the holes next to the extension table leg. -
Page 10: Installing The Locking Iron In The Machine
4.3 Installing the locking iron in the machine 4.3.1 Palax KS 35 Install the locking iron inside the leg pipe, and tighten the nut and bolt through the hole in the left wall (Fig. 4) Fig. 4. Locking iron KS 35 4.3.2... -
Page 11: Installing The Valve
4.4 Installing the valve 4.4.1 Palax KS 35 Install the valve bed using the same bolts as the quick-connector bracket. (Fig. 7). Fig. 7. Valve bed of KS 35 4.4.2 Palax Power 70 Remove the cover plate C (Fig. 8). Using nuts and bolts, attach the valve bed by the holes in the end of the machine. -
Page 12: Installing The Hydraulics
B to the connector D of the valve. 3. Install the hoses from quick-connectors E and F to the cylinder of the lift, so that when the valve lever is raised the lifter will rise, and when the valve lever is lowered, the lifter will lower. -
Page 13: Operating And Maintenance Instructions For The Lifter
6 Operating and maintenance instructions for the lifter Fig. 11. Operating the lifter 1. Roll the log onto the lifter. Ensure that the lifter remains upright, and that it will not swing to the side while the log is being rolled 2. -
Page 14: Spare Parts
8 Spare parts FIN Ordering guide Look up the picture with the required part. Note the reference number for the part shown in the picture. Look up the ordering code referred to by the picture and the part number. When placing your order, always mention: ordering code, denomination of the item, serial number and year of manufacture of the machine. - Page 15 Spare parts 1 Spare parts 2 Translation...
- Page 16 Order Picture Part code Denomination Pc. Note. 32131 Shaft 32132 Lock pin 32133 Lifting arm Cylinder 50/36- 10073 32134 Frame 32135 11896 Pusher pin 32136 Lifting arm 32137 Hinge pin 32138 Valve support Power70 and KS35 32139 Valve Power70 and KS35 Intermediate 32140 beam...
