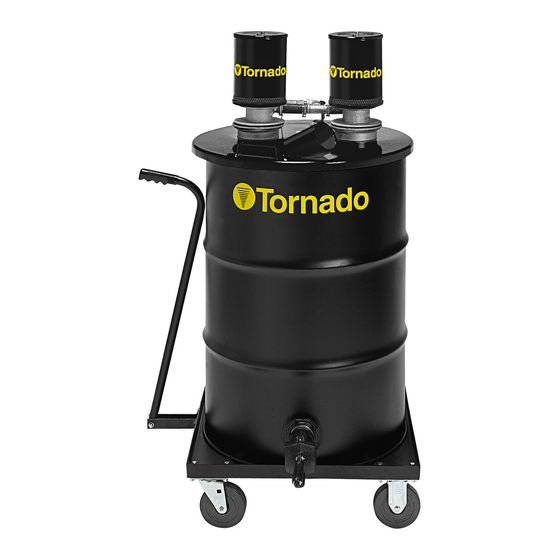

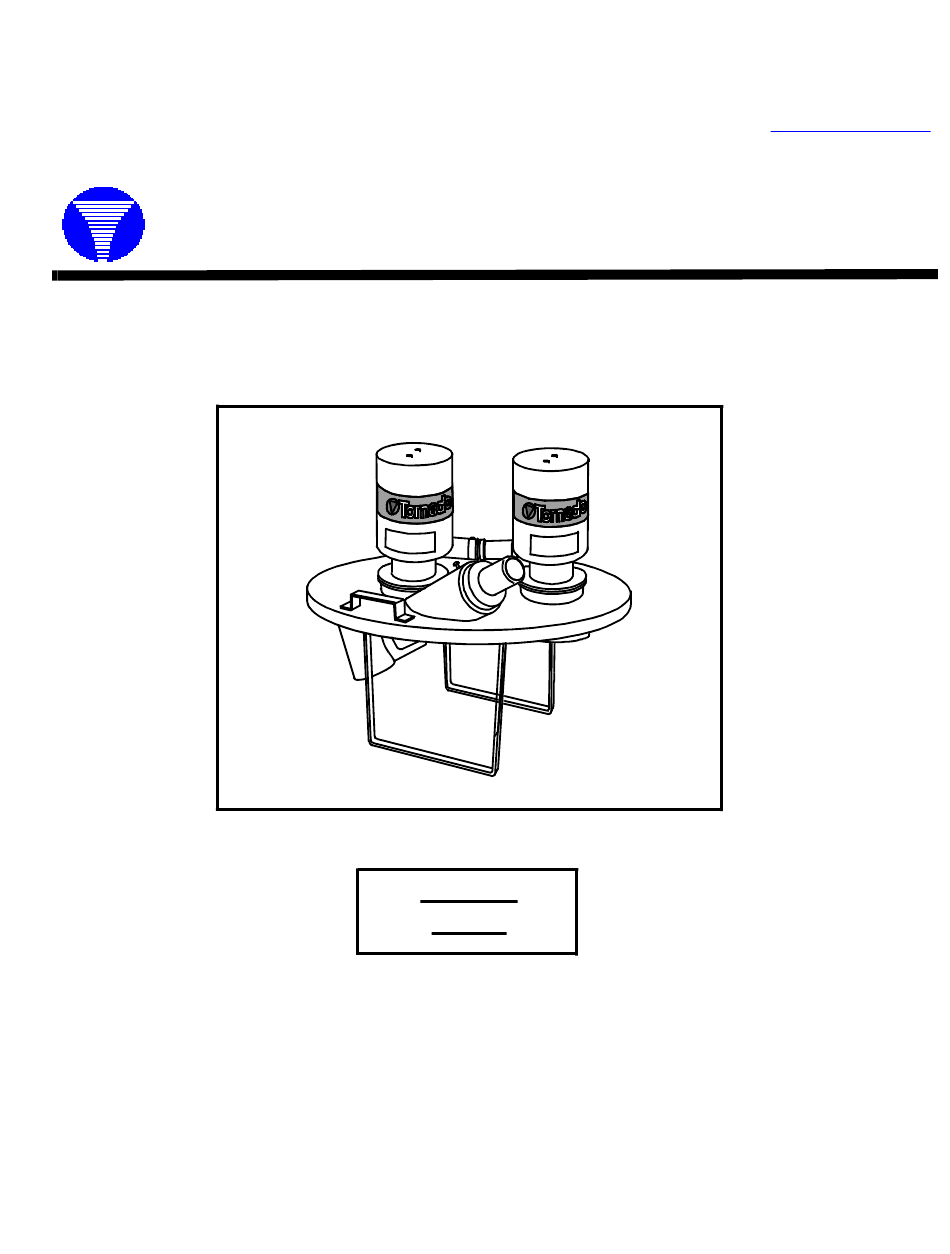

- Page 1 ® TORNADO INDUSTRIES 7401 W. LAWRENCE AVENUE CHICAGO, IL 60706 (708) 867-5100 FAX (708) 867-6968 www.tornadovac.com Tornado ® Operation & Maintenance Manual For Commercial Use Only MODEL 95961 DUAL INTERNAL AIR HEAD ASSEMBLY L2733A B/T 2/99 FOR COMMERCIAL USE ONLY...
-
Page 2: Table Of Contents
90 p.s.i at the gauge (valve fully open) allows for maximum pickup power. • 60 p.s.i. at the gauge (valve fully open) allows for lighter liquid pickup power. • A heavy duty 55-gallon rolled top drum is required, and is available from Tornado. -
Page 3: General Specifications
This compressed air vacuum has no moving parts and has tremendous suction for a portable unit. It is designed to fit onto a 55-gallon rolled top steel drum (Tornado # 95942) for volume pick-up with maximum efficiency. -
Page 4: Warranty
1 Year: Warranty on batteries, one full year, not pro-rated. Warranties do not cover components subject to normal wear or abuse and misuse, and have other limita- tions not specified here. For full details, contact your Authorized Tornado Distributor, Service Center, or the Tornado Technical Service Department. -
Page 5: Safety Instructions
Tornado Dual Internal Air Head Assembly Safety Instructions When using this unit, basic precautions should always be followed. Read all instructions before using this unit. WARNING: To reduce the risk of fire, electric shock or injury: Do not leave machine unattended when running. Turn off when not in use. -
Page 6: Warnings
Tornado Dual Internal Air Head Assembly WARNING: Failure to adhere to these instructions could result in serious bodily injury or property damage. BEFORE OPERATING MACHINE: Read this manual completely before attempting to operate machine. This manual has important information for the use and safe operation of the machine. -
Page 7: Head Assembly Setup
Drum Breuer Tornado does offer an optional internal filter kit 95942 that will convert this unit to a dry and moist pickup vac- uum. Please note that if this conversion is done, it will be considered a dry/moist pickup vacuum only, and cannot be used for any wet/liquid pickup of any kind. -
Page 8: Troubleshooting
Tornado Dual Internal Air Head Assembly Troubleshooting Guidelines Problem Remedy 1. Machine does not operate Make sure air line valve is in ON position. Inspect air regulators for interference of air flow. Inspect air compressor for adequate size, and verify that proper air pressure is available (60 to 90 p.s.i.) -
Page 9: Things To Know
Tornado Dual Internal Air Head Assembly Things To Know AIR COMPRESSOR EVALUATION COMPRESSED AIR VACUUM FACTS Independent of high horsepower or high compressor 1. Use the smallest air jet possible to do the job. The C.F.M. rating claims made by individuals, the final evalua- smaller the jet, the lower the compressed air C.F.M. -
Page 10: Compressor Evaluation Spare Parts
Tornado Dual Internal Air Head Assembly 17131 Figure No. 3 Jumbo Cover Assembly... - Page 11 Tornado Dual Internal Air Head Assembly (95990) EXTERNAL FILTER AIR VAC ITEM PART NO. OTY. DESCRIPTION 01979 SCREW 04928 MUFFLER COVER 15967 MUFFLER SHELL 95054 SILENCER 05723 NOZZLE 02038 SCREW 01574 LOCKWASHER 04927 MUFFLER BASE 05724 GASKET 02481 “O” RING...
- Page 12 Tornado Dual Internal Air Head Assembly (95992) CONNECTOR ASSY. DOUBLE HEAD ITEM PART NO. OTY. DESCRIPTION 06384 JOINT UNION 05730 NIPPLE 05729 90 ELBOW 05726 MALE ADAPTOR-HOSE TO PIPE 05727 CLAMP 11561 HOSE 05731 PIPE TEE 04985 VALVE 15163 BRACKET...
