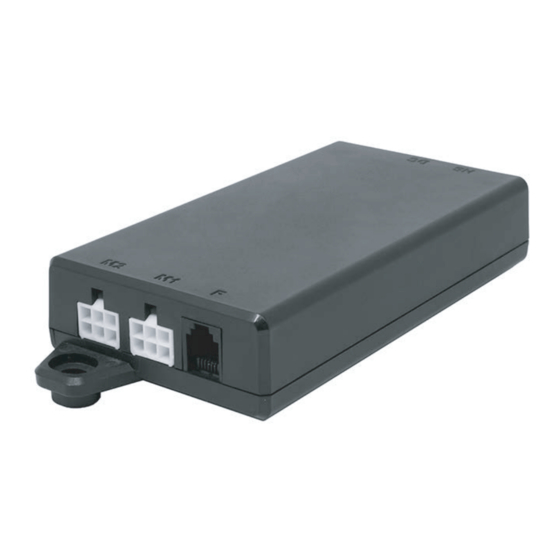

Summary of Contents for PROGRESSIVE DESK FLTCON-2-24VDC

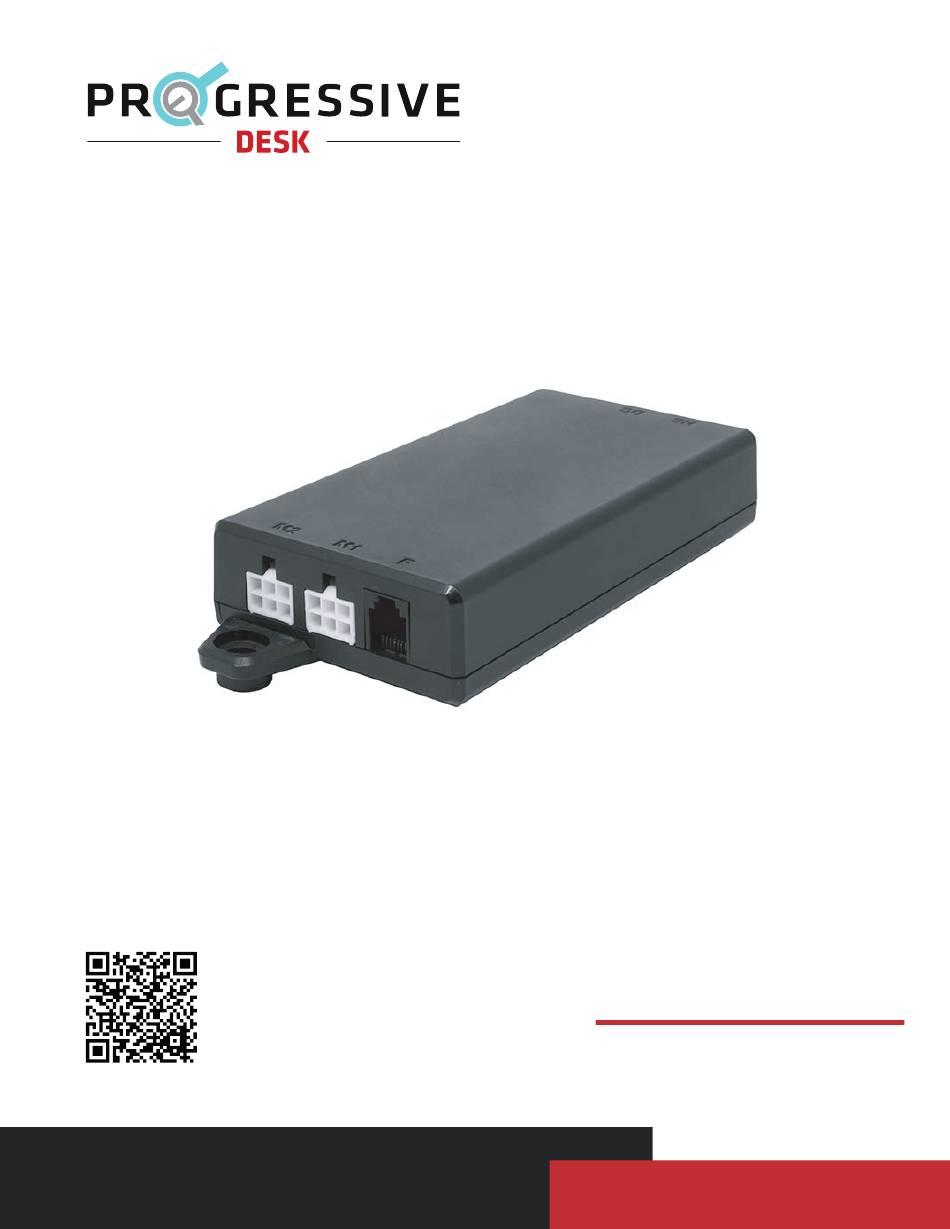

- Page 1 FLTCON-2-24VDC User Manual Scan for more information! V 1.01...
- Page 2 Table of Contents Dimensional Drawing Specification Installation Operational Procedure Reset Procedure Setting Upper & Lower Limits Troubleshooting Have any queries? Our expert engineers are here to help! sales@progressivedesk.com 1-800-828-9414 progressivedesk.com P a g e | 2...
- Page 3 Dimensional Drawing Specifications Specification Description Input Voltage 24VDC Output Voltage 24VDC Current Rating total Current Rating per channel Number of Channels Feedback Input Hall Effect Sensor Duty Cycle 10% (2 min on, 18 min off) Operational Temperature 5°C to 40°C Housing Color Black Housing Material...
- Page 4 2. Remove the battery from the dock and attach the battery dock to the underside of the tabletop using the included hardware. 3. Connect the dock wiring to the control box. For a mobile desk, the new FLTCON-2-24VDC control box will replace the existing one on the purchased unit.
- Page 5 Reset Procedure To enter the Reset Procedure, press and hold the DOWN button on the Hand Remote until the LED shows "RST" (If you are not using an LED hand remote, hold the DOWN button for about 10 seconds). Release the DOWN button. Press and hold the DOWN button once more until the desk(s) lower completely then slightly rise before coming to a stop.
- Page 6 Troubleshooting Troubleshooting Guide Problem Description Solution Low power mode Press any button on the remote and LED will activate. activated Remote LED is off. Disconnect and reconnect the RJ-45 remote connector. Connection issue Ensure connection is secure and cable is not damaged. Follow "Setting Limit Switches"...
