INSTALLATION & OPERATION MANUAL

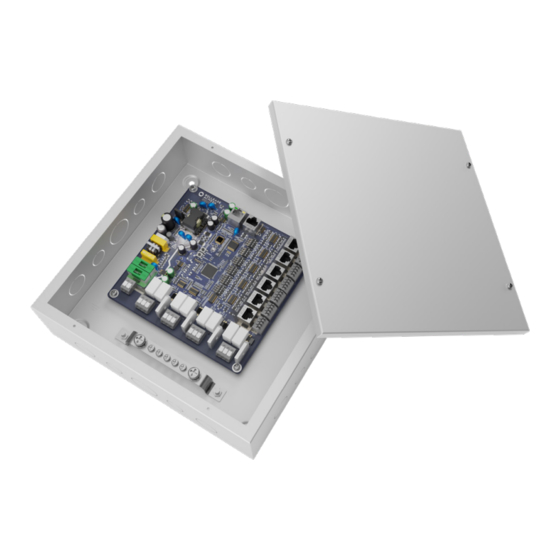

4 Channel Motor Controller
Automate | 4 Channel Motor Controller provides individual and group control of one to four ML motors.
This motor controller can be activated manually or automatically via Dry Contact Switches, TCP/IP protocol and
RS485 communication and can be customised to suit a variety of configurations, allowing singel window control,
floor control and entrie building control.
Part #: MT02-0401-331011 Automate | 4 Motor Controller 85-240VAC Input
Features:
•
Individual and Group Control of up to 4 ML motors.
•
4 individual Inputs for dry contact switches via termina; block and RJ45.
•
2 Master Inputs for dry contact control of all 4 motors and making larger groups.
•
Customisable motor groups and dry contact function using DIP switch selections.
•
Advanced control using ARC Serial Commands via TCP/IP and RS485.
AUTOMATE_4-M-CTRL_PRGM_GL_v2.1_DEC_2022
DRY CONTACT
GROUP
INPUT
CONTROL
Advertisement
Table of Contents
Summary of Contents for rollease acmeda AUTOMATE MT02-0401-331011
- Page 1 INSTALLATION & OPERATION MANUAL 4 Channel Motor Controller DRY CONTACT GROUP INPUT CONTROL Automate | 4 Channel Motor Controller provides individual and group control of one to four ML motors. This motor controller can be activated manually or automatically via Dry Contact Switches, TCP/IP protocol and RS485 communication and can be customised to suit a variety of configurations, allowing singel window control, floor control and entrie building control.
- Page 2 Veuillez recycler les piles et les produits électriques endommagés de 5005833 manière appropriée. For UK Market For EU Market For US Market 2 | Automate ROLLEASE ACMEDA Programming Instructions | 4 Channel Motor Controller ™ For US Market For AU Market...
-
Page 3: Table Of Contents
4.5.3 TCP/IP Message Format 4.5.4 TCP/IP Setup (Via LinQ Tool) SERIAL COMMANDS TABLE 5.1 Controller/Global Commands 5.2 Motor Commands (RS485) 5.3 Motor Commands (TCP/IP) TROUBLE SHOOTING NOTES ROLLEASE ACMEDA Programming Instructions | 4 Channel Motor Controller | 3 Automate ™... -
Page 4: Overview
Select how the master switch/s will function Power LED Indicate PCB power and programming status Motor LEDs Indicate motor movement for 4x motors Fuses Protection for over-current and over-voltage 4 | Automate ROLLEASE ACMEDA Programming Instructions | 4 Channel Motor Controller ™... -
Page 5: Specifications
Wire Gauge 1.0 - 1.5mm (16 - 18AWG) Wire Type Solid core & stranded Wire Strip Length 8.5mm - 9.5mm Dry Contact Terminals O Open C Close G Ground S Stop ROLLEASE ACMEDA Automate Programming Instructions | 4 Channel Motor Controller | 5 ™... -
Page 6: Dry Contact Rj45
UP, DOWN or STOP is received. SWITCHES 1 2 3 4 MASTER Example shows both switches and master in mode 1 1 2 3 4 6 | Automate Programming Instructions | 4 Channel Motor Controller ROLLEASE ACMEDA ™... -
Page 7: Table Of Motor Operation Modes
Motor moves to limit when an Open or Closed button is pressed and released. Single Press for shades with 1 2 3 4 large vanes. As per Mode 5, but 0.50 second pulses. ROLLEASE ACMEDA Automate Programming Instructions | 4 Channel Motor Controller | 7 ™... -
Page 8: Installation
Once completed, the RJ45 dry contact switch can connveniently move the shade to intermediate pre-set positions. Set up is now complete. 8 | Automate Programming Instructions | 4 Channel Motor Controller ROLLEASE ACMEDA ™... -
Page 9: Advanced Setup & Functions
To reset the pre-set positions, press the ‘PROGRAMMING’ button for 3 seconds. The motor con- troller will now re-calibrate to the limits of each shade and restore all pre-set positions to their default values. ROLLEASE ACMEDA Programming Instructions | 4 Channel Motor Controller | 9 Automate... -
Page 10: Rs485
0-9 & A-Z, 0-9 & A-Z, “?” for broadcast broadcast non- inquiry address 000 for address 000 for numerical of motor querry, range querry, range ASCII status 001-zzz 001-zzz 10 | Automate Programming Instructions | 4 Channel Motor Controller ROLLEASE ACMEDA ™... -
Page 11: Rs485 Setup (Via Ra Serial Port Application)
Download the RA Serial Port Application (Serial String Compiler & Testing Tool) available on the Rollease Acmeda website. Run the application. Referring to the serial commands table of this manual, send commands to the 4CH motor controller to operate the shades. -
Page 12: Tcp/Ip
ASCII motor status NOTES: As commands over TCP/IP are sent to the IP address of the 4CH Motor Controller, no delimiter is required in the message format. 12 | Automate Programming Instructions | 4 Channel Motor Controller ROLLEASE ACMEDA ™... -
Page 13: Tcp/Ip Setup (Via Linq Tool)
Connect a network cable between the 4CH motor controller and router. Download the LinQ Tool available on the Rollease Acmeda website. Run the application. Press the green drop-down arrow on the ‘connect’ box, and then press ‘scan for hubs on the network’. -
Page 14: Serial Commands Table
!000A; via serial input Test controller !000T; !000A; connection !111P;SW1,1111;SW2,1010; SW3,1100;SW4,1000; SWM,0010;MST,0100; Get all controller !111P?; MT1,LC1,RC1,UT1,DT1,RT1,TA1,TS1,TN1; parameters MT2,LC2,RC2,UT2,DT2,RT2,TA2,TS2,TN2; MT3,LC3,RC3,UT3,DT3,RT3,TA3,TS3,TN3; MT4,LC4,RC4,UT4,DT4,RT4,TA4,TS4,TN4; Controller factory 000* !111D000*; !111D000A; reset 14 | Automate Programming Instructions | 4 Channel Motor Controller ROLLEASE ACMEDA ™... - Page 15 • RTx = Running Time • TAx = Tilt Angle Ratio • TSx = Tilt Steps • TNx = Tilt Number NOTE: Milliseconds presented in HEX format. ROLLEASE ACMEDA Programming Instructions | 4 Channel Motor Controller | 15 Automate ™...
-
Page 16: Motor Commands (Rs485)
Only travel % can be set, not tilt %. Eg. Changed MT1 Pre-set 1 to 80%. Move motor to !000DMT1pPmX; !000DMT1r80b00; X = 1, 2, 3, 4 preset position 16 | Automate Programming Instructions | 4 Channel Motor Controller ROLLEASE ACMEDA ™... -
Page 17: Motor Commands (Tcp/Ip)
Only travel % can be set, not tilt %. Eg. Changed MT1 Pre-set 1 to 80%. Move motor to !MT1pPmX; !MT1r80b00; X = 1, 2, 3, 4 preset position ROLLEASE ACMEDA Automate Programming Instructions | 4 Channel Motor Controller | 17 ™... -
Page 18: Trouble Shooting
Press and hold the ‘MOTOR SELECT’ button to microcontroller for 3 seconds to update the microcontroller with the DIP settings. For additional troubleshooting and setup tutorials, visit: 18 | Automate ROLLEASE ACMEDA Programming Instructions | 4 Channel Motor Controller ™... -
Page 19: Notes
NOTES ROLLEASE ACMEDA Programming Instructions | 4 Channel Motor Controller | 19 Automate ™... - Page 20 SLEEP MODE ROLLEASE ACMEDA | USA ROLLEASE ACMEDA | AUS- ROLLEASE ACMEDA | EUROPE TRALIA Level 7 / 750 East Main Street Via Conca Del Naviglio 18, Stamford, CT 06902, USA 110 Northcorp Boulevard, Milan (Lombardia) Italy Broadmeadows VIC 3047, AUS...
