aditec ETA 110 Operating Manual

Temperature Controller ETA 110
_________________________________________________________________________________________________________
ETA110 V03
The ETA 110 works as a heating- or cooling controller. A second relay can be used as either
an operating, alarm, upper limit or lower limit relay.
The heating control can work in either two point-, XP or interval operation.
The nominal value limit for the temperature can be set by using a code.

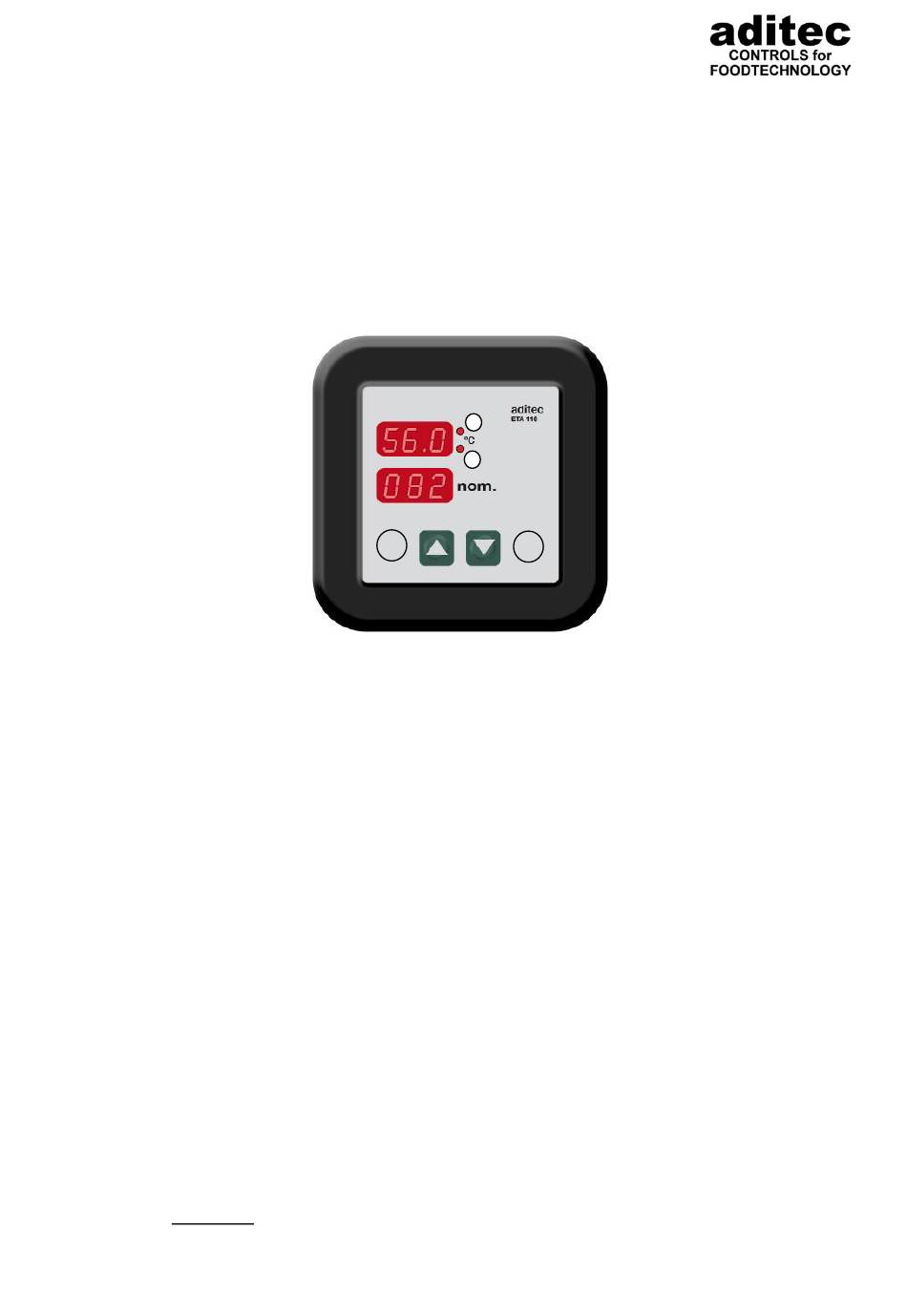

Display –actual
temperature
Display -nominal
temperature
button outer
left
When the controller is switched on while the buttons „Plus" and „Minus" are pressed
simultaneously, the nominal temperature value is reset to „0".
The actual temperature is shown in the upper display and the nominal temperature in the lower
display.
As soon as the controller has been connected to the mains it is in operating mode. (Please note:
also see "setting options" under code „100").
The nominal temperature can be set within the programmed limits by using the „Plus"- and
„Minus" buttons.
Code entry
: press the two buttons on the outer left and right simultaneously, for ca. 3
seconds. The lower display will show „Cod". Use the „Plus" and „Minus" buttons to set the code
numbers (upper display). Confirm the code by pressing the same outer buttons again. To quit
the code, press these two buttons yet again.
Activation or deactivation of the outer left button: Code 100
Upper display shows „StP".
Choose between „OFF" (deactivated) and „On" (activated) by using the arrow
buttons.
Be aware: the following only applies when the button on the outer left has been
_________________________________________________________________________________
04.06.09
Operating manual
arrow
buttons
plus/minus
activated:
1
2
button
outer right
04.06.09
page 1
