Center Lite
User Manual
ECLV1.00
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Center Lite and is the answer not in the manual?

Questions and answers

Related Manuals for EVVR Center Lite

Summary of Contents for EVVR Center Lite

  • Page 1 Center Lite User Manual ECLV1.00...

  • Page 2: Table Of Contents

    Contents ......................2 Preface ......................4 Safety Instructions ..................4 General Safety ........................5 Location ..........................5 Cleaning and Maintenance ....................5 About Evvr Center Lite .................. 6 Overview ..........................6 Package Contents .......................7 Features ..........................7 Specification ........................9 Parts and Functions ..................10 Before Use ....................12 Assemble the Power Adapter ...................
  • Page 3 Shut Down the device....................... 16 Restore to Factory Settings ....................17 Re-enable Wi-Fi Configuration ..................17 Legal Compliance ..................18 Disposal Instructions ......................18 CE Compliance Statement ....................18 FCC Statement ......................... 19 Warranty and Service .................. 20 Limited Warranty ......................20 Service ..........................

  • Page 4: Preface

    1. Contents Thank you for purchasing Evvr Center Lite, the smart home controller. In order to use your controller safely and effectively, please read this User Manual thoroughly before use and follow the instructions provided. Please keep this User Manual for future reference.

  • Page 5: General Safety

    General Safety • This product is designed to be used in dry indoor places. It is not waterproof, please keep it away from rain or water. • Adapter shall be installed near the device and shall be easily accessible. • Do not use the device if it is damaged or it shows any kind of visible damage. •...

  • Page 6: About Evvr Center Lite

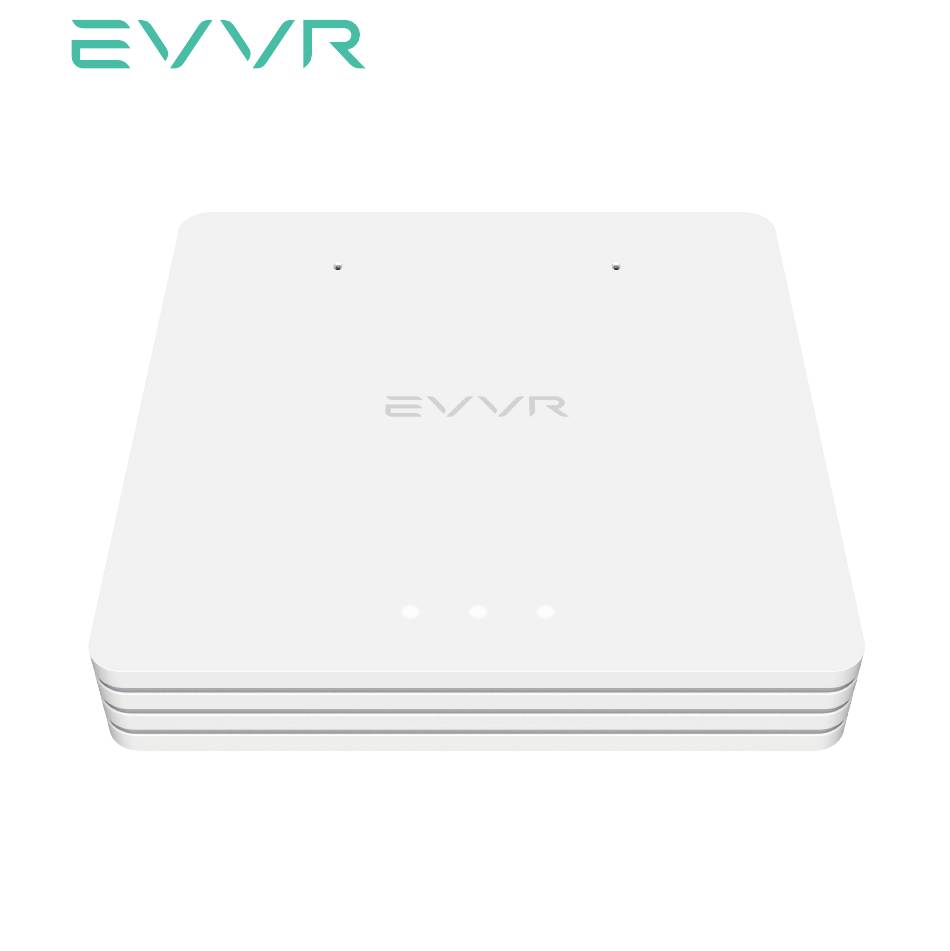

    3. About Evvr Center Lite Overview Evvr Center Lite is a smart home controller that can manage various smart devices from different brands. It supports ZigBee, Z-Wave, Wi-Fi, Bluetooth devices and other connected devices for which there are corresponding and...

  • Page 7: Package Contents

    Features • Easy to Use Evvr Center Lite works out of the box, free of wiring or installation. • Internet Independent Evvr Center Lite processes and stores data locally with end to end encryption, protecting your data and privacy. It can work even without internet.
  • Page 8 You can monitor the status of your smart devices on TV or display when the hub and TV/display are connected with an HDMI cable. • Backup Battery In case of a power outage, Evvr Center Lite can continue working with the built-in rechargeable battery.

  • Page 9: Specification

    Specification Model US Version: ECL-NAZWZBBTG1 EU Version: ECL-EUZWZBBTG1 Oceania Version: ECL-OAZWZBBTG1 Processor 1.2GHz Quad-Core Cortex™-A7 Communication ZigBee 3.0; Z-Wave Plus; IEEE 802.11b/g/n; BLE 4.0 Storage 8GB eMMC Memory 1GB DDR3 1333MHz Built-in Speaker 1.0W/7Ohm Built-in Battery 2500mAh Rechargeable Lithium-ion Battery Adapter Input: AC 100-240V;...

  • Page 10: Parts And Functions

    4. Parts and Functions Back View Reset Button HDMI Port USB Port Parts Functions Reset Button Restore to factory settings. See 7. Basic Operations. Power Port The supplied power adapter converts AC power to DC power for use with this port. HDMI Port Support an HDMI cable for connection to TV or display.
  • Page 11 Top View The LED indicates the real-time status of the hub and connected devices: Solid white The device is starting up. Solid green 1. The device is powered on. 2. The device works normally. Flashing green The device is discovering smart devices. Solid yellow Internet disconnected.

  • Page 12: Before Use

    5. Before Use Assemble the Power Adapter Before use, you need to connect the AC adapter with the plug to assemble a ready to use the power adapter. » Properly align the key in the plug and the slot in the AC adapter, and finger- tighten the plug and AC adapter to hold the adapter firmly in place.

  • Page 13: Connect To Tv/Display (Optional)

    Connect to TV/Display (Optional) You can see the real-time status of the device and connected devices on a TV or display when the hub and TV/display are connected with an HDMI cable. » Attach the HDMI cable to the device and plug in the other side of the cable to the TV/display.

  • Page 14: Getting Started

    6. Getting Started Download Evvr App Search “ Evvr ” in Apple App Store or Google Play and download the latest version of the Evvr App. Note: The Evvr App supports iOS 12+ or Android OS 8.0+ Create Account /Login (Optional) You can create an account as instructed.

  • Page 15: Pair Evvr Center Lite

    » Insert an active Ethernet Cable into the Ethernet port of the hub. Pair Evvr Center Lite Follow the instructions on the app to pair Evvr Center Lite. Note:The first person who pairs the hub will be assigned as the owner of the hub.

  • Page 16: Basic Operations

    7. Basic Operations Boot the Device The hub is about to work when it is plugged into the outlet. Shut Down the Device The hub stops working when the DC end of the adapter is unplugged from the device. If the DC end is plugged, while only the AC end of the adapter unplugged from the outlet.

  • Page 17: Restore To Factory Settings

    Restore to Factory Settings Unplug the DC end of the adapter from the device, and then re-plug the adapter into the hub while keep pressing the Reset Button until the LED glows white. Note: All user data will be cleared if the hub is restored to factory settings.

  • Page 18: Legal Compliance

    8. Legal Compliance Disposal Instructions This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 19: Fcc Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 20: Warranty And Service

    9. Warranty and Service Limited Warranty For warranty information, please visit https://www.evvr.io/warranty...

  • Page 21: Service

    Service If you have any question, please contact us through www.evvr.io. If it becomes necessary to return the device for repair, contact your local distributor for more information.
  • Page 22 Make Every Moment Meaningful. For more information, please visit www.evvr.io...
