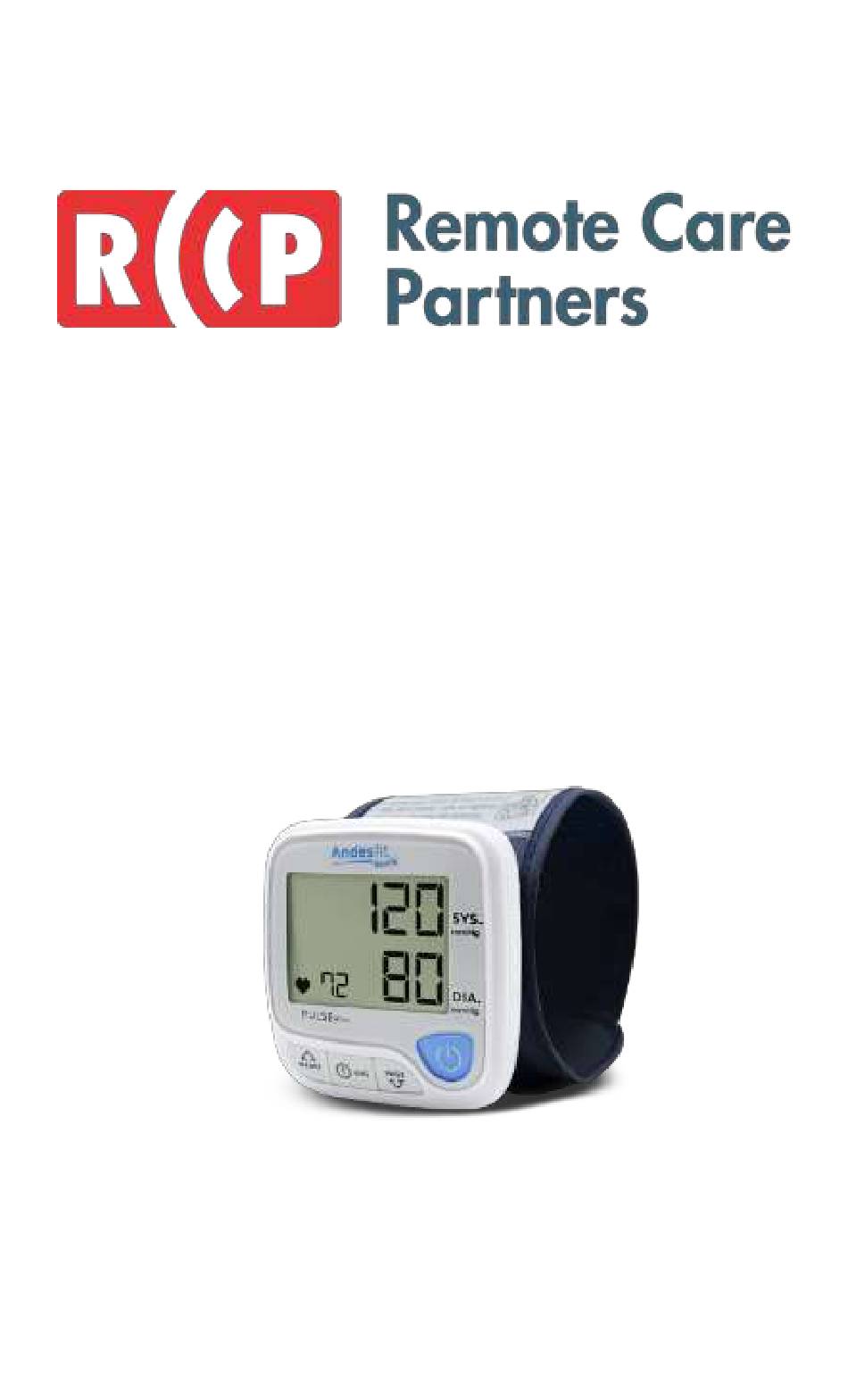

- Page 1 Wrist Blood Pressure Monitor Model # PB08...
-
Page 2: Table Of Contents
Wireless Wrist Type Blood Pressure Monitor TABLE OF CONTENTS INTRODUCTION ............... 4 NOTES ON SAFETY ............4 Handling batteries properly: ........5 WHEN TAKING A MEASUREMENT ........6 QUICK START ..............7 PROPER POSITIONING FOR TAKING A BLOOD PRESSURE MEASUREMENT ..............8 PRODUCT OVERVIEW............ - Page 3 Wireless Wrist Type Blood Pressure Monitor MEMORY FUNCTIONS ........... 18 View Past Readings ..........18 View Average Readings .......... 19 Delete Past Readings ..........19 TROUBLESHOOTING ............20 STORAGE AND MAINTENANCE ........20 SPECIFICATIONS ............22 CONTACT INFORMATION AND NOTICES ..... 23 FCC Compliance Statement ........
-
Page 4: Introduction
Model # ADF-B102W INSTRUCTION MANUAL INTRODUCTION This Blood Pressure Monitor is provided to you by Remote Care Partners (RCP) for use exclusively with the health monitoring program from your provider. Please read this manual carefully and keep it handy for future reference... -
Page 5: Handling Batteries Properly
Wireless Wrist Type Blood Pressure Monitor Handling batteries properly: As soon as old batteries run out, replace • them with new batteries. Do not use old and new batteries together. • Align the polarities of batteries correctly. • Remove the batteries when the unit will not be used for more than three months. -
Page 6: When Taking A Measurement
Wireless Wrist Type Blood Pressure Monitor WHEN TAKING A MEASUREMENT Avoid smoking, eating, or exercising for 30 minutes before taking measurements. Do not allow other people to use your blood pressure monitor. The blood pressure monitor is specifically assigned to you and you only. Allowing other people to use your monitor can mislead your provider. -
Page 7: Quick Start
& diastolic pressure values plus the pulse rate will display on the Blood Pressure monitor. 5. The readings will automatically be transferred to the RCP SmartHub and sent to your provider. V 1.0 Remote Care Partners Page 7... -
Page 8: Proper Positioning For Taking A Blood Pressure Measurement
Wireless Wrist Type Blood Pressure Monitor PROPER POSITIONING FOR TAKING A BLOOD PRESSURE MEASUREMENT V 1.0 Remote Care Partners Page 8... -
Page 9: Product Overview
Wireless Wrist Type Blood Pressure Monitor PRODUCT OVERVIEW Monitor Features One-Touch Operation • Irregular Heartbeat Detector • Blood Pressure Mode and Clock Mode • 4 User / 396 Total Memory • 4 Alarm Clock Settings • 5 Mode Averaging Function – Hour, Day, •... -
Page 10: Preparation Before Use
Wireless Wrist Type Blood Pressure Monitor PREPARATION BEFORE USE Insert the Batteries New batteries were installed in your device before shipping. Unless instructed by a support person, skip this section 1. Remove the battery cover by sliding it in the direction of the arrow 2. -
Page 11: Setting The Date And Time
Wireless Wrist Type Blood Pressure Monitor Setting the Date and Time It is not necessary to set the Date and Time on the device. The Date and Time of your readings are provided by the SmartHub. The Time and Date on the SmartHub are automatically synchronized with our servers. -
Page 12: Taking A Measurement
Wireless Wrist Type Blood Pressure Monitor TAKING A MEASUREMENT Note: • Avoid smoking, eating, or exercising for 30 minutes before taking a measurement. • Do not move or talk during measurement. • Measurement can be taken on either arm. Sitting Correctly 1. -
Page 13: Applying The Wrist Cuff
Wireless Wrist Type Blood Pressure Monitor Applying the Wrist Cuff 1. Place your elbow on a table, palm facing upward, and wrap the arm cuff around the left wrist. 2. Pull on the end of the cuff until it wraps securely around your wrist. -
Page 14: Taking The Measurement
& diastolic pressure values and pulse rate will display on the Blood Pressure monitor. 4. The readings will automatically be transferred to the RCP SmartHub and sent to your provider. You can press the "Start " button at any time to... -
Page 15: Heartbeat Readings
Wireless Wrist Type Blood Pressure Monitor HEARTBEAT READINGS Besides Systolic and Diastolic values, your pulse will also be displayed after a measurement. This unit has a unique feature that alerts the user of irregular heartbeat detection during measurement. Irregular Heartbeat Note: An irregular heartbeat is defined as a heartbeat rhythm that varies more than 25% from the... -
Page 16: Regular But Below Normal Heartbeat
Wireless Wrist Type Blood Pressure Monitor Regular but Below Normal Heartbeat If the monitor detects a pulse rate below 60 beats per minute during measurement, the monitor will display the pulse value and “LO” symbol alternately. Example:(58/LO) Regular but Above Normal Heartbeat If the monitor detects a pulse rate above 100 beats per minute during measurement, the monitor... -
Page 17: Who Indicator
Wireless Wrist Type Blood Pressure Monitor WHO INDICATOR This unit features a 6-color LED light indicator to display blood pressure levels in accordance with the WHO (World Health Organization) classification. Classification Color Optimal Blue Normal Sky Blue High-Normal Green Mild hypertension Purple Moderate hypertension Yellow... -
Page 18: Memory Functions
Wireless Wrist Type Blood Pressure Monitor MEMORY FUNCTIONS Although the device does store readings, these stored readings are not used by the RPM service. Each measurement is transferred via the SmartHub as it is taken. Measurements taken beyond the range of the SmartHub are lost to the system. -
Page 19: View Average Readings
Wireless Wrist Type Blood Pressure Monitor View Average Readings • Press the AVG” button to enter the Average function. • If the User Page is not what you want to view, press the “PAGE” button to select. • Press the “ AVG” button to view different Average Values. -
Page 20: Troubleshooting
Wireless Wrist Type Blood Pressure Monitor TROUBLESHOOTING Problem Cause Solution No display Have the Replace new batteries. when you batteries run press the out? Power /Start Are the battery Re-align batteries in correct polarities. button polarities wrong? “Err P” Fail to inflate Check if the cuff is connected correctly. - Page 21 Wireless Wrist Type Blood Pressure Monitor NOTE: Please recycle or dispose of batteries per local regulations. WARNING: Batteries may pose a choking hazard. As with all small items, do not let children handle batteries. If swallowed, seek medical attention immediately. PRECAUTION: Do not dispose of batteries in fire.
-
Page 22: Specifications
Wireless Wrist Type Blood Pressure Monitor SPECIFICATIONS Model No. ADF-B102 Measurement Oscillometric Method Measurement Pressure: 20 – 280 mmHg Range Pulse Rate: 40 – 195 beats/min Accuracy Pressure: +/- 3 mmHg Pulse Rate: +/- 5% Inflation Pump driven Pressure Detection Semi-conductor Power Supply 2x AAA batteries... -
Page 23: Contact Information And Notices
Wireless Wrist Type Blood Pressure Monitor CONTACT INFORMATION AND NOTICES Remote Care Partners 855-477-7000 www.remotecarepartners.com FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. - Page 24 Wireless Wrist Type Blood Pressure Monitor FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
