CUSCO cardio 300 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
Resting and stress ECG
custo cardio 300
custo diagnostic 5.8
CMA 0018 ∙ DK 2132 ∙ Version 1 ∙ 2022/10/25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cardio 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for CUSCO cardio 300

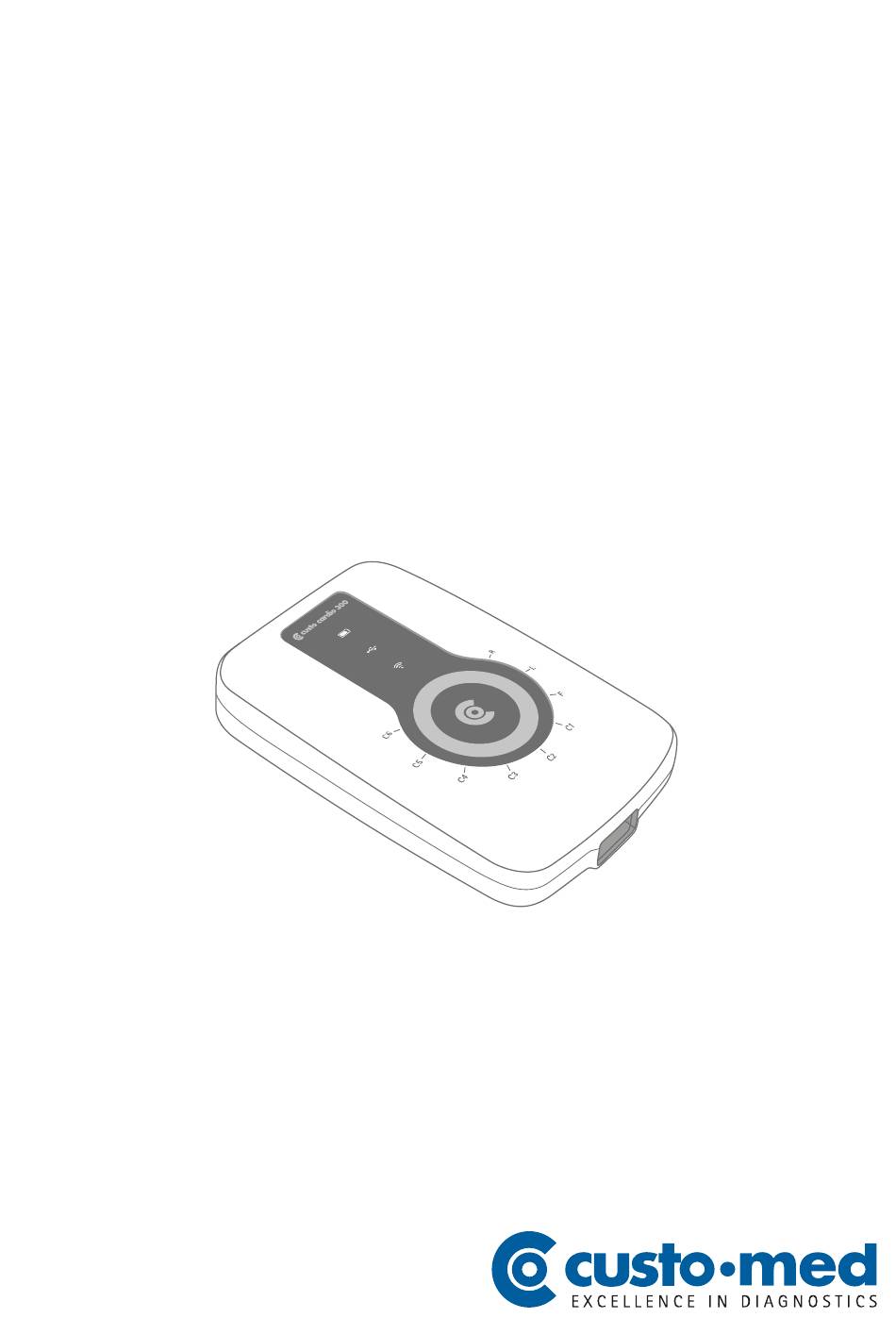

  • Page 1 Operating Manual Resting and stress ECG custo cardio 300 custo diagnostic 5.8 CMA 0018 ∙ DK 2132 ∙ Version 1 ∙ 2022/10/25...
