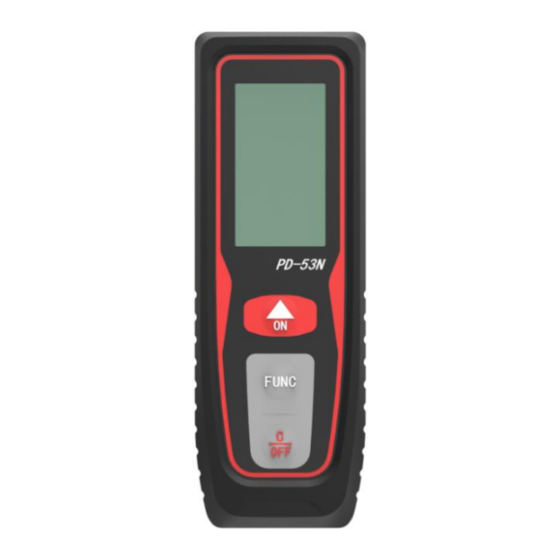

Hand-held laser distance meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HAND-HELD LASER DISTANCE METER
PD-53
USER MANUAL V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD-53 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Medid PD-53

  • Page 1 HAND-HELD LASER DISTANCE METER PD-53 USER MANUAL V 1.0...

  • Page 2: Safety Regulations

    Safety Regulations Before using this product, please carefully read and understand all the terms and operational guidelines in this manual. Hazardous laser radiation damage, electric shock or personal injury may occur if operations are not implemented under those safety regulations in this operation manual. Do not change the performance of the laser in any way, otherwise it may cause dangers due to laser exposure.
  • Page 3 Picture A Picture B...

  • Page 4: Overview Keyboard

    Congratulations on your purchase of PD-53 distance meter. The safety regulations and instructions along with the user manual should be read carefully before initial operation. Overview Keyboard See Picture A: 1 ON / Single measure / Continuous measure 2 Function key--Area / Volume measure/ Pythagorean measure...
  • Page 5 Start Up Inserting / Replacing Batteries Remove the battery cover, insert the battery correctly. Close the battery compartment. Replace the battery when this symbol constantly blinks in the display. · Only use alkaline batteries. · Batteries should be removed in case of danger of corrosion, if the device will not be used for a long time.

  • Page 6: Reference Setting

    Clear-Key Cancel the last action. Within a function (area, volume, etc.) single measurement can be deleted step by step and re-measured. Reference Setting Default reference setting is the rear of the device. Press this key to change the reference. The reference returns automatically to the default setting (rear reference) after power off.

  • Page 7: Continuous Measurement

    Measuring Single Measurement Press this key to activate the laser. Press again to implement the distance measurement. Continuous Measurement Press the key briefly to activate the laser, press and hold key for about 2 seconds to start continuous measuring. Press again shortly: continuous measurement is stopped. During continuous measuring, the latest measured value is displayed on the main display area, auxiliary display area shows the minimum and maximum measured value.
  • Page 8 Function Area Press this key once. This symbol is displayed. Press key to take the first line measurement. Press again and take the second line measurement. The result is displayed in the main display area. Volume Press this key once，This symbol is displayed.
  • Page 9 measured goal are at the right angle. Press this key briefly, this symbol is displayed in the screen. According to the on-screen prompts,press to take right angle edge - right angle, or bevel edge - right angle edge operation then the instrument will automatically realize Pythagorean operation, the result is displayed in the main display area.
  • Page 10 Appendix Display Notices In the course of using the instruments, information as below may be displayed on the screen： InFo Cause Correction Data overflow Repeat steps measurement Use the meter in distance range transfinite allowed Temperature too Let device cool down high Temperature too Warm device up...

  • Page 11: Technical Specifications

    Technical Specifications Range (for extended 0.05 m to 30 m Distances, use a target Plate) typically： ± 2mm * Measuring accuracy Minimum unit displayed 1 mm Laser class Laser type 635 nm, < 1 mW Automatic power off 180s √ Display illumination √...

  • Page 12: Warranty Card

    Do not immerse the instrument into water. You can use wet soft cloth to wipe the surface, but do not use corrosive lotion. Clean optical components like cleaning Eyeglasses and camera lenses （The laser emission window and receiving lens）. Warranty Warranty Regulations 1.
  • Page 13 Instrument Model Serial Number Date of sales  Sale company Sale Address Packing list Name quantity unit Remarks Main body battery User manual Certificate Name：Hand-Held Laser Distance Meter Model：PD-53 Date: Testing...
