ENG

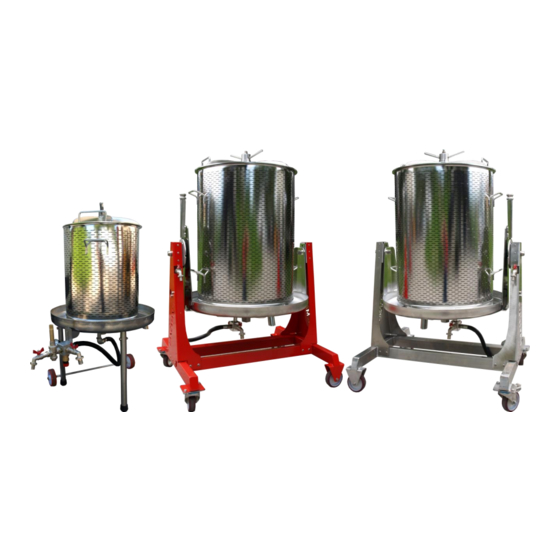

WATER PRESS LANCMAN™
VS-A, VSPX, VSPIX
INSTRUCTIONS FOR SAFE USE,
MAINTENANCE and SERVICING
Prekopa 10/b, SI-3305 Vransko, Slovenija
http://www.gomark.si, info@gomark.si
INSTRUCTION ARE INTELLECTUAL PROPERTY OF COMPANY GOMARK LTD.
CRIMINAL OFFENCE IS EVERY PROPAGATING AND COPYING OF INSTRUCTIONS WITHOUT
KNOWLEDGE OF OWNER!
Version 5.1: JUNE 2014, incl. CE declaration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANCMAN VS-A and is the answer not in the manual?

Questions and answers

Summary of Contents for GOMARK LANCMAN VS-A

  • Page 1 INSTRUCTIONS FOR SAFE USE, MAINTENANCE and SERVICING Prekopa 10/b, SI-3305 Vransko, Slovenija http://www.gomark.si, info@gomark.si INSTRUCTION ARE INTELLECTUAL PROPERTY OF COMPANY GOMARK LTD. CRIMINAL OFFENCE IS EVERY PROPAGATING AND COPYING OF INSTRUCTIONS WITHOUT KNOWLEDGE OF OWNER! Version 5.1: JUNE 2014, incl. CE declaration...
  • Page 2 WARNING THIS MACHINE CAN BE USED ONLY BY A PERSON WHO HAS BEEN ACQUAINTED WITH THE INSTRUCTIONS FOR USE AND SAFETY WARNINGS! WHEN HANDING OVER THE PRODUCT TO A THIRD PARTY THE INSTRUCTIONS FOR SAFE USE, MAINTENACE AND SERVICING MUST ALSO BE HANDED OVER!

  • Page 3: Table Of Contents

    2. INTENDED USE.............................. 6 3. SERVICING AND ORDERING SPARE PARTS ..................6 4. TECHNICAL DATA AND DESCRIPTION OF THE MASCINE ............7 4.1 W LANCMAN VS-A ........................7 ATER PRESS 4.1.1 Technical data ............................7 4.1.2 Description ..............................7 4.2 W LANCMAN VSPX ........................

  • Page 4: Declaration Of Conformity

    DECLARATION OF CONFORMITY EEC DECLARATION OF CONFORMITY nr. 01/2014 Herewith we, GOMARK d.o.o., Prekopa 10/b, 3305 Vransko, Slovenia declare with full responsibility, that the machine mentioned below is produced in accordance with the regulations, listed below. This statement is not valid following unauthorized modifications to the machine.

  • Page 5: Warranty Terms And Conditions

    WARRANTY TERMS AND CONDITIONS The warranty applies to machines and components - if used properly (as described in the user manual) they will work flawlessly. Warranty period: for home use: 24 months, for professional use: 12 months (industry). The warranty covers replacement of defective parts and repair work, but excludes transport fees. Warranty applies only with a correctly completed warranty certificate and receipt of purchase.

  • Page 6: A Word To The Purchaser - User

    Operating temperature range: 5° C to 80° C (41 to 176 degree Fahrenheit). 3. SERVICING AND ORDERING SPARE PARTS Servicing and troubleshooting during the warranty period and afterwards will be performed by: Gomark, trade and production Ltd. Prekopa 10/b, SI-3305 Vransko Telephone: 03/700 15 03...

  • Page 7: Technical Data And Description Of The Mascine

    4. TECHNICAL DATA AND DESCRIPTION OF THE MASCINE 4.1 Water press LANCMAN VS-A 4.1.1 Technical data Description WATER PRESS LANCMAN Type: VS-A 35 VS-A 55 VS-A 80 VS-A 120 Dimensions (mm): 550x550x950 600x600x950 600x600x1250 650x650x1250 Basket size: 35 L 55 L...

  • Page 8: Water Press Lancman Vspx

    4.2 Water press LANCMAN VSPX 4.2.1 Technical data Description WATER PRESS LANCMAN Type: VSPX 80 VSPX 120 VSPX 170 VSPX 250 VSPX 80 PLUS VSPX120 PLUS VSPX 170 PLUS VSPX 250 PLUS Dimensions (mm): 800x870x1300 800x870x1300 800x870x1350 880x900x1600 Basket size: 80 L 120 L 170 L...

  • Page 9: Water Press Lancman Vspix

    4.3 Water press LANCMAN VSPIX 4.3.1 Technical data Description WATER PRESS LANCMAN Type: VSPIX 80 VSPIX 120 VSPIX 170 VSPIX 250 VSPIX 80 PLUS VSPIX 120 PLUS VSPIX 170 PLUS VSPIX 250 PLUS Dimensions (mm): 800x870x1300 800x870x1300 880x900x1350 880x900x1600 Basket size: 80 L 120 L 170 L...

  • Page 10: Preparing The Maschine

    5. PREPARING THE MASCHINE The press is powered with energy derived from water pressure, and presses previously crushed fruit towards the wall of the press basket. An efficient pressing requires a pressure of 2.5 bar which is achieved when the press is connected to the water supply system. The membrane is mounted axially in the middle of the pressure zone and is attached to the bottom of the container with a flange and six screws.

  • Page 11: Handling The Press

    6.2 HANDLING THE PRESS 1. PREPARE THE PRESS FOR OPERATION, 2. FILL THE BASKET OF THE PRESS WITH A CRUSHED PRODUCT (APPLES, GRAPES …), 3. PLACE THE LID ON THE BASKET AND SCREW IT DOWN WITH THE NUT, 4. ATTACH THE PRESS TO THE WATER SUPPLY SYSTEM USING A GARDEN HOSE, 5.
  • Page 12 Connect a flexible hose to the water supply valve (picture). Connect the other end of the hose to the water supply system. Open the ball valve for water supply and the valve on the water supply network and then start pressing. The membrane of the press fills with water for some time.

  • Page 13: Technology Of Pressing

    Use protective gloves when charging and discharging the press, since wet skin is susceptible to cuts. When discharging the basket never lift the full basket. Always discharge it with an additional grid. However, if you lift the basket, always grasp it by the basket handles. 7.

  • Page 14: Safety In Use Of The Machine

    basket and not against the bellows. Slightly open the water supply valve since the pressure in the chamber should not exceed 1 bar. The pressing takes 6 to 10 hours, depending on the size of the press. When pressing the wine sediment and lees use original bags of the appropriate size in order to avoid damage to the bellows.

  • Page 15: Identification And Marks

    9. IDENTIFICATION AND MARKS The machine is made in accordance with standards that allow the manufacturer to label it with CE. However, the machine causes some perils, and therefore there are, in accordance with preserving machine’s functionality, warning inscriptions and symbols – pictographs - on it. Explanation of the warning symbols (pictographs) on the machine: read instr.
  • Page 16 1. TRADEMARK – STICKER, 2. PRODUCER TABLE, NAME, TYPE, MAX PRESSURE, WORK MEDIA, WEIGHT, PROD. YEAR, PRODUCER, VARNINGS, EAN13, 3. TRADE MARK, 4. VARNINGS...

  • Page 17: Transportation And Storage Of The Machine

    10. TRANSPORTATION AND STORAGE OF THE MACHINE The total mass of the machine is listed in the table in chapter IV. The press can be moved and transported only when it is not attached to the energy source and when it is empty. The press can be easily moved by two adults.

  • Page 18: Troubleshooting

    – Safety valve activity checkup, – visual superficial checkup of the membrane. Annual checkup before the pressing season: – checkup of the peripheral metal sheet and welded spots in the framework, – complete contents of service before every use. 12. TROUBLESHOOTING Trouble Cause Solution...

  • Page 19: Models Vspx, Vspix

    14.2 MODELS VSPX, VSPIX 1 – ball-bearing taps for the application of water in to the system with the supplementary part for the flexible pipe, 2 – connection chamber 3 – air-releasing ball-bearing tap with the supplementary part for water outlet, 4 –...

  • Page 20: Dismantling And Removal Of The Machine (Tipping)

    15. DISMANTLING AND REMOVAL OF THE MACHINE (TIPPING) With regard to the instructions for safe use, maintenance and servicing, the machine as a whole has a fixed lifetime limit of 8 years. There are different lifetime limits for separate components of the machine, so they must be regularly replaced with new ones in case of certain problems, wear and tear and mechanical damage.

  • Page 21: Spare Parts

    SPARE PARTS 1. WATER PIPES VS-A pict.no. CODE description 7754 XVS- intake pipe A L=700 1 pcs 8929 XVS-CONECTOR HOLDER PCSA 1 pcs 5256 Manometer 0-4 BAR FI 40MM 1/8'' lower coupling 1 pcs 5255 Round tap with holander for tube ½'' 1 pcs 6349 Round tap with holander for tube ¾''...

  • Page 22: Water Pipes Vspx, Vspix

    2. WATER PIPES VSPX, VSPIX pict.no. CODE description remarks 5527 Threaded knee ZN ½'' 1 pcs 5527 5256 Manometer 0-4 BAR FI 40MM 1/8'' lower coupling 1 pcs 5256 7754 XVS- intake pipe A L=750 1 kos 80 L 7753 XVS- intake pipe B L=800 1 kos 120 L...

  • Page 23: 3, Rubber Bellow Vspx, Vspix

    3. RUBBER BELLOW VSPX, VSPIX...
  • Page 24 pict.no. CODE description remarks 6426 RUBBER BELLOW LANCMAN 55 1 pcs 55 L 6259 RUBBER BELLOW LANCMAN 60-80 1 pcs 80 L 5335 RUBBER BELLOW LANCMAN 120-170 A SD27 1 pcs 120, 170 L 5922 RUBBER BELLOW LANCMAN 250-300 1 pcs 250 L 5281 XVS-FLANGE 115/85/6 (VS55 / VS80)

  • Page 25: Press Housing Vs-A

    4. PRESS HOUSING VS-A pict.no. CODE description remarks 5834 XVS-RUBBER SHOE DIAM. 30 3 pcs 8396 NUT INOX M6 PLASTIC DIN 985 0,03 C 55, 80, 120 L 8395 SCREW 6KT INOX M8×40 DIN 931 0,03 C 55, 80, 120 L 5716 WHEEL POLIAMID FI 100/30/12/34/175 KG 2 pcs...

  • Page 26: Press Housing Vspx/Vspix

    5. PRESS HOUSING VSPX/VSPIX...
  • Page 27 pict.no. CODE description remarks 5579 XVS- HANDLE FOR LEVERAGE 1 pcs 7747 WASHER INOX M16 DIN 125 0,04 C 7746 NUT INOX M16 STOP DIN 985 0,02 C 5305 SCREW IMBUS INOX M10X30 DIN 7991 0,02 C 7118 SCREW 6KT ZN M16×95 8.8 DIN 931 0,01 C 7700 SCREW 6KT ZN M16X90 8.8 DIN 931...
