STC-9200 Thermostat
Quick Start Guide
(Version 21.08.02GEN)

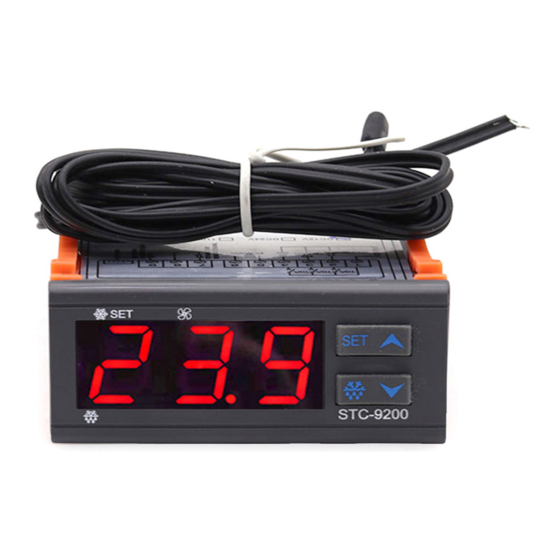

STC-9200 digital temperature controller controls three
loads: the refrigeration device, the defrosting unit, and
the Evaporator Fan; Typically suited to an oversized
https://www.thermo-hygro.com
freezer room.

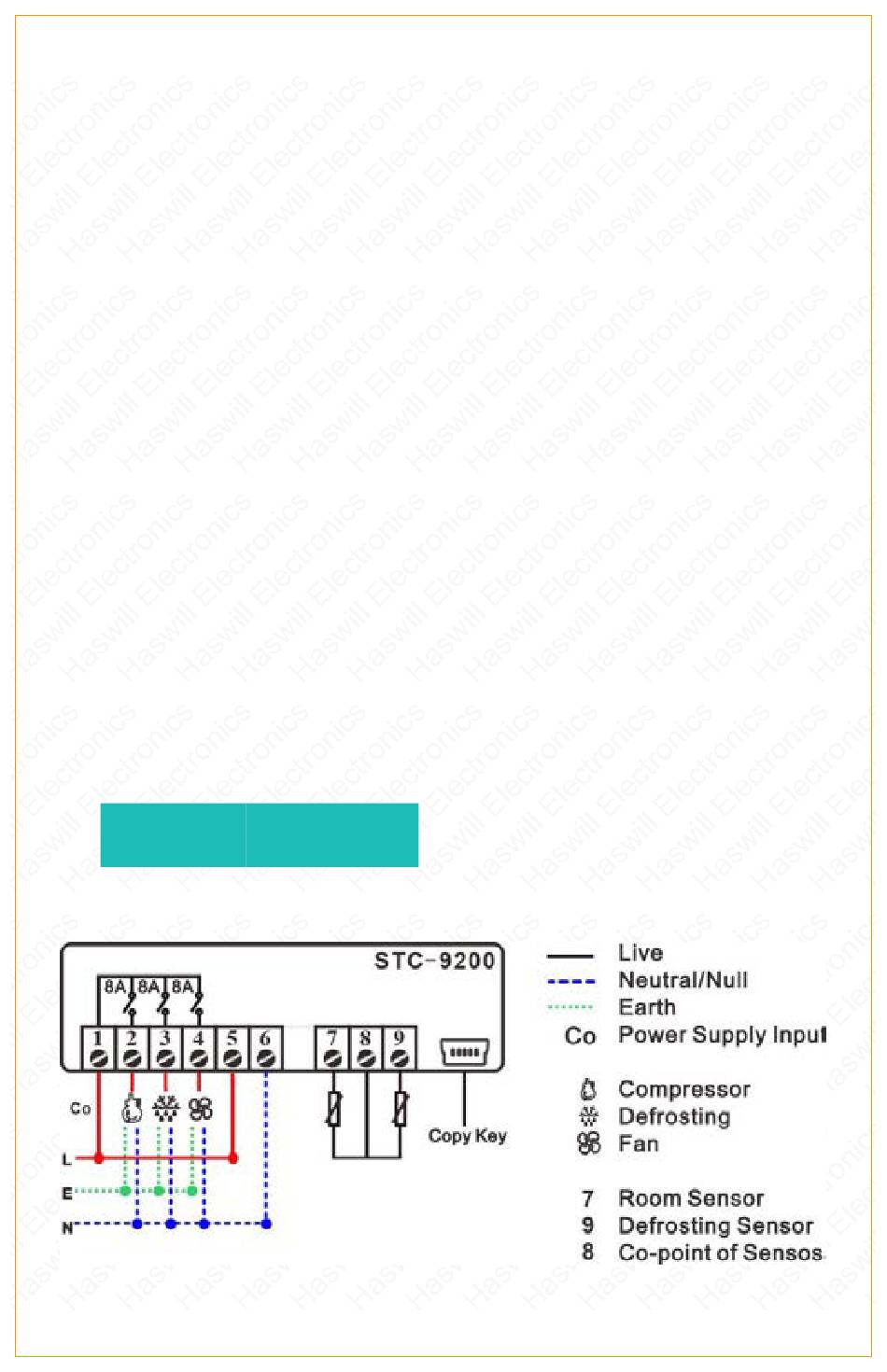

1. Wiring Diagram
1 / 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the STC-9200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for thermo-hydro STC-9200

  • Page 1 STC-9200 Thermostat Quick Start Guide (Version 21.08.02GEN) STC-9200 digital temperature controller controls three loads: the refrigeration device, the defrosting unit, and the Evaporator Fan; Typically suited to an oversized https://www.thermo-hygro.com freezer room. 1. Wiring Diagram 1 / 9...
  • Page 2 2. Set the target temperature The room temperature was supposed to keep at the range from "F1" to "F1 + F2" ("SET" to "SET + HY"). You can set them in the user interface and the Admin Interface; below is the 2 method.
  • Page 3 back to the menu list, you will see the code "F1" ("SET") again. Step 4: Switch to the "F2" ("HY") code by press the key. Repeat the above 2-4 steps to update all the code you want to. https://www.thermo-hygro.com At last: Just leave the unit alone; it will auto quit from setting mode back to normal status in 10s.
  • Page 4 F4 (LS): Lower limit for SP F5 (AC): Delay Time for the Compressor and Delay time for defrosting if it was Hot Gas mode F10 = 1 (TDF = HTG) If you found the "F1" (SET) value cannot be modified to the value you need, please adjust the F3 and F4 https://www.thermo-hygro.com (US and LS), which are the limitation for F1 (SET).
  • Page 5 temperature is lower than the preset "defrosting Stop temperature" F8 (DTE), which is a significant value to prevent over defrost. Time Condition 1: the real-time passes the preset interval time F6 (IDF), a regular parameter for almost all defrosting thermostats. https://www.thermo-hygro.com Time Condition 2: If the "defrosting method"...
  • Page 6 The operates method is just like page 1 shows; 6) F6 (IDF): Defrosting Cycle / Interval Time 7) F7 (ADF): Defrosting Lasting/Running Time 8) F8 (DTE): Defrosting Stop Temperature 9) F9 (FDT): Defrosting Water Dripping Time 10) F10 (TDF): Defrosting Mode: ...
  • Page 7 1 (IT): Shows the evaporator sensor temp. (continue showing 10 minutes once defrosting over) 4. Set the Evaporation Fan? Check the F15 (FOD) value before others https://www.thermo-hygro.com 13) F15 (FOD): Time delay seconds for the Fan < 0: in this case, f15 (FOD) is the period for the Fan starts earlier than the compressor starts, Fan stops if defrosting begins.

  • Page 8: Set The Alarm

    14) F13: Fan output modes when f15 (FOD) ≥ 0 0 (CTR): Fan Starts by F14 (FOT), Stop by F16 (FST). 1 (O-N): continuous working except defrosting begins. 2 (C-N): in this case, F15 (FOD) is the time for the Fan to start later than the compressor; the Fan stops if defrosting begins.
  • Page 9 Temperature - Measured Temperature. This is not a step-by-step user manual; It just shows the key points. https://www.thermo-hygro.com The new user should read the Full-Content Version User Manual Haswill Electronics STC-9200 Defrost Fan Controller Copyright Haswill-Haswell All Rights Reserved 9 / 9...
