POS-X Xr210 Ethernet Interface Install Guide

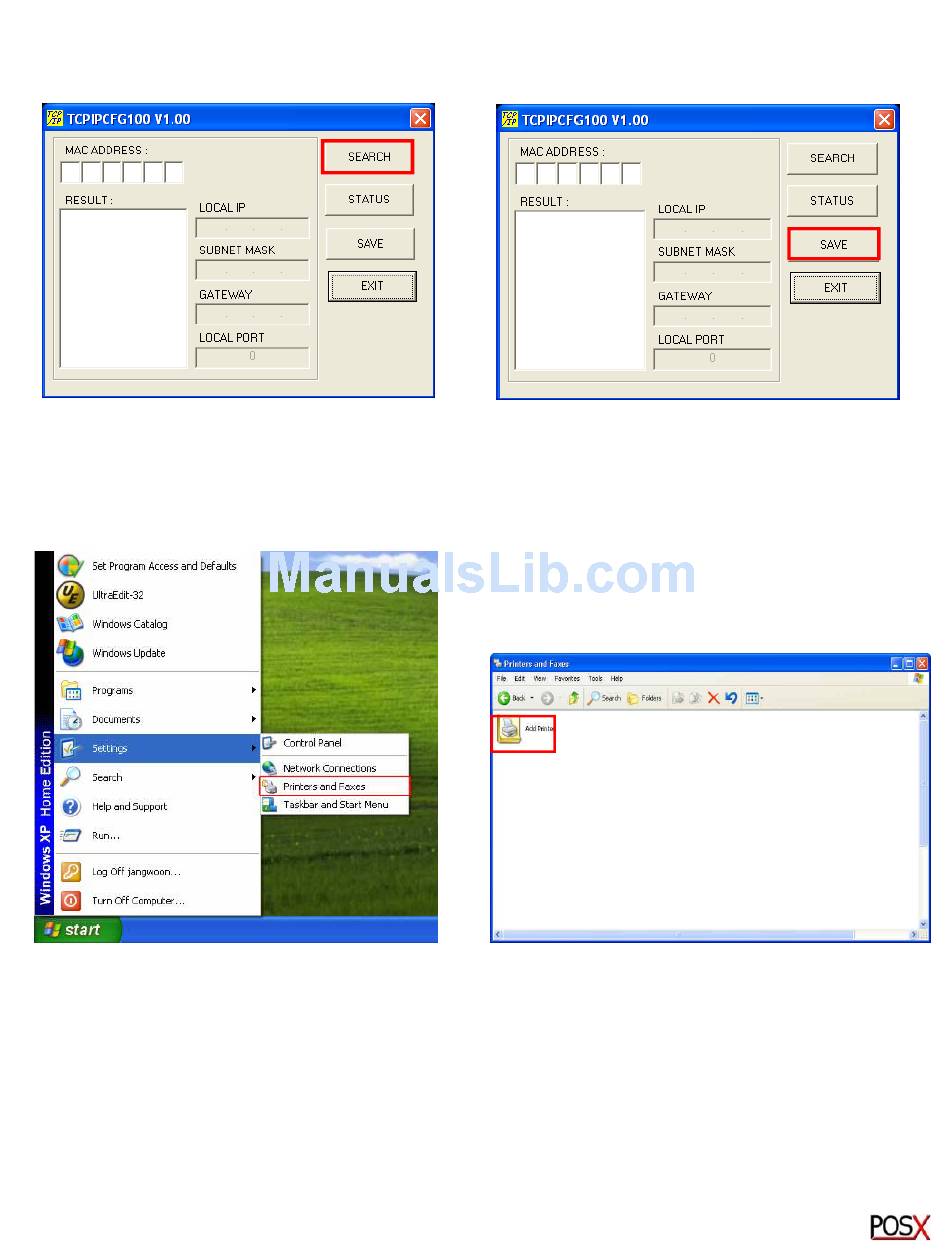

Start the TCPIPCFG program from the desktop short-

cut. Make sure that your printer is hooked up to your

network (this can be done with a direct connection to

the PC using a crossover cable or through a regular

network connection) and click on the search button.

This will search for any printers on your network.

Click PRINTERS AND FAXES option. This can be

found under SETTINGS it can also be found under

CONTROL PANEL

Once the program is done searching it will list all of the

found printers. You will then be able to edit the LOCAL

IP ADDRESS, SUBNET MASK, and GATEWAY to

match your network requirements. Once you have

made these changes click on the SAVE button this will

save your settings to the printer.

Click on the ADD PRINTER button.

Table of Contents

Need help?

Do you have a question about the XR210 and is the answer not in the manual?

Page 1 POS-X Xr210 Ethernet Interface Install Guide Start the TCPIPCFG program from the desktop short- cut. Make sure that your printer is hooked up to your network (this can be done with a direct connection to the PC using a crossover cable or through a regular network connection) and click on the search button.
Page 2 Click on the NEXT button Click CREATE A NEW PORT and select the STANDARD TCP/IP PORT. Fill in the IP address you assigned to your printer. It will automatically fill in the PORT NAME. Then click NEXT Select the LOCAL PRINTER ATTACHED TO THE COMPUTER option then click on NEXT Click on the NEXT button.
Page 3 Click the Finish button. Click the BROWSE button. Select OEMSETUP.INF and click the OPEN button. Click on the HAVE DISK button. Browse to the appropriate location and click the OK button. (If you are not sure where your drivers are refer to driver installation documentation.) Select the EPSON TM-U200B PARTIAL CUT driver and click the NEXT button.
Page 4 Select YES for printing a test page and click on the NEXT button. Select if you want to share the printer or not (once again user preference) then click the NEXT button. * If Applicable Click the OK button.
