EL646 signal conditioning card
for LVDT transducers
S2Tech Srl
Via Imperia 28 Milano – Italy
Phone: +39 02 8910142 Fax: + 39 02 89124848

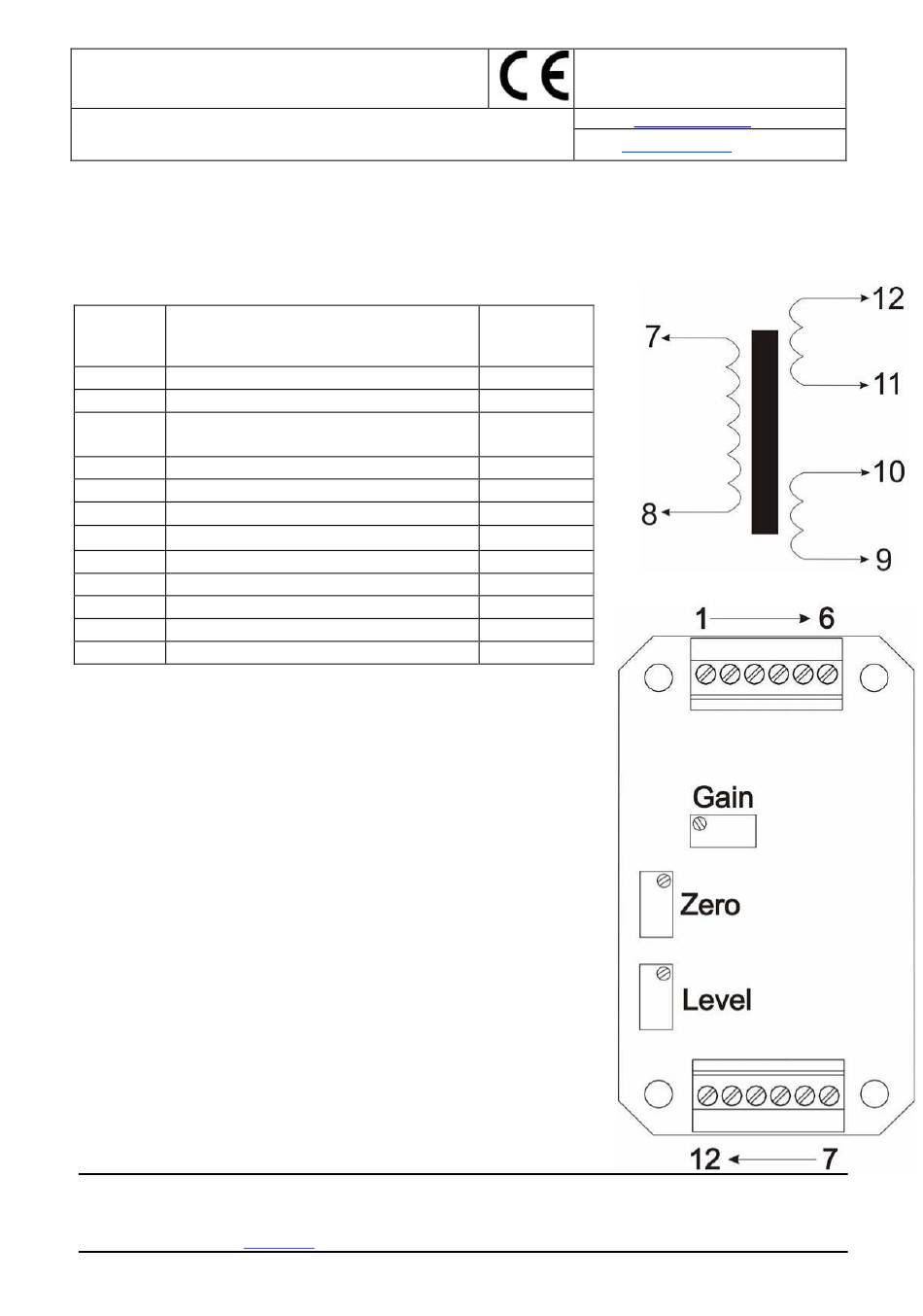

MOD. EL646 INSTRUCTION MANUAL
CONDITIONING CARD FOR LVDT POSITION TRANSDUCERS
ELECTRICAL CONNECTIONS
Screw
terminal
1
+ Output signal
2
- Output signal
3
+ Vps power supply to EL646 card
(12 or 24Vdc filtered and stabilized)
4
- Vps power supply to EL646 card
5
- Vps power supply to EL646 card
6
Earth
7
Power supply to LVDT primary
8
Power supply to LVDT primary
9
Secondary LVDT
10
Connect with 11
11
Connect with 10
12
Secondary LVDT
•
LVDT signal conditioning card mod. EL646:
Mod. EL546 are SMD signal conditioning cards that need to be
fed, from external power supply (not included), a filtered and
stabilized power supply and then they feed the Vac power
supply to the primary coils of the connected LVDT.
The extractable female connectors are included.
The EL%46 output impedance is approximately 10 Ohm.
•
Color connection code of DS Europe LVDT:
DS Europe LVDT color connection code listed in the chart can
be changed without notice.
•
Electrical features:
Power supply: 12Vdc o 24Vdc filtered and stabilized.
Zero regulation: 100% FS
Gain regulation: 1-1000
Working temperature: -30 up to +70°C
Power supply to LVDT primary coil: 0-30Veff., 2,5KHz.
(sinusoidal wave).
Current drawn: 60mA max. (depending on connected LVDT).
Notice: The information in this manual is subject to change without notice.DS Europe shall not be liable for technical or editorial errors or omissions
contained herein, nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This manual contains
information protected by copyright. No part of this manual may be photocopied, or reproduced in any form, or translated without prior written consent
from DS Europe.
C:\DOCUME~1\marco\IMPOST~1\Temp\notesFFF692\ManualeEl646.V0.r1.UK.doc
Description
Version : V1r1.UK dated
10/01/07 Page: 1/3
e-mail:
info@s2tech.it
web:
www.s2tech.it
DS
Europe
LVDT
color code.
Red
Red
Yellow
Blue
Green
Black
Advertisement
Table of Contents
Summary of Contents for S2Tech EL646
- Page 1 Europe LVDT color code. + Output signal - Output signal + Vps power supply to EL646 card (12 or 24Vdc filtered and stabilized) - Vps power supply to EL646 card - Vps power supply to EL646 card Earth Power supply to LVDT primary...
- Page 2 It is advisable to ground the LVDT tube probe to reduce electrical noise. EL646 card: EL646 card has 4 fixing holes at its 4 corners for mechanical fixing on the customer’s machine. DS Europe can optionally provide the EL546 on DIN rail or in IP67 box for mechanical fixing.
- Page 3 Phone: +39 02 8910142 Fax: + 39 02 89124848 LEVEL trimmer setting: Level trimmer sets the sinusoidal Vac power supply magnitude that EL646 feeds to the primary coil of the connected LVDT: the higher the power supply on the primary coil, the higher the signal on the secondary coils.
