Summary of Contents for PNY Vibe 1GB

  • Page 2: Table Of Contents

    Contents Safety Precautions ... 3 Components ... 4 Components ... 4 Name of Each Part ... 5 Replacing the Battery ... 7 Connecting to the PC ... 8 Installing the VIBE Software ... 9 Using USB ... 12 Removing VIBE Safely ... 14 Formatting VIBE ...
  • Page 4: Components

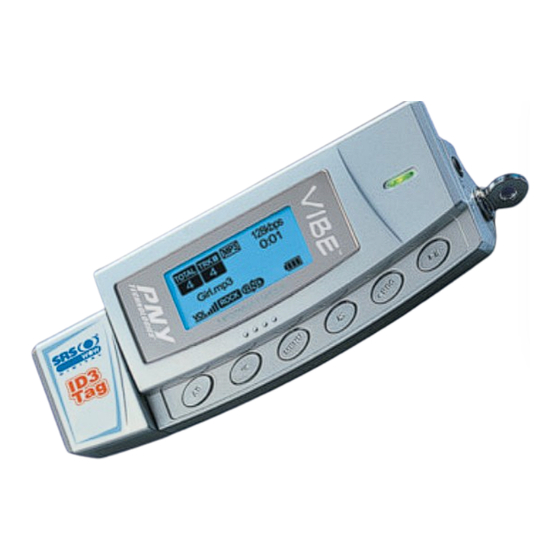

    Components Components VIBE Player Earphone/Necklace Installation CD One AAA Battery Manual USB Cable - 4 - Components Name of Each Part Front - 5 -...
  • Page 5: Replacing The Battery

    Components Side Back - 6 - Components Replacing the Battery Open the battery cover by pressing it down on the latch. Insert a new battery with the correct polarity as shown in the battery cavity. - 7 -...
  • Page 6: Connecting To The Pc

    Connecting to the PC • Minimum PC Specification • Pentium 133MHz or higher • Windows 98/ME/2000/XP • Hard Disk Memory more than 20MB • CD-ROM Drive • USB Port Please make sure your computer systems has the latest version of your Note operating system.
  • Page 7 Connecting to the PC If the user agrees to the privilege contract, click Yes button. Select the folder to install the program, and click Next button. - 10 - Connecting to the PC Please wait while the program is being installed. After installation is completed, click Finish button.
  • Page 8: Using Usb

    Connecting to the PC Using USB The VIBE software must be installed if you are using Windows 98. Remove battery pack from VIBE and connect VIBE to PC. (Use a USB cable when needed.) - 12 - Connecting to the PC This is recognized as a “portable disk”...
  • Page 9: Removing Vibe Safely

    Connecting to the PC Removing VIBE Safely For Windows ME/2000/XP Close all windows relating to VIBE. Click “Removing USB Drive” on the lower-left part. The message that the product is completely removed is displayed. Then disconnect VIBE from the PC. For Windows 98 Close all windows relating to VIBE.
  • Page 10: Using Vibe

    Using VIBE Before Using To use VIBE more efficiently, please keep the following in mind: For files except music files, make a “Data” folders and store non-music files there. To listen to music in order, insert digits in front of music files. (Insert “01.
  • Page 11: Button Functions

    Using VIBE VOICE REC SCREEN FM REC SCREEN Description Description Folder / File Type / Mark File Name, Tag-Info Replay List Volume Mode / Play Mode Current Frequency EQ / SRS WOW Total Channels Repeat Status Frequency Display Bar Battery Status Mono/Stereo Playing Mode / Number of Music Seek/Preset (P-set)
  • Page 12 Using VIBE • Voice Stop Mode Operation Short Long Button Section Repeat Open Folder / Close Folder Left Move Playlist Upward Menu Menu Screen Mode Screen Right Move Playlist Downward Record Recording / Stop Recording Play Play Power-off • Voice Play Mode Operation Short Long...
  • Page 13: Basic Functions

    Using VIBE Basic Functions Power-on Press Play button. Power-off Press Play button for 3 seconds. Change Mode Press and hold Menu button until this menu (Music/Voice/FM Mode) appears. Highlight desired mode using Left/Right button, then press Menu key. Adjusting Volume Press Volume buttons Lock Function Slide faceplate over keys and your VIBE is...
  • Page 14: Menu Setup

    Using VIBE station is stored, your VIBE will automatically change to the P-SET mode. Up to 16 Stations can be stored. Using P-SET Mode By using P-SET mode, the user can seek and listen to stored channels. Pressing Play button in FM SEEK mode will change the unit into P-SET mode.
  • Page 15 Using VIBE Marking File/Folder To mark file or folder, press Record button on the file/folder as shown below. Unmarked Marked Replay Type Description Replay Screen To replay all music files of VIBE To replay marked folders only To replay marked folders only Using SRS, WOW, TruBass and Equalizer Modes While track is playing, press the REC button to toggle between SRS, WOW, TruBass and Equalizer Modes.
  • Page 16 Using VIBE Setting User EQ You can use the User EQ to adjust frequency bandwidth according to your taste. User EQ of VIBE is classified into 5 frequency bandwidths. The user can adjust the frequency bandwidth from +10dB to -10dB. By using Menu button and Left/Right button, adjust to the desired frequency.
  • Page 17 Using VIBE Power Savings This mode powers off automatically when VIBE does not function. • When the user does not listen to music during the setting time (minutes), VIBE is automatically powers off. Sleep Timer Sleep Timer mode automatically powers off your VIBE after the setting time.
  • Page 18: Firmware Upgrade

    - 32 - Firmware Upgrade When a new firmware version is available on the PNY homepage or VIBE is not functioning properly, you may want to upgrade the VIBE firmware. To execute the Firmware Upgrade. Connect VIBE to the...
  • Page 19: Specifications

    Specifications Model VIBE-128/VIBE-256 Memory 128MB/256MB File Support MPEG 1/2/2.5 Layer 3 (8~ 320kbps, VBR), WMA (5~192kbps), ASF (audio only) Battery One AAA Battery (1.5V) Continuous Playing Time Approximately12 hours 128 X 64 (4Line) / EL Backlight Dimension 87 X 31 X 25.3 Weight Signal-to-Noise Ratio 90dB...
  • Page 20: Precautions

    Precautions Do not use vehicle or machinery while operating unit. Sudden shock to the unit may damage. Do not use unit in or around water. Exposing the product to the sunlight or heat-generating objects for an extended period may cause the unit to malfunction. Remove batteries if the unit will not be used for an extended period of time.
  • Page 21 Memo Memo - 38 - - 39 -...
  • Page 22 Memo - 40 -...
  • Page 23 PNY Technologies, Inc. 299 Webro Road. Parsippany, NJ 07054-0218...
