This Manual includes important Tool Safety warnings. Failure
to follow instructions may result in electrical shock, fire and/or
serious personal injury. This power tool is intended for chiseling
work in concrete, brick, masonry and asphalt, as well as for driv-
ing and compacting, when using corresponding and respective
accessories. This tool should be used only for its prescribed
purpose.
3450 N. SABIN BROWN ROAD • WICKENBURG, AZ 85390
www.bnproducts.com

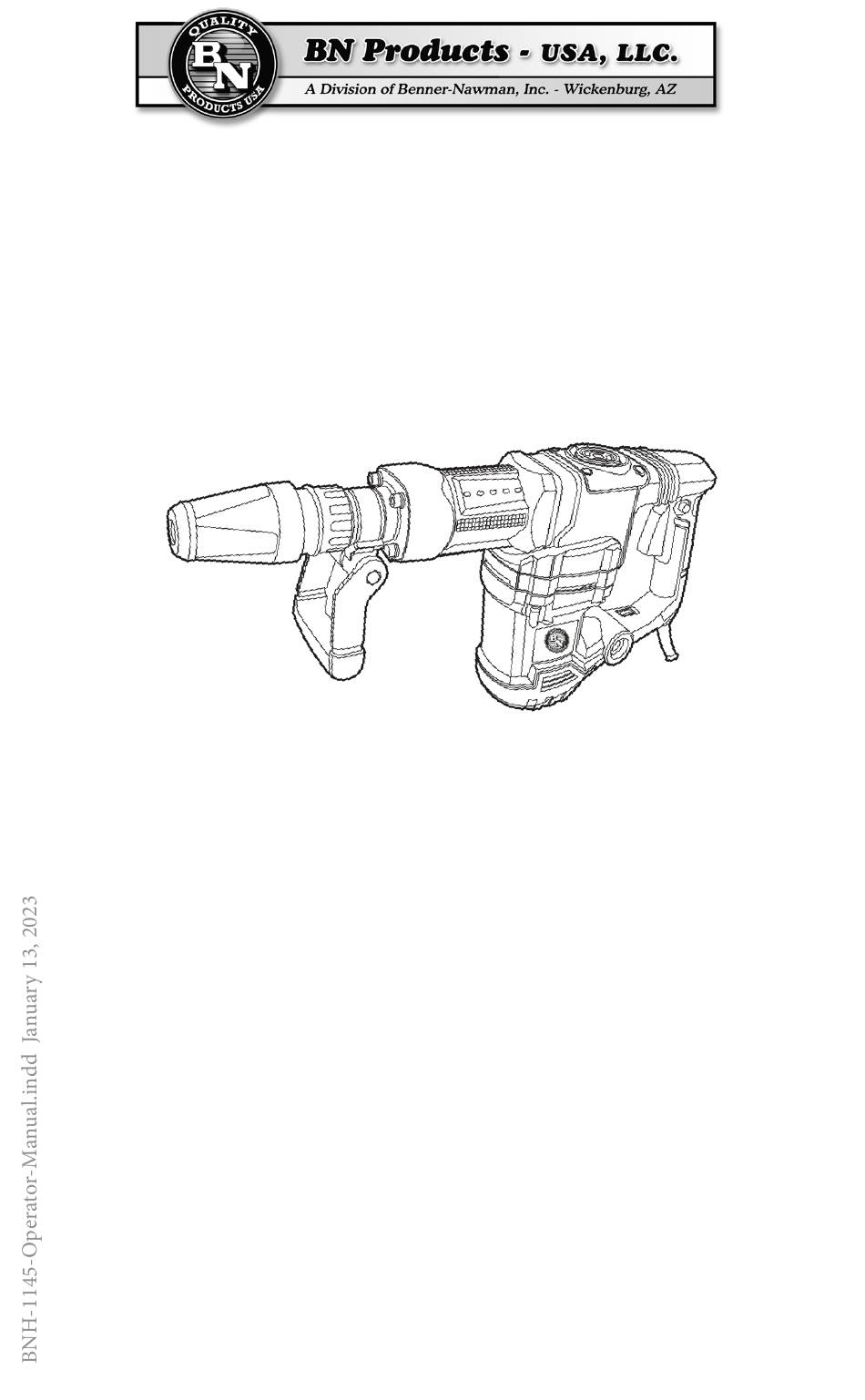

MODEL: BNH-1145
DEMOLITION HAMMER
OPERATOR MANUAL
Read this Operator Manual carefully
before operating this tool.
Any other use is deemed to be a case of misuse.
(800) 992-3833 • MAIL@BNPRODUCTS.COM
Page | 1
BN Products-USA
Advertisement
Table of Contents
Summary of Contents for BN Products BNH-1145
- Page 1 MODEL: BNH-1145 DEMOLITION HAMMER OPERATOR MANUAL Read this Operator Manual carefully before operating this tool. This Manual includes important Tool Safety warnings. Failure to follow instructions may result in electrical shock, fire and/or serious personal injury. This power tool is intended for chiseling...
-
Page 2: Work Area Safety
However, as a result of revisions and ongoing im- provements, the contents of this manual may vary slightly from the actual product. BN Products-USA, LLC. reserves the right to make revisions to the product and this manual at any time, without notice. -
Page 3: Personal Safety
If damaged, have the power tool repaired before use. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Page | 3 www.bnproducts.com BN Products-USA... -
Page 4: Vibration Safety
Have your power tool serviced by a qualified repair person using only genuine replacement parts. A parts guide is available for this tool at BNProducts.com. Contact BN Products-USA™ Customer Service at (800) 992-3833 if you need assis- tance from a qualified professional service department. - Page 5 Before using this tool, read the entire safety information section at the beginning of this manual. To prevent serious injury from accidental operation: Turn the Power Switch off, and unplug the tool from any electrical outlet before making any adjustments to this machine. Page | 5 www.bnproducts.com BN Products-USA...
-
Page 6: Installation
At the same time, slide the front of the chuck housing toward the main body of the tool. This will allow the bit to slide and lock into place when the chuck is released. Page | 6 www.bnproducts.com BN Products-USA... - Page 7 • Releasing the trigger will stop the hammer; to release, make sure that the lock button is extend- ed outward. If the lock button is engaged in the locked position, depress the trigger switch fully to release the trigger lock. www.bnproducts.com Page | 7 BN Products-USA...
-
Page 8: Speed Adjustment
1800 2100 12-Point Rotating Head (with variable lock) The BNH-1145 demolition hammer is equipped with a 12-point rotating head, which allows a worker to set an optimal working angle for each application or use of the tool. Insert the chisel into the SDS MAX chuck. Pull the SDS MAX chuck backward to- ward the main handle, and turn the chisel to the desired position using the rotating head ring. -
Page 9: Maintenance And Inspection
The black fan cover at the base of the tool will need to be removed. Remove the three (3) Phillips screws from the fan cover at the bottom of the tool. Page | 9 www.bnproducts.com BN Products-USA... - Page 10 These steps must be repeated on the tool’s opposite side replace both carbon brushes. One spare set of brushes are included with the tool. Contact BN Prod- ucts-USA™ Customer Service at (800) 992-3833 if you require assistance in pur- chasing additional replacement sets. Page | 10 www.bnproducts.com BN Products-USA...
- Page 11 NOTES __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ Page | 11 www.bnproducts.com BN Products-USA...
- Page 12 BN Products-USA, LLC. 34560 North Sabin Brown Road Wickenburg, AZ 85390 Customer Service: (800) 992-3833 Website: www.BNProducts.com Page | 12 BN Products-USA www.bnproducts.com...
