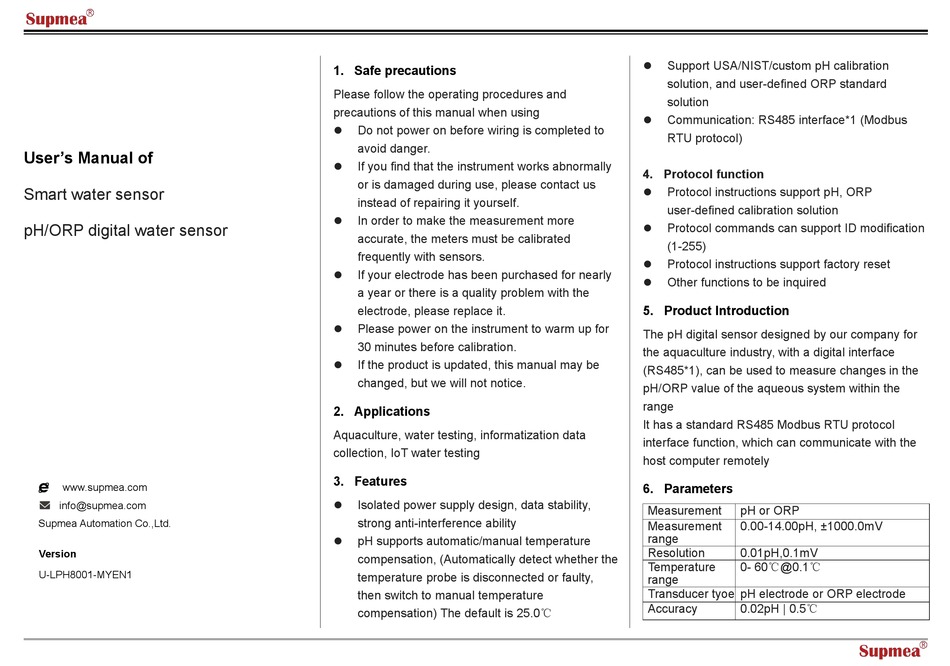

SUPMEA SUP-PH8001 User Manual

User's Manual of
Smart water sensor
pH/ORP digital water sensor
www.supmea.com
info@supmea.com
Supmea Automation Co.,Ltd.
Version
U-LPH8001-MYEN1

1. Safe precautions

Please follow the operating procedures and
precautions of this manual when using
Do not power on before wiring is completed to

avoid danger.
If you find that the instrument works abnormally

or is damaged during use, please contact us
instead of repairing it yourself.
In order to make the measurement more

accurate, the meters must be calibrated
frequently with sensors.
If your electrode has been purchased for nearly

a year or there is a quality problem with the
electrode, please replace it.
Please power on the instrument to warm up for

30 minutes before calibration.
If the product is updated, this manual may be

changed, but we will not notice.

2. Applications

Aquaculture, water testing, informatization data
collection, IoT water testing

3. Features

Isolated power supply design, data stability,

strong anti-interference ability
pH supports automatic/manual temperature

compensation, (Automatically detect whether the
temperature probe is disconnected or faulty,
then switch to manual temperature
compensation) The default is 25.0℃
Support USA/NIST/custom pH calibration

solution, and user-defined ORP standard
solution
Communication: RS485 interface*1 (Modbus

RTU protocol)

4. Protocol function

Protocol instructions support pH, ORP

user-defined calibration solution
Protocol commands can support ID modification

(1-255)
Protocol instructions support factory reset

Other functions to be inquired


5. Product Introduction

The pH digital sensor designed by our company for
the aquaculture industry, with a digital interface
(RS485*1), can be used to measure changes in the
pH/ORP value of the aqueous system within the
range
It has a standard RS485 Modbus RTU protocol
interface function, which can communicate with the
host computer remotely

6. Parameters

Measurement pH or ORP
Measurement 0.00-14.00pH, ±1000.0mV
range
Resolution 0.01pH,0.1mV
Temperature 0- 60℃@0.1℃
range
Transducer tyoe pH electrode or ORP electrode
Accuracy 0.02pH | 0.5℃
