Summary of Contents for La Crosse Technology 513-1417CHv2

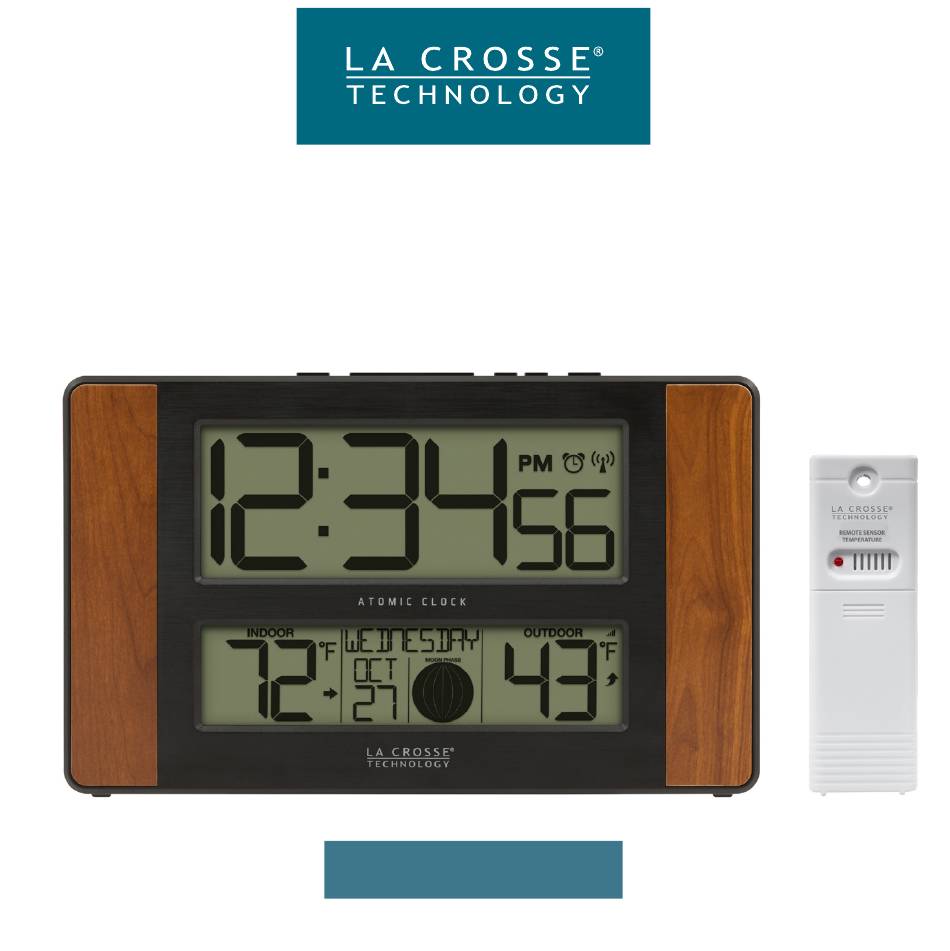

- Page 1 Atomic Digital Wall Clock SET UP GUIDE MODEL: 513-1417CHv2...
-
Page 2: Atomic Time Signal
View our sensor mounting video here: bit.ly/th_sensor_mounting Outdoor Sensor Atomic Clock TX141-B 513-1417CHv2 (all versions) Atomic Time Signal • The clock will search for the Atomic Time Signal at power up and at UTC 7:00, 8:00, 9:00, 10:00, and 11:00. -
Page 3: Settings Menu
SETTINGS MENU Hold the button until the display changes to enter the Settings Menu. Press and release the buttons to adjust values. Hold to adjust quickly. Press and release the button to confirm values and move to the next setting. Press and releas the SNOOZE button at any time to exit. -
Page 4: Time Alarm
TIME ALARM Set Alarm: Hold the ALARM button to enter alarm setting mode. ALARM will show and the hour will flash. Press and release the buttons to choose the hour. Press and release the ALARM to confirm and move to the minutes. The minutes will flash. -
Page 5: Moon Phase
MOON PHASE The moon phase is based on the Lunar Calendar and the year, month, and date settings. New Moon Small Waxing Large Waxing First Quarter Small Waxing Large Waxing Crescent Crescent Gibbous Gibbous Last Quarter Full Moon Large Waning Small Waning Large Waning Small Waning... - Page 6 TEMPERATURE TREND ARROWS Both the Indoor and Outdoor Temperature values have Trend Arrows to indicate changes (1°C / 2°F or more) over the past three hour period. Temperature has risen over the past three hours. Temperature has been steady over the past three hours. Temperature has fallen over the past three hours.
-
Page 7: We're Here To Help
Stay in Touch! Ask questions, watch setup videos, and provide feedback on our social media outlets. Follow La Crosse Technology on YouTube, Twitter, Facebook and Instagram. CA WARNING: This product can expose you to chemicals including acrylonitrile, butadiene, and styrene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. -
Page 8: Specifications
SPECIFICATIONS Outdoor Sensor (TX141-B (all versions)) Temperature Range: -40°F to 140°F (-40°C to 60°C) Atomic Clock (513-1417v2) Transmission Range: Over 330 ft. open air Temperature Range: 32°F to 122°F (0°C to 50°C) (100 meters) RF 433MHz Update Interval: Update Interval: About every 51 seconds About every 51 seconds Power:... -
Page 9: Warranty & Patents
Warranty & Patents FCC Statment La Crosse Technology, Ltd. provides a 1-year This equipment has been tested and found to comply with limited time warranty (from date of purchase) on the limits for a Class B digital device, pursuant to part 15 this product relating to manufacturing defects in of the FCC Rules. - Page 10 DOUBLE YOUR WARRANTY Scan Here Scan the QR Code or visit: bit.ly/513-1417chv2_register to register your product and double the standard 1-year warranty for free by opting to recieve occasional product emails.
